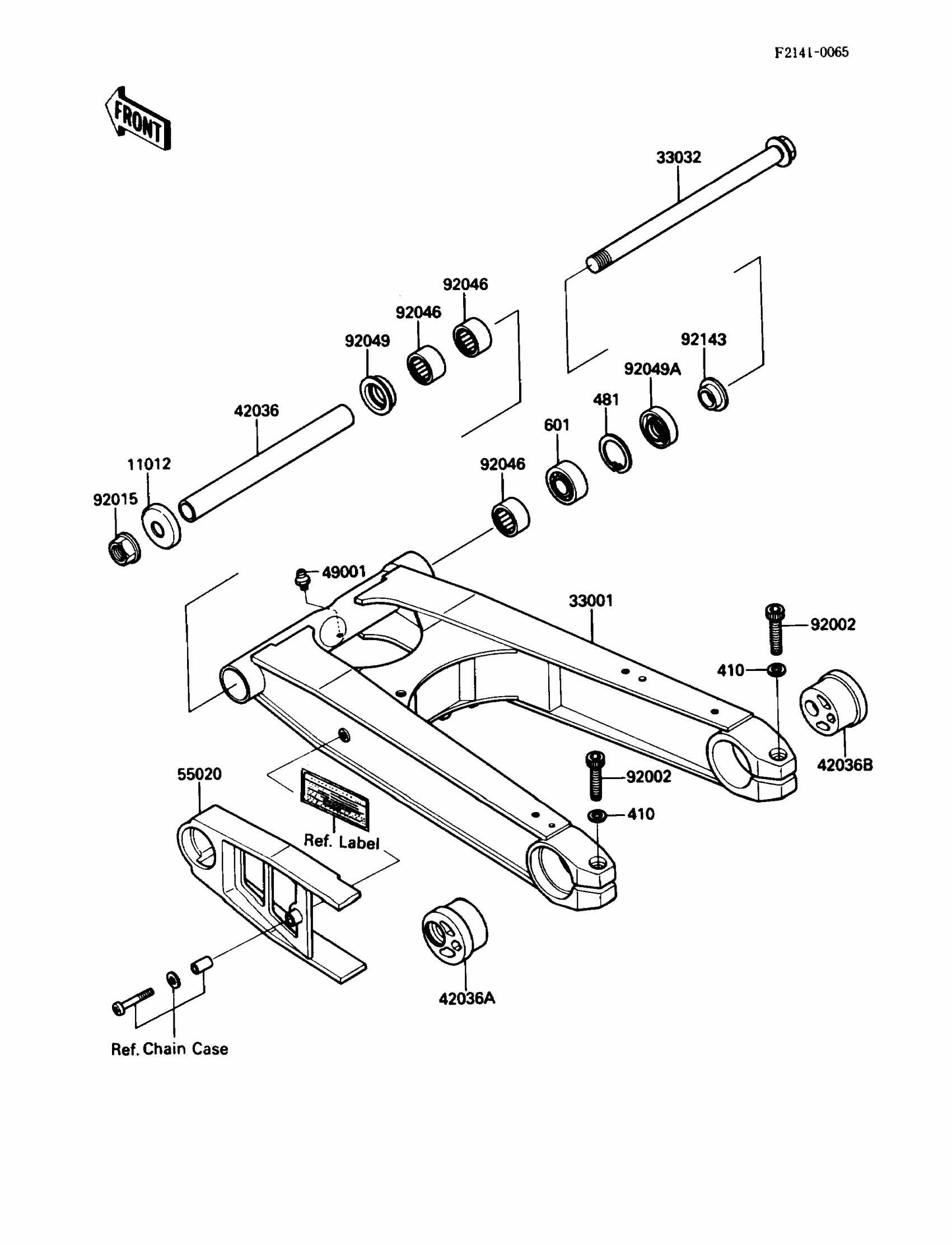

Kawasaki Ninja® ZX™-10 Swingarm Diagram

Description

Price

410

W-PLAIN-S

410E1000

$0.59

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16

601

BEARING-BALL,#6004

601A6004

$11.91

11012

CAP

11012-1658

$8.68

33001

ARM-COMP-SWING,SILVER NO.25

33001-1317-CE

$576.15

33032

SHAFT-SWING ARM

33032-1142

$105.01

42036

SLEEVE,SWING ARM,L=227.2

42036-1236

Unavailable

42036A

SLEEVE,REAR AXLE,LH

42036-1237

$78.66

42036B

SLEEVE,REAR AXLE,RH

42036-1238

$86.13

49001

NIPPLE-GREASE

49001-1051

$3.02

55020

GUARD,CHAIN

55020-1307

Unavailable

92002

BOLT,SOCKET,10X40

92002-1452

$7.22

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92143

COLLAR,SWING ARM,L=12.5

92143-1227

$8.97
