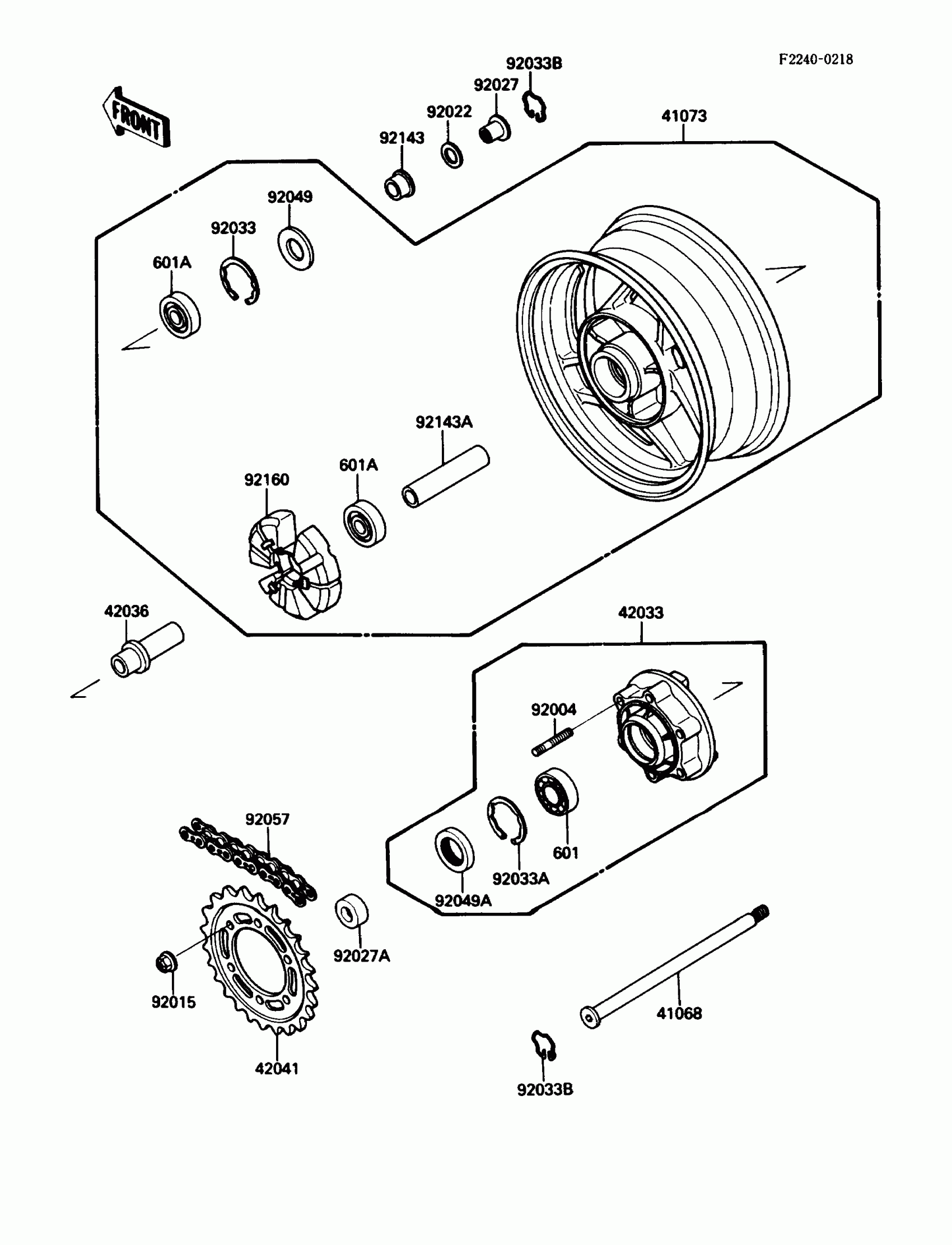

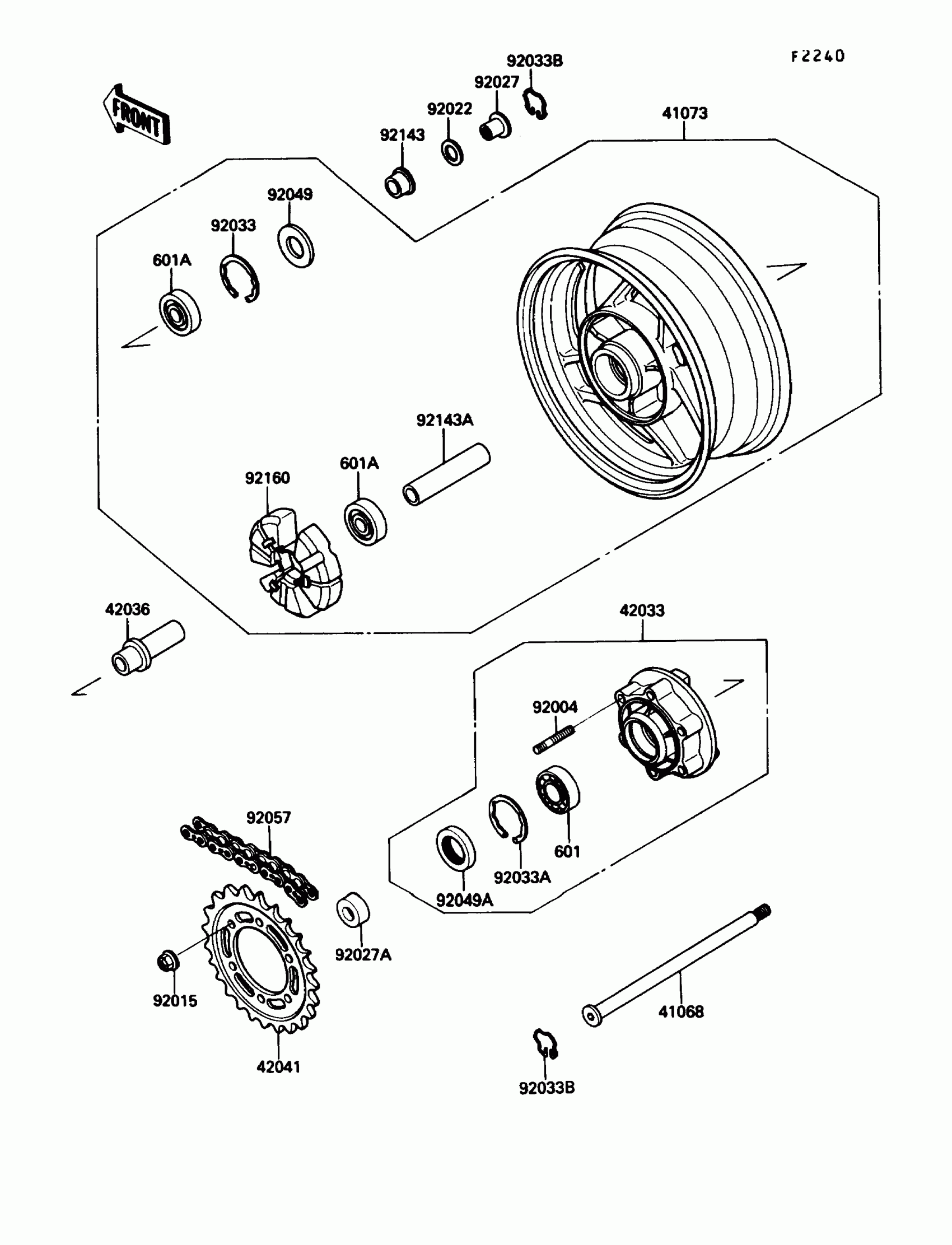

Kawasaki Ninja® ZX™-10 Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-1256

Unavailable

41073

WHEEL-ASSY,RR,SILVER NO.1

41073-1421-CX

$699.68

42033

COUPLING-ASSY,RR HUB,M.SILVER

42033-1133-7J

$365.19

42036

SLEEVE,RR AXLE,L=62

42036-1229

Unavailable

42041

SPROCKET-HUB,45T

42041-1306

$117.66

92004

STUD,10X24

92004-1146

$5.60

92015

NUT,10MM

92015-1720

$5.24

92022

WASHER,23X32X2.3

92022-1618

$6.22

92027

COLLAR,RR AXLE,L=28

92027-1810

$32.00

92027A

COLLAR,RR AXLE,L=20.5

92027-1884

$33.67

92033

RING-SNAP,52MM

92033-1043

$8.05

92033A

RING-SNAP,62MM

92033-1044

$11.29

92033B

RING-SNAP,RR AXLE

92033-1156

$4.96

92049

SEAL-OIL,28X52X5

92049-1061

$19.15

92049A

SEAL-OIL,AJN40627

92050-027

$20.96

92057

CHAIN,DRIVE,EK532ZV-OX110L

92057-1259

Unavailable

92143

COLLAR,L=23

92143-1042

$37.73

92143A

COLLAR,20.2X29X89

92143-1199

Unavailable

92160

DAMPER,SHOCK,RR HUB

92160-1051

Unavailable

601

BEARING-BALL,#6206UUC3

601B6206UU

$40.38

601A

BEARING-BALL,#6304UUC3

601B6304UU

$34.48
