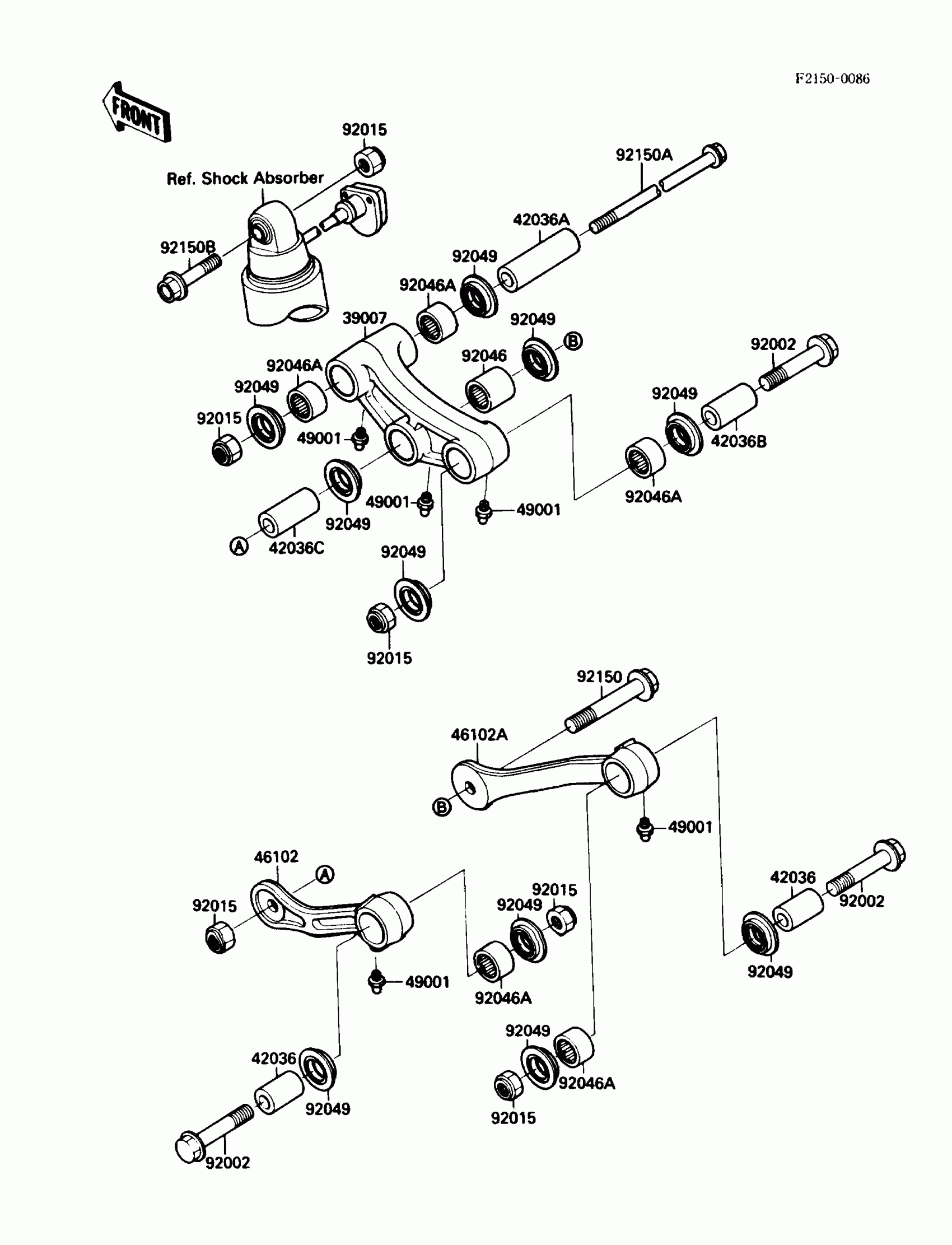

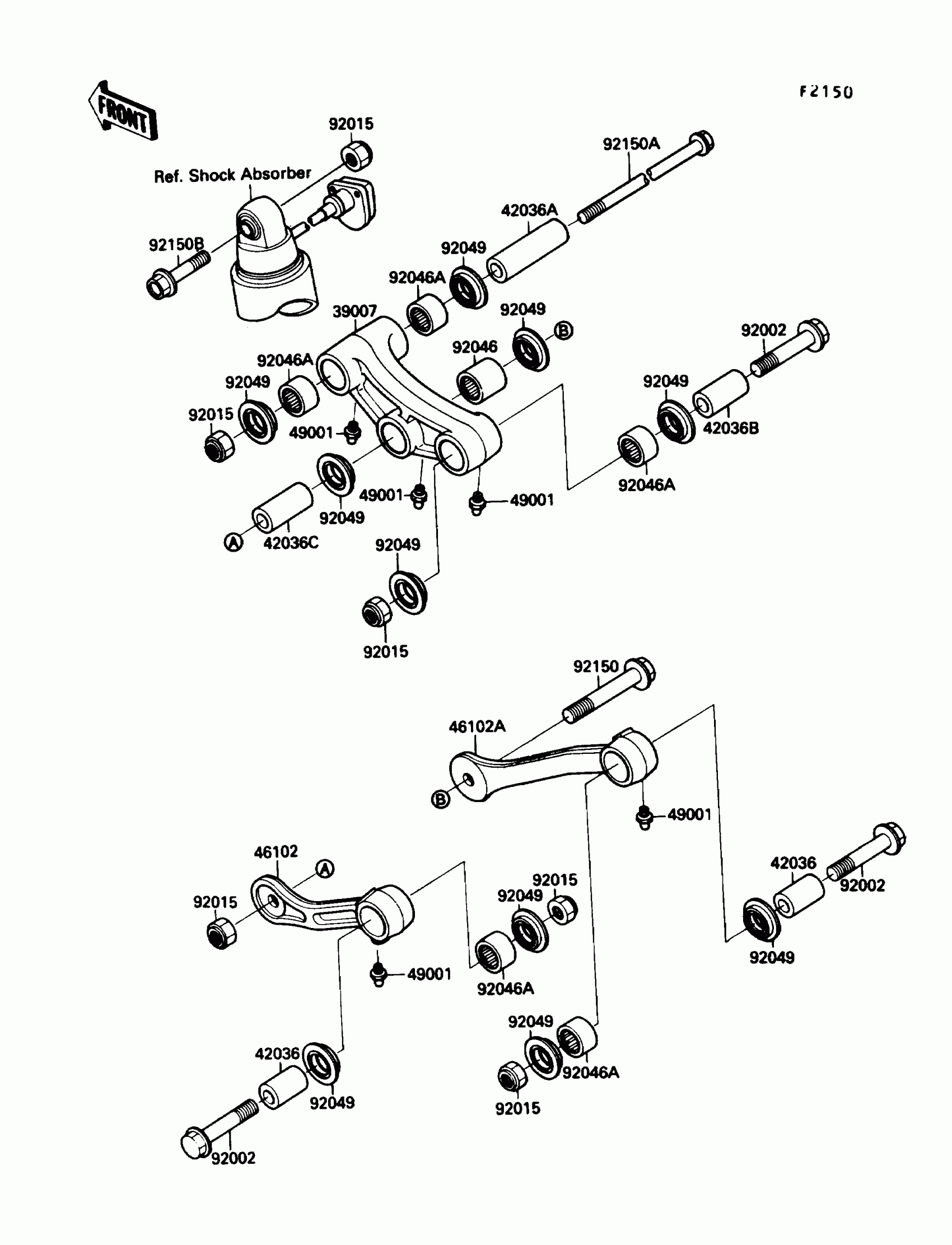

Kawasaki Ninja® ZX™-10 Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1107

Unavailable

42036

SLEEVE,12.1X20X32

42036-1077

$16.69

42036A

SLEEVE,12.1X20X70

42036-1079

$28.64

42036B

SLEEVE,12.1X20X40

42036-1108

$21.74

42036C

SLEEVE,12.1X20X44

42036-1129

Unavailable

46102

ROD,SUSPENSION,LH

46102-1248

$133.26

46102A

ROD,SUSPENSION,RH

46102-1249

$142.20

49001

NIPPLE-GREASE

49001-1051

$3.02

92002

BOLT,FLANGED,12X60

92002-1464

$12.76

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.34

92046

BEARING-NEEDLE,BM202726

92046-1110

$23.45

92046A

BEARING-NEEDLE,BM202715

92046-1112

$20.89

92049

SEAL-OIL,ARM

92049-1109

$9.28

92150

BOLT,FLANGED,12X70

92150-1115

Unavailable

92150A

BOLT,FLANGED,12X165

92150-1116

$24.03

92150B

BOLT,FLANGED,12X55

92150-1191

$11.10
