Rear Brake

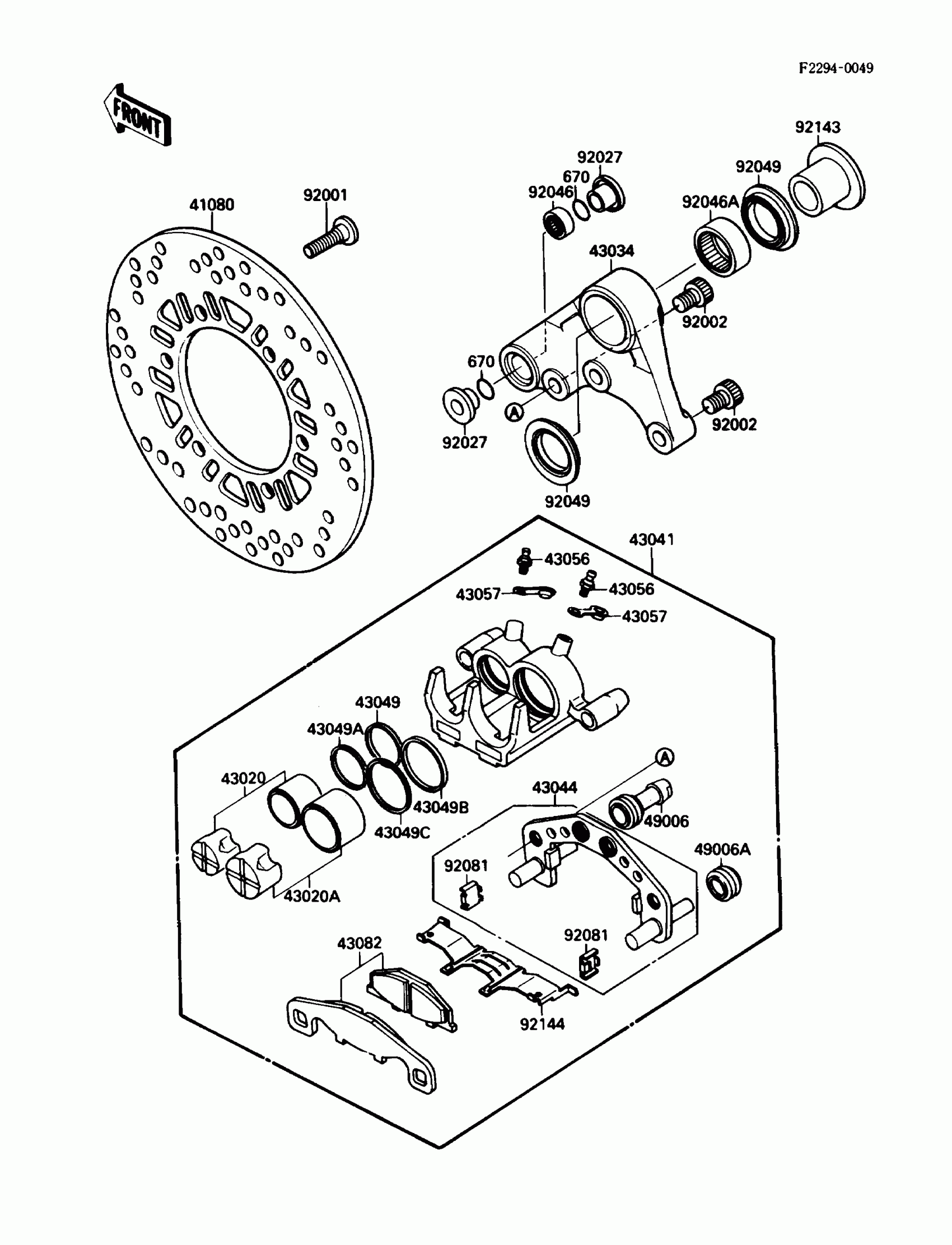

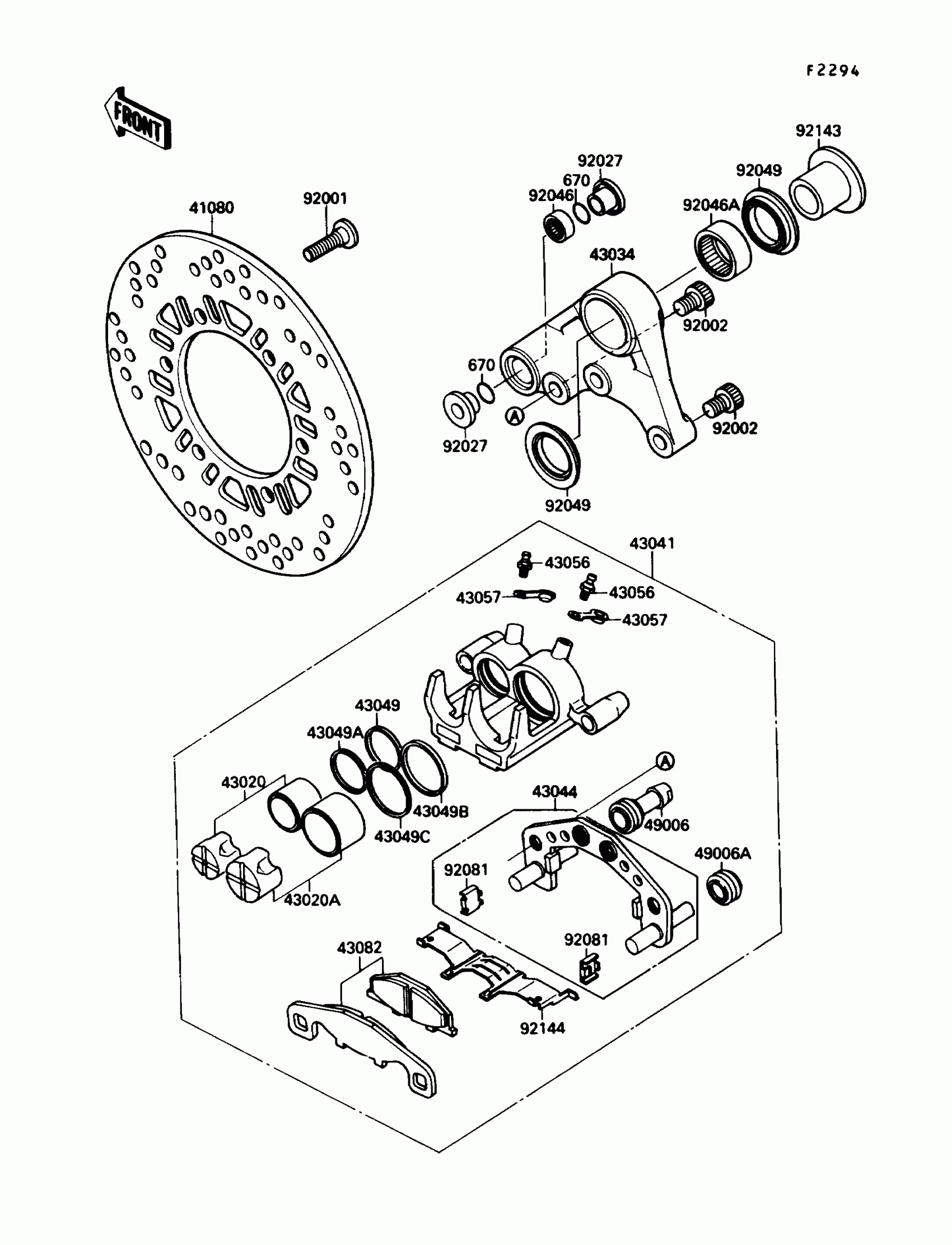

Kawasaki Ninja® ZX™-10 Rear Brake Diagram
#
Description
Price
41080
DISC,RR,SILVER NO.1
41080-1219-CM
Unavailable
43020
PISTON-COMP-BRAKE
43020-1068
$72.80
43020A
PISTON-COMP-BRAKE
43020-1069
$72.80
43034
HOLDER-BRAKE,REAR CALIPER,SIL
43034-1090-CE
$164.62
43041
CALIPER-ASSY,RR,BLACK
43041-1261-DJ
$370.06
43044
HOLDER-COMP-CALIPER
43044-1067
$158.69
43049
PACKING,PISTON SEAL
43049-1054
$12.42
43049A
PACKING,PISTON
43049-1055
$11.29
43049B
PACKING,PISTON SEAL
43049-1056
$13.10
43049C
PACKING,PISTON
43049-1057
$12.65
43056
BREATHER
43056-003
$24.57
43057
CAP-BREATHER
43057-003
$2.45
43082
PAD-ASSY-BRAKE
43082-1088
$66.14
49006
BOOT,CALIPER
49006-1094
$12.23
49006A
BOOT,CALIPER
49006-1095
$7.27
92001
BOLT,DISC PLATE,8X30
92001-1951
$4.69
92002
BOLT,SOCKET,10X17
92002-1713
$7.34
92027
COLLAR,L=11.5
92027-1040
Unavailable
92046
BEARING-NEEDLE,HK1216LL
92046-1009
$18.45
92046A
BEARING-NEEDLE,BM2817
92046-1111
$21.86
92049
SEAL-OIL,28X34X5.7
92049-1181
$9.28
92081
SPRING,PAD STOPPER
92081-1661
$11.80
92143
COLLAR,L=35
92143-1043
$40.87
92144
SPRING,PAD
92144-1070
$29.85
670
O RING,11MM
670B2011
$1.28
