Description

Price

41080

DISC,FR,LH,SILVER NO.1

41080-1217-CM

$539.18

41080A

DISC,FR,RH,SILVER NO.1

41080-1218-CM

$539.18

43020

PISTON-COMP-BRAKE

43020-1068

$72.80

43020A

PISTON-COMP-BRAKE

43020-1069

$72.80

43041

CALIPER-ASSY,FR,LH,BLACK

43041-1266-DJ

$520.97

43041A

CALIPER-ASSY,FR,RH,BLACK

43041-1267-DJ

$593.20

43044

HOLDER-COMP-CALIPER

43044-1067

$158.69

43049

PACKING,PISTON SEAL

43049-1054

$12.42

43049A

PACKING,PISTON

43049-1055

$11.29

43049B

PACKING,PISTON SEAL

43049-1056

$13.10

43049C

PACKING,PISTON

43049-1057

$12.65

43056

BREATHER

43056-003

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1068

$66.14

49006

BOOT,CALIPER

49006-1094

$12.23

49006A

BOOT,CALIPER

49006-1095

$7.27

92022

WASHER,SPRING,T=0.3

92022-1943

$5.93

92081

SPRING,PAD STOPPER

92081-1661

$11.80

92144

SPRING,PAD

92144-1070

$29.85

92150

BOLT,DISC PLATE,10X30

92150-1118

Unavailable

92150A

BOLT,SOCKET,10X33

92150-1175

Unavailable

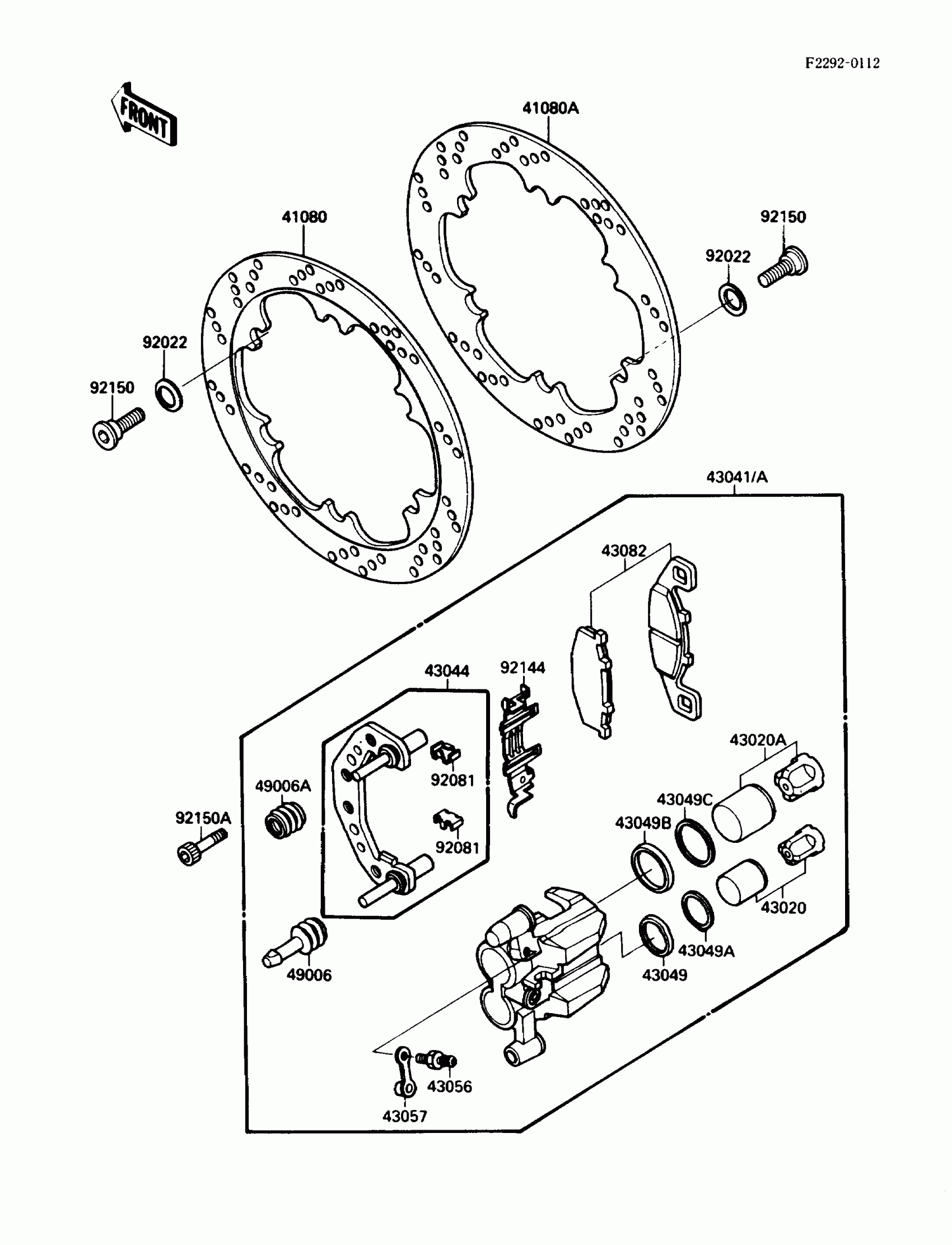

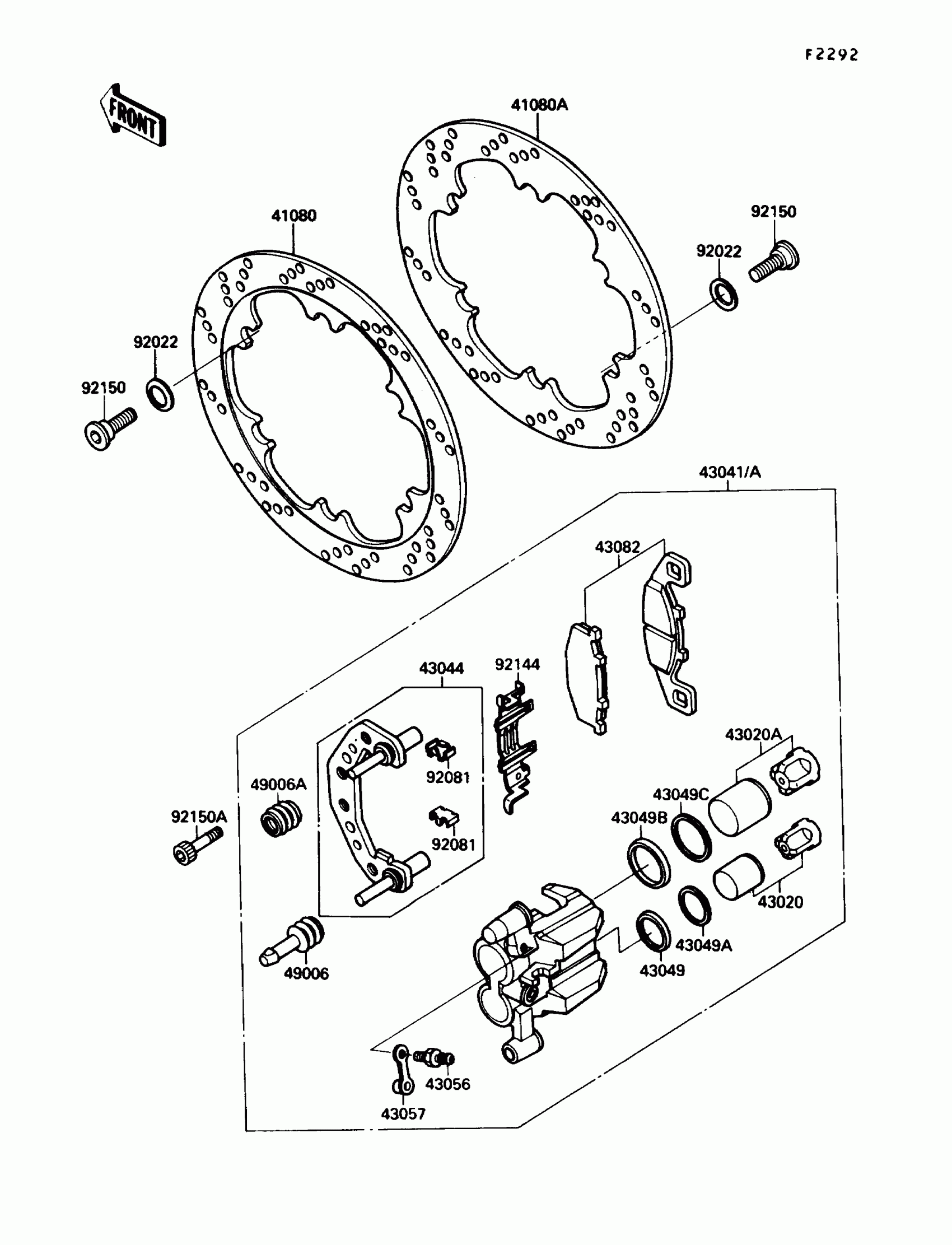

Kawasaki Ninja® ZX™-10 Front Brake Diagram

DISC,FR,LH,SILVER NO.1

DISC,FR,RH,SILVER NO.1

PISTON-COMP-BRAKE

PISTON-COMP-BRAKE

CALIPER-ASSY,FR,LH,BLACK

CALIPER-ASSY,FR,RH,BLACK

HOLDER-COMP-CALIPER

PACKING,PISTON SEAL

PACKING,PISTON

PACKING,PISTON SEAL

PACKING,PISTON

BREATHER

CAP-BREATHER

PAD-ASSY-BRAKE

BOOT,CALIPER

BOOT,CALIPER

WASHER,SPRING,T=0.3

SPRING,PAD STOPPER

SPRING,PAD

BOLT,DISC PLATE,10X30

BOLT,SOCKET,10X33
