Description

Price

12046

SPROCKET,21T

12046-1084

$70.33

13031

CRANKSHAFT-COMP

13031-1272

Unavailable

13251

ROD-ASSY-CONNECTING,K

13251-1085-KK

Unavailable

13251A

ROD-ASSY-CONNECTING,L

13251-1085-LL

Unavailable

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92022

WASHER,8.5X36X4

92022-1633

$9.53

92028

BUSHING,CRANKSHAFT,BLUE

92028-1100

Unavailable

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1101

Unavailable

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1102

Unavailable

92028C

BUSHING,CRANKSHAFT,BLUE

92028-1272

Unavailable

92028D

BUSHING,CRANKSHAFT,BLACK

92028-1273

Unavailable

92028E

BUSHING,CRANKSHAFT,BROWN

92028-1274

Unavailable

92028F

BUSHING,CONNECTING ROD BLUE

92028-1407

Unavailable

92028G

BUSHING,CONNECTING ROD BLACK

92028-1408

Unavailable

92028H

BUSHING,CONNECTING ROD,WHITE

92028-1547

Unavailable

92057

CHAIN,GENERATOR

92057-1209

$68.42

92150

BOLT,CONNECTING ROD,8MM

92150-1216

$17.60

130

BOLT-FLANGED,8X25

130G0825

$2.89

555

PIN-SPRING

555A0410

$3.16

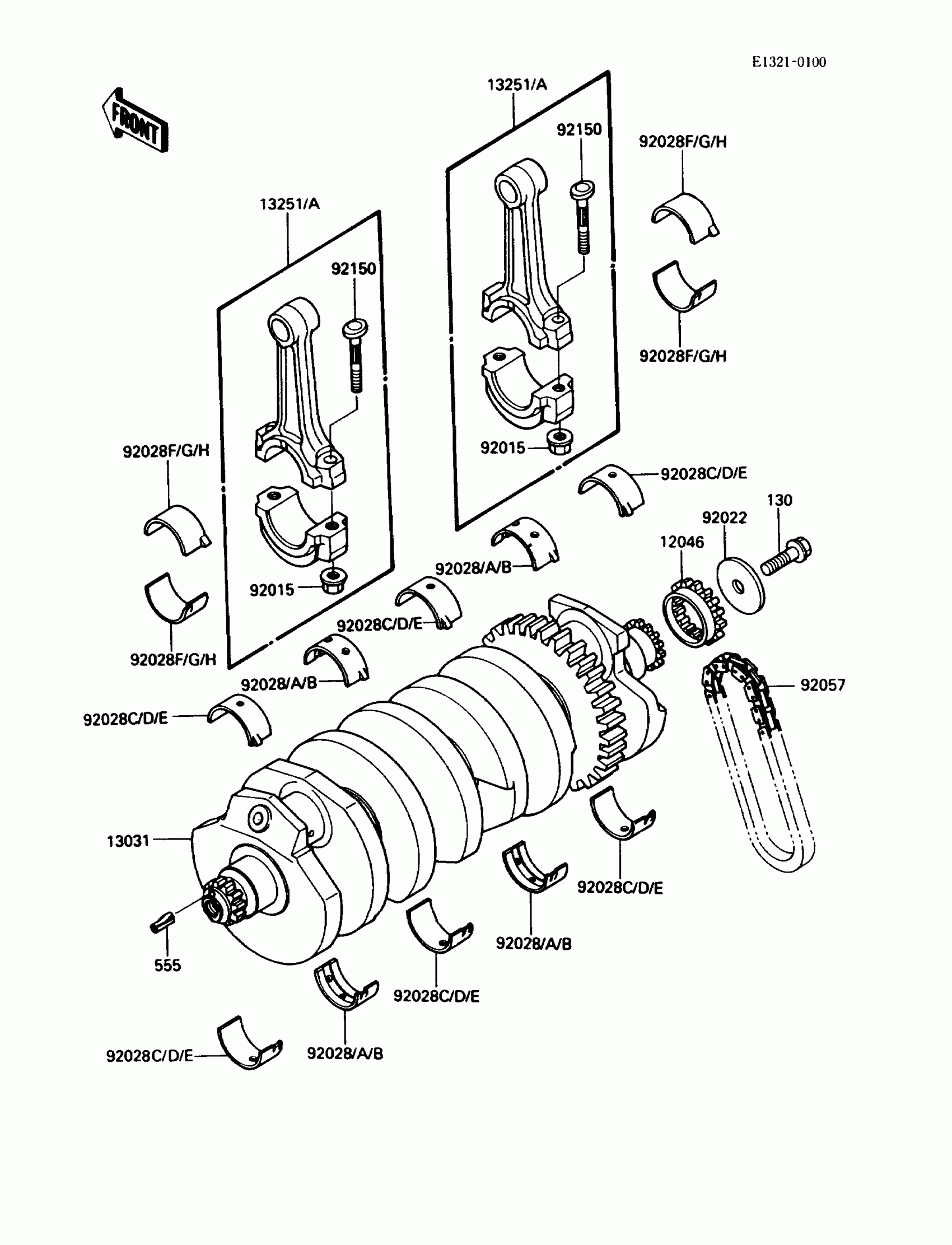

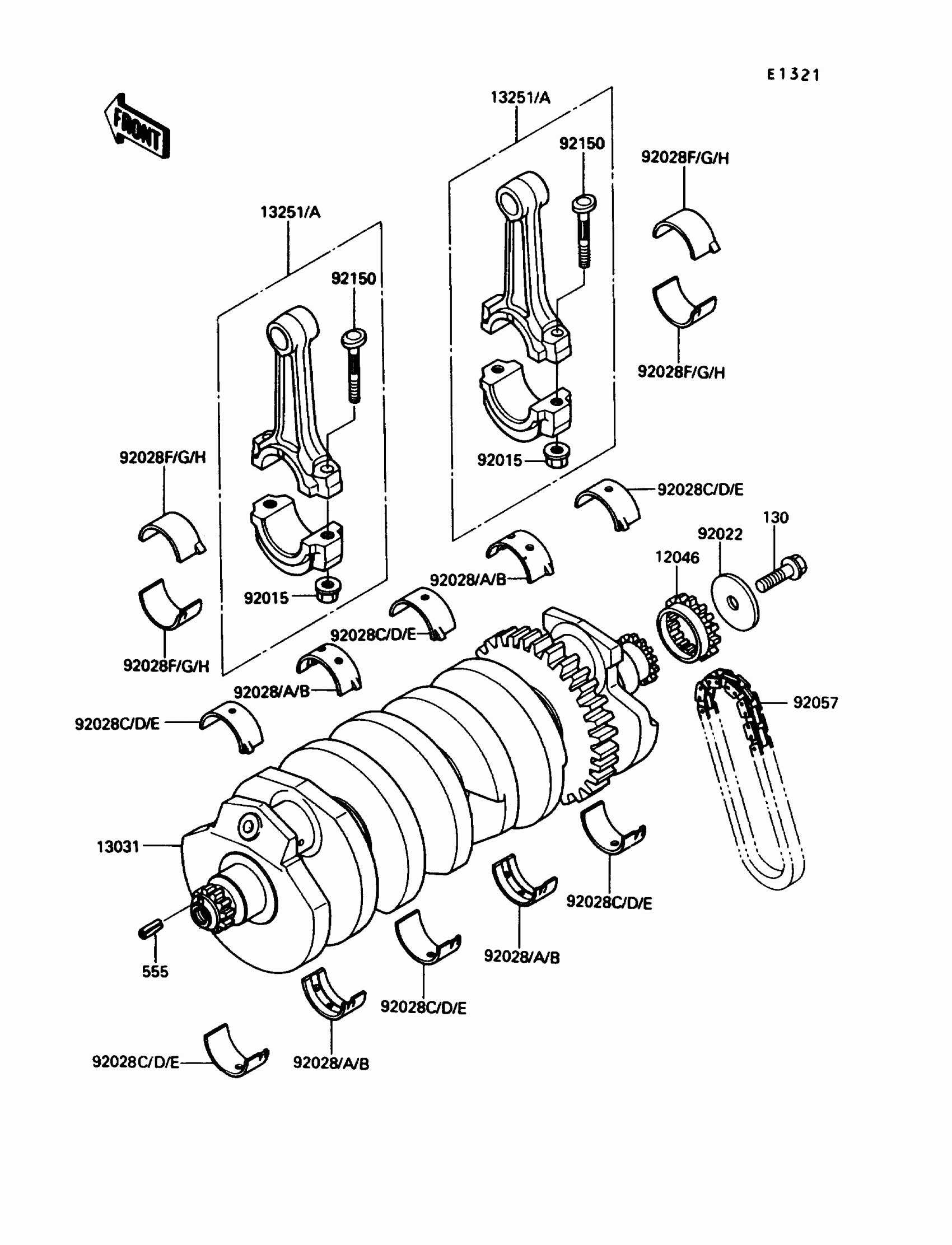

Kawasaki Ninja® ZX™-10 Crankshaft Diagram

SPROCKET,21T

CRANKSHAFT-COMP

ROD-ASSY-CONNECTING,K

ROD-ASSY-CONNECTING,L

NUT,FLANGED,8MM

WASHER,8.5X36X4

BUSHING,CRANKSHAFT,BLUE

BUSHING,CRANKSHAFT,BLACK

BUSHING,CRANKSHAFT,BROWN

BUSHING,CRANKSHAFT,BLUE

BUSHING,CRANKSHAFT,BLACK

BUSHING,CRANKSHAFT,BROWN

BUSHING,CONNECTING ROD BLUE

BUSHING,CONNECTING ROD BLACK

BUSHING,CONNECTING ROD,WHITE

CHAIN,GENERATOR

BOLT,CONNECTING ROD,8MM

BOLT-FLANGED,8X25

PIN-SPRING
