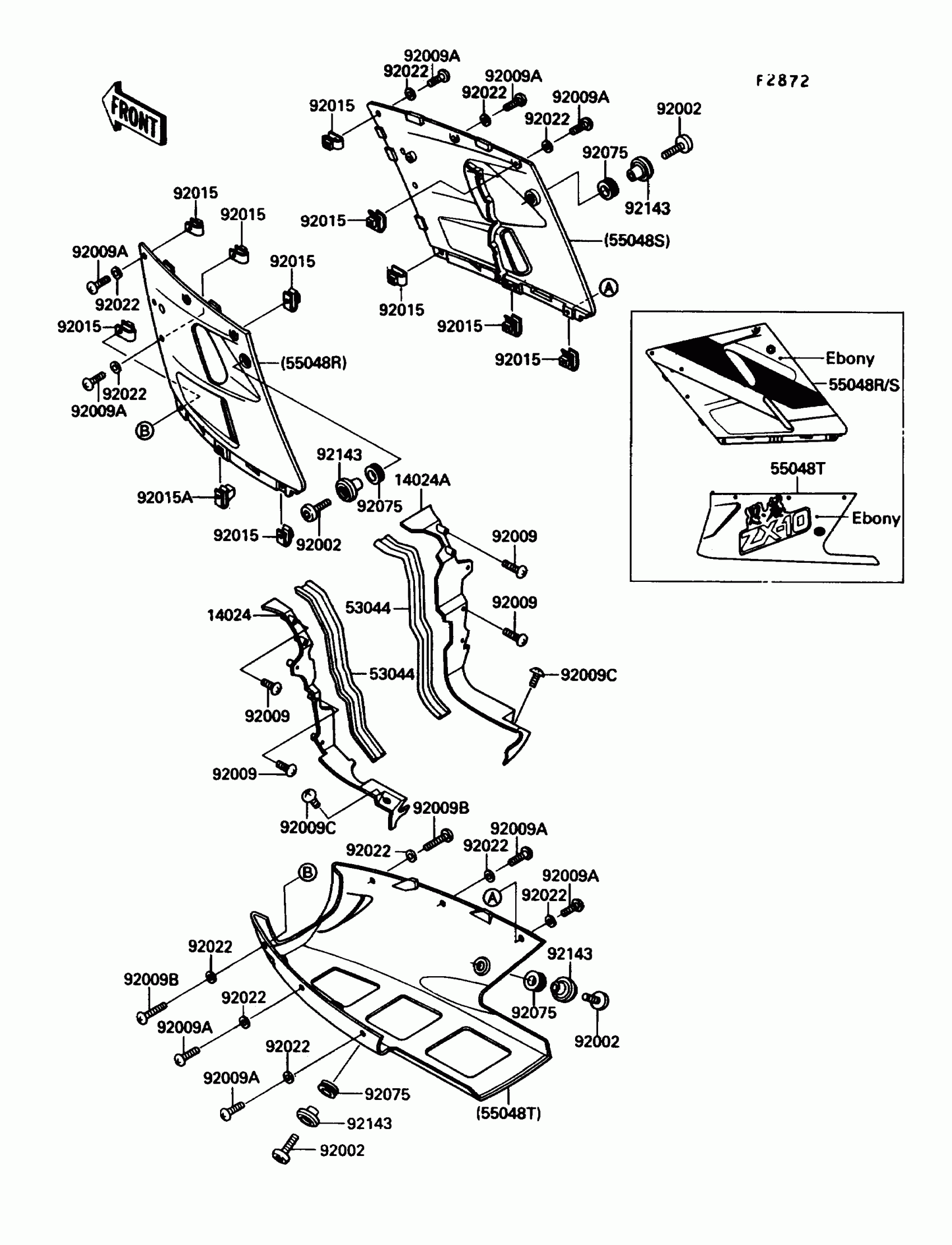

Kawasaki Ninja® ZX™-10 Cowling Lowers Diagram

Description

Price

14024

COVER,HEAT GUARD,LH

14024-1652

Unavailable

14024A

COVER,HEAT GUARD,RH

14024-1653

Unavailable

53044

TRIM,L=460

53044-1204

Unavailable

55048B

COWLING.,SIDE,LH,EBONY/GRAY

55048-5019-T4

$586.79

55048C

COWLING.,SIDE,RH,EBONY/GRAY

55048-5020-T4

$586.19

55048D

COWLING.,LWR,P.C.GRAY

55048-5021-T2

$507.99

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$6.22

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92009A

SCREW,5X16,BLACK

92009-1301

$3.13

92009B

SCREW,5X20,BLACK

92009-1453

$3.96

92009C

SCREW,6X10

92009-1530

$3.92

92015

NUT,5MM

92015-1710

$6.22

92015A

NUT,5MM

92015-1751

Unavailable

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92075

DAMPER

92075-1634

$4.69

92143

COLLAR,BLACK

92143-1226

$11.49
