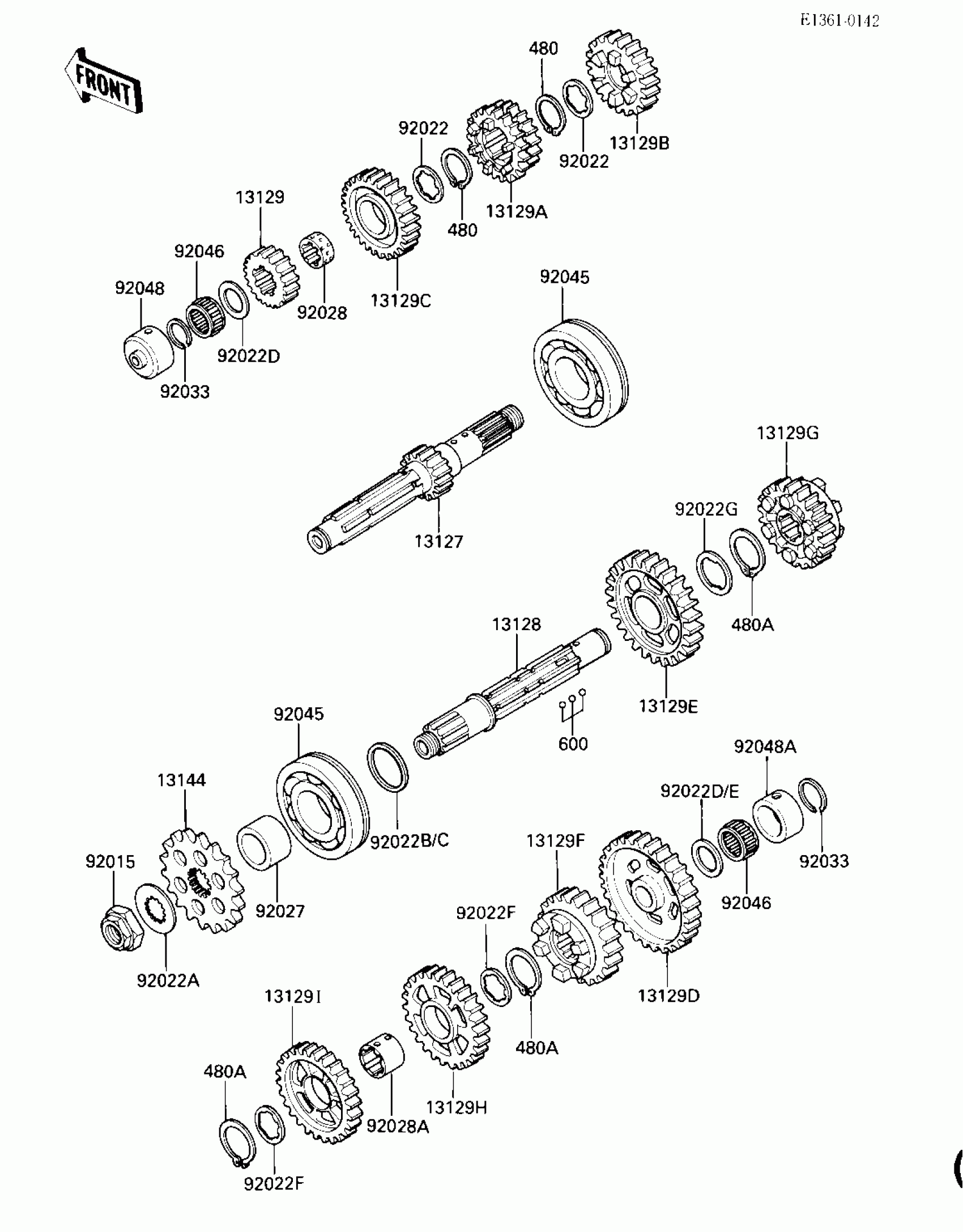

Kawasaki Ninja® TRANSMISSION (E/NO.043004 -) Diagram
#
13127
SHAFT-TRANSMISSION IN
13127-1108
Unavailable
13128
SHAFT-TRANSMISSION OUTPUT
13128-1113
Unavailable
13129
GEAR,INPUT 2ND,19T
13129-1530
Unavailable
13129A
GEAR,INPUT 3RD&4TH,22
13129-1531
Unavailable
13129B
GEAR,INPUT 5TH,26T
13129-1532
Unavailable
13129C
GEAR,INPUT TOP,28T
13129-1533
Unavailable
13129D
GEAR,OUTPUT LOW,42T
13129-1534
$227.28
13129E
GEAR,OUTPUT 2ND,38T
13129-1535
Unavailable
13129F
GEAR,OUTPUT 5TH,30T
13129-1538
Unavailable
13129G
GEAR,OUTPUT TOP,29T
13129-1539
Unavailable
13129H
GEAR,OUTPUT 3RD,35T
13129-1773
Unavailable
13129I
GEAR,OUTPUT 4TH,32T
13129-1774
Unavailable
13144
SPROCKET-OUTPUT,17T
13144-1106
$53.69
92015
NUT,20MM
92015-1210
$18.81
92022
WASHER,TOOTHED,26X35.5X1.5
92022-1077
$11.07
92022A
WASHER
92200-1060
$6.07
92022B
WASHER,28.3X34X0.5
92022-1572
Unavailable
92022C
WASHER,28.3X34X0.3
92022-1626
Unavailable
92022D
WASHER,22.3X35X1.6
92022-212
$9.91
92022E
WASHER,22.3X35X1.2
92022-213
Unavailable
92022F
WASHER,TOOTHED,30.3X40X1.5
92024-043
$13.07
92022G
WASHER,TOOTHED,30.5X38X1
92024-069
$6.15
92027
COLLAR
92143-1431
$26.90
92028
BUSHING,TOP GEAR
92028-1124
$45.48
92028A
BUSHING,OUTPUT 3RD&4TH
92028-1363
$45.49
92033
RING-SNAP,20X25.5X1.2
92033-025
$4.96
92045
BEARING-BALL
92045-1186
$64.88
92046
BEARING-NEEDLE,FWF-223014
92046-031
$19.72
92048
RACE,INPUT SHAFT
92048-1052
$55.84
92048A
RACE,30X38X15
92048-1053
$28.71
480
CIRCLIP-TYPE-C,28MM
480J2800
$4.70
480A
CIRCLIP
480J2900
$6.22
600
BALL-STEEL,5/32
600A0500
$0.81
