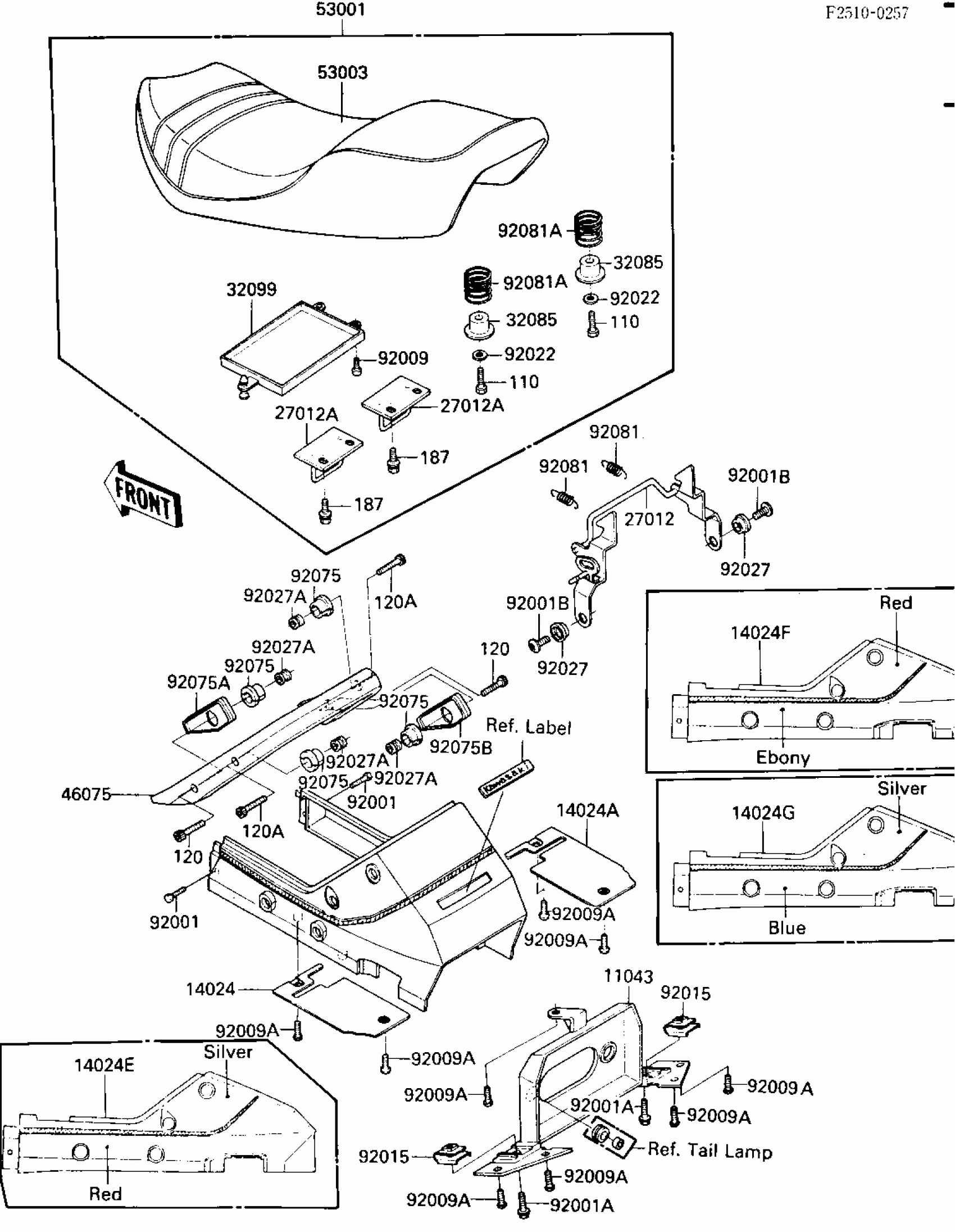

Kawasaki Ninja® SEAT/SEAT COVER (ZX900-A2) Diagram
#
Description
Price
11043
BRACKET,TAIL LAMP
11043-1458
Unavailable
14024
BRACKET,TAIL LAMP
11043-1458
Unavailable
14024A
COVER
14025-1889
Unavailable
14024E
COVER,SEAT,F.RED/G.S1
14025-5183-M7
Unavailable
14024F
COVER,SEAT,EBONY/F.RE
14025-5191-J3
Unavailable
14024G
COVER,SEAT,L.P.BLUE/G.SIL (Can
14025-5199-L8
Unavailable
27012
HOOK,SEAT LOCK
27012-1321
$52.03
27012A
HOOK,SEAT
53008-021
$11.34
32085
STOPPER,SEAT
32085-1167
Unavailable
32099
CASE,MANUAL
32099-011
$16.66
46075
GRIP,FRAME
46075-1054
Unavailable
53001
SEAT-ASSY,DUAL
53001-1370
Unavailable
53003
LEATHER,SEAT
53003-1119
Unavailable
92001
BOLT,6X12
92001-1771
$3.92
92001A
BOLT,6X20
92001-1826
$3.92
92001B
BOLT,8X16
92001-1841
Unavailable
92009
SCREW,TAPPING,5X8
92009-1043
$4.77
92009A
SCREW,TAPPING,5X14
92009-1197
$3.92
92015
NUT,TAIL LAMP BRACKET
92015-1346
Unavailable
92022
WASHER,6.5X16X2
92022-1565
$3.92
92027
COLLAR,8.2X13X6
92027-1565
$1.93
92027A
COLLAR,L=14
92027-1742
$6.16
92075
DAMPER,FRAME GRIP
92075-1603
$6.56
92075A
DAMPER,FRAME GRIP,LH
92075-1604
$8.12
92075B
DAMPER,FRAME GRIP,RH
92075-1605
$8.03
92081
SPRING,HOOK RETURN
92081-1580
$7.55
92081A
SPRING,SEAT
92081-1664
Unavailable
110
BOLT-UPSET
112G0625
$3.62
120
BOLT-SOCKET,8X35
120S0835
$4.44
120A
BOLT-SOCKET,8X40
120S0840
$4.44
187
BOLT 6X14
187B0614
$0.88
