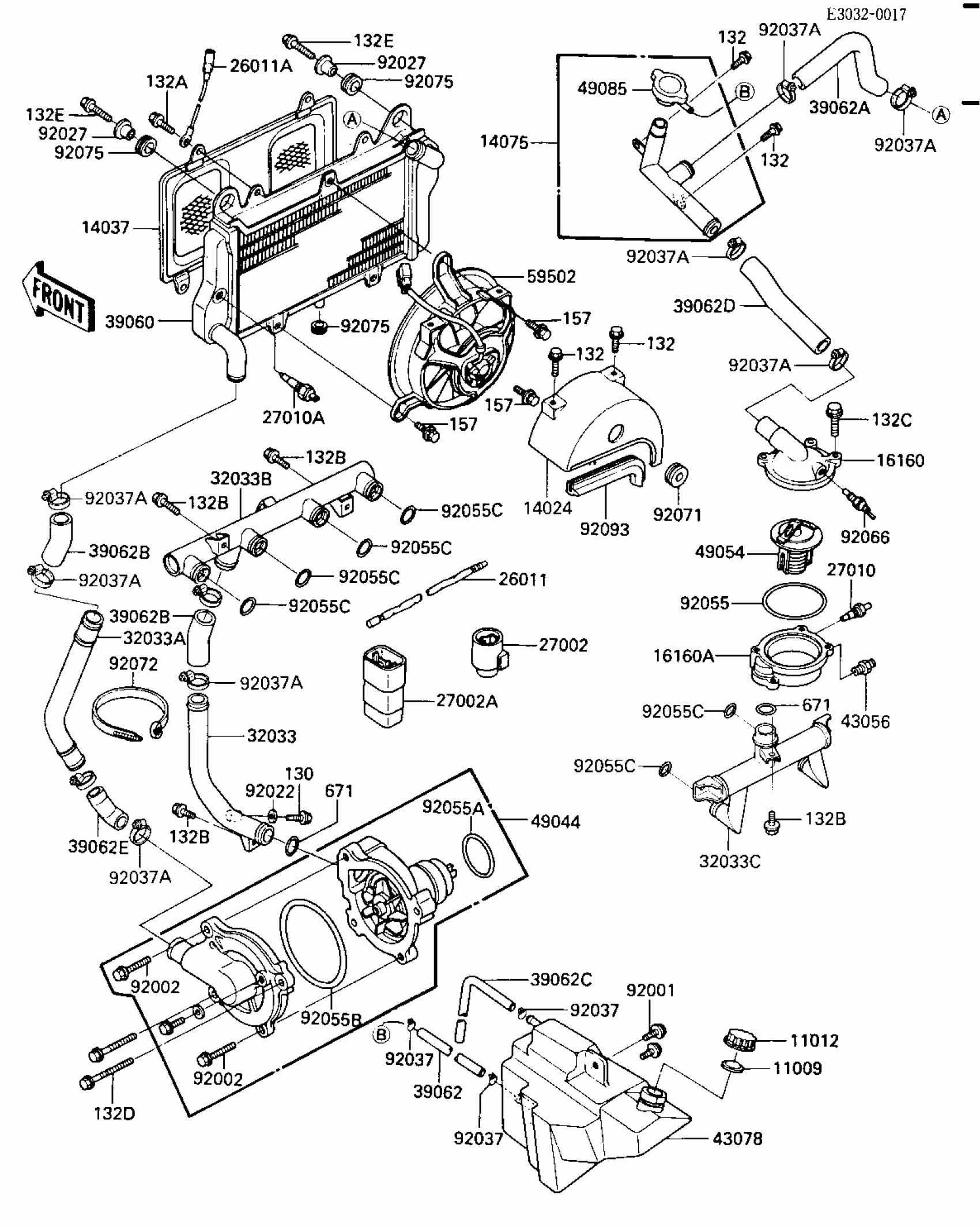

Kawasaki Ninja® RADIATOR/FAN/WATER PUMP Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
14024
COVER,FAN
14025-1892
Unavailable
14037
SCREEN,RADIATOR
14037-1063
$74.72
14075
CAP-ASSY,RADIATOR
14075-1055
$206.81
16160
BODY,THERMOSTAT,UPP
16160-1067
$72.80
16160A
BODY,THERMOSTAT,LWR
16160-1068
$83.85
26011
WIRE-LEAD
26011-1204
$10.19
26011A
WIRE-LEAD
26011-1282
Unavailable
27002
RELAY-ASSY
27002-1054
Unavailable
27002A
RELAY-ASSY
27002-1055
$87.08
27010
SWITCH,FAN
27010-1036
Unavailable
27010A
SWITCH,FAN
27010-1167
$134.15
32033
PIPE-WATER
39192-1028
$130.02
32033A
PIPE
32033-1207
Unavailable
32033B
PIPE
32033-1262
$142.80
32033C
PIPE
32033-1719
$150.85
39060
RADIATOR
39060-1059
Unavailable
39062
HOSE-COOLING,5.5X10.5X1500
39062-1144
$37.82
39062A
HOSE-COOLING
39062-1070
$37.36
39062B
HOSE-COOLING
39062-1072
$21.55
39062C
HOSE-COOLING,RESERVOIR
39062-1220
$26.45
39062D
HOSE-COOLING
39062-1091
$35.90
39062E
HOSE-COOLING
39062-1092
$21.55
43056
BREATHER
43056-003
$24.57
43078
RESERVOIR
43078-1053
$89.44
49044
PUMP-WATER
49044-1058
$327.27
49054
THERMOSTAT
49054-1051
Unavailable
49085
CAP-ASSY-PRESSURE
49085-1053
$37.42
59502
FAN-ASSY
59502-1053
Unavailable
92001
BOLT,W/WASHER,6X12
92001-1516
$5.00
92002
BOLT,6X22
92002-1392
$4.73
92022
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR,FUEL TANK FITT
92027-1134
$10.28
92037
CLAMP,TUBE
92037-147
$7.34
92037A
CLAMP,COOLING HOSE
92037-1985
$8.20
92055
RING-O,53.5X2.6
92055-112
$6.63
92055A
RING-O,33.8MM
92055-1266
$20.41
92055B
RING-O,WATER PUMP
92055-1271
$11.07
92055C
RING-O
92055-1282
$5.24
92066
PLUG,SENSOR WATER
92066-1183
$66.41
92071
GROMMET,FAN COVER
92071-1116
$4.11
92072
BAND,L=365
92072-1197
$7.84
92075
DAMPER
92160-1007
$5.52
92093
SEAL,FAN COVER
92093-1168
Unavailable
130
BOLT-FLANGED
130J0610
$2.33
132
BOLT-FLANGED-SMALL
132W0608
$3.41
132A
BOLT-FLANGED-SMALL,6X10
132J0610
$2.33
132B
BOLT-FLANGED-SMALL,6X12
132J0612
$1.92
132C
BOLT-FLANGED-SMALL,6X20
132J0620
$3.64
132D
BOLT-FLANGED-SMALL,6X40
132J0640
$4.44
132E
BOLT-FLANGED-SMALL,8X25
132J0825
$3.84
157
BOLT-WSP
157J0616
$1.35
671
O RING,25MM
671B2525
$5.00
