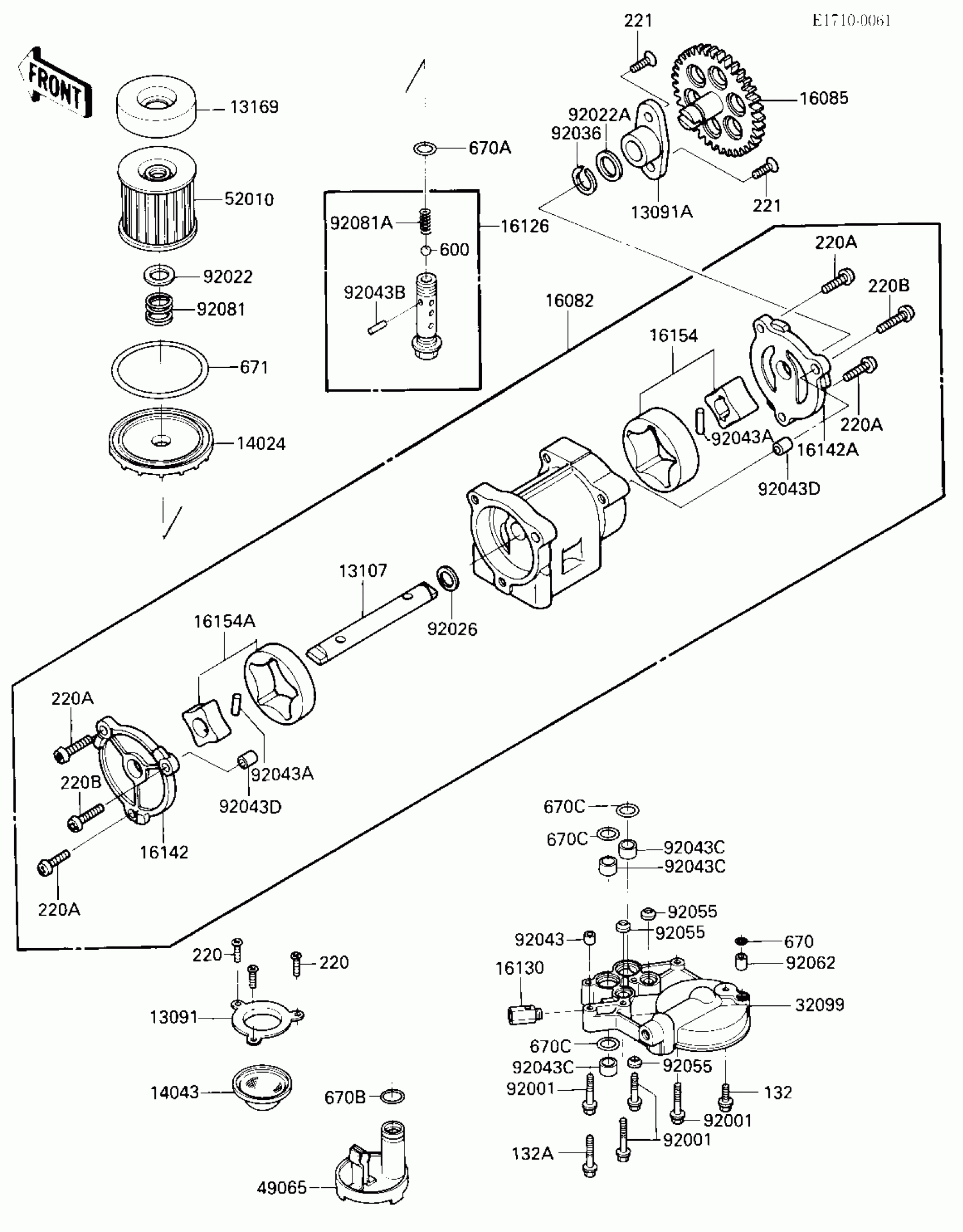

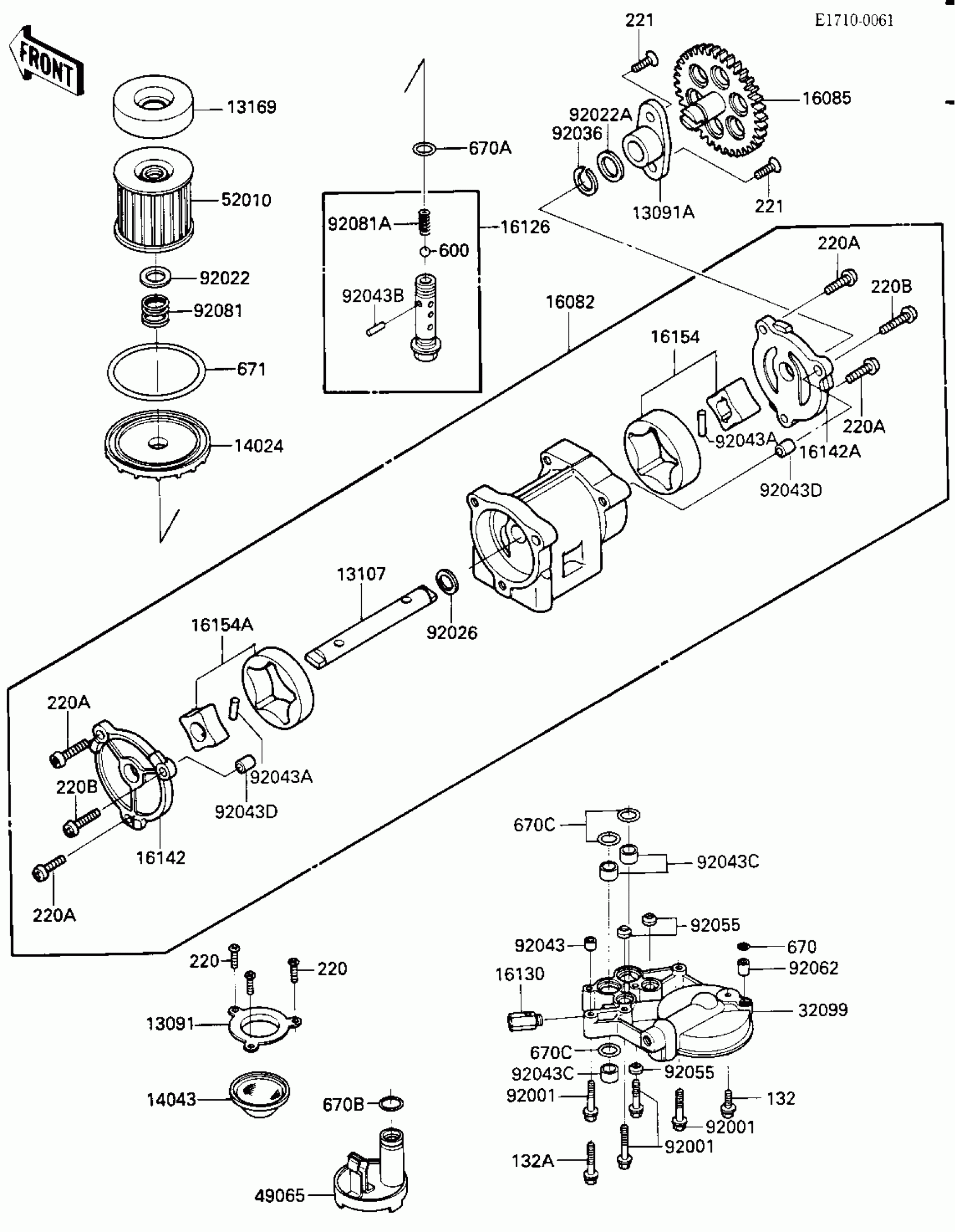

Kawasaki Ninja® OIL PUMP/OIL FILTER Diagram
#
13091
HOLDER,OIL FILTER
13091-1274
$14.36
13091A
HOLDER,PUMP GEAR
13091-1333
$32.00
13107
SHAFT,OIL PUMP
13107-1105
Unavailable
13169
PLATE,OIL FILTER
13169-1313
$10.65
14024
COVER,OIL FILTER,F.BLACK
14025-1422
$44.52
14043
FILTER,OIL
16111-003
$20.68
16082
PUMP-ASSY-OIL
16082-1060
$281.61
16085
GEAR,OIL PUMP,35T
16085-1103
$122.11
16126
VALVE,OIL FILTER
16126-1108
$41.98
16130
VALVE-ASSY-RELIEF
16130-1001
Unavailable
16142
COVER-PUMP,LH
16142-1052
$46.20
16142A
COVER-PUMP,RH
16142-1054
$46.20
16154
ROTOR-PUMP,SCAVENGE,T=16
16154-1007
$70.17
16154A
ROTOR-PUMP
16154-1053
$68.95
32099
CASE,OIL FILTER
32099-1083
$121.04
49065
FILTER-OIL
49065-1066
$33.97
52010
ELEMENT-OIL FILTER
16099-003
$12.20
92001
BOLT,FLANGED,6X38
92001-1105
$4.69
92022
WASHER,20.5X30X1
92022-1012
$4.34
92022A
WASHER,14X20X1
92022-1495
$4.31
92026
SPACER,OIL PUMP
92026-1230
$4.46
92036
RING-SNAP,PUMP GEAR
92036-1052
$6.16
92043
PIN,DOWEL,6.3X8X14
92042-007
$5.70
92043A
PIN,DOWEL,5X17.8
92043-1061
$4.92
92043B
PIN,SPRING,2X20
92043-111
$6.27
92043C
PIN,18X20X12
92043-1213
$6.27
92043D
PIN,DOWEL,8X10
92043-1302
$1.03
92055
RING-O,19.5MM
92055-077
$6.57
92062
NOZZLE
92062-1055
$9.59
92081
SPRING,OIL FILTER
92081-1018
$4.65
92081A
SPRING
92081-109
$11.29
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
132A
BOLT-FLANGED-SMALL,6X45
132G0645
$4.15
220
SCREW PAN HEAD 6X12
220B0612
Unavailable
220A
SCREW-PAN-CROS,6X14
220B0614
$1.48
220B
SCREW-PAN-CROS,6X20,WHITE
220B0620
$5.82
221
SCREW-CSK-CROS,6X16
221B0616
$0.59
600
BALL-STEEL,3/8"
600A1200
$1.56
670
O RING,8MM
670B1508
$1.29
670A
O RING,16MM
670B2016
$1.36
670B
O RING,18MM
670B2018
$1.42
670C
O RING,20MM
670D2020
$6.22
671
O RING,90MM
671B2590
$9.91
