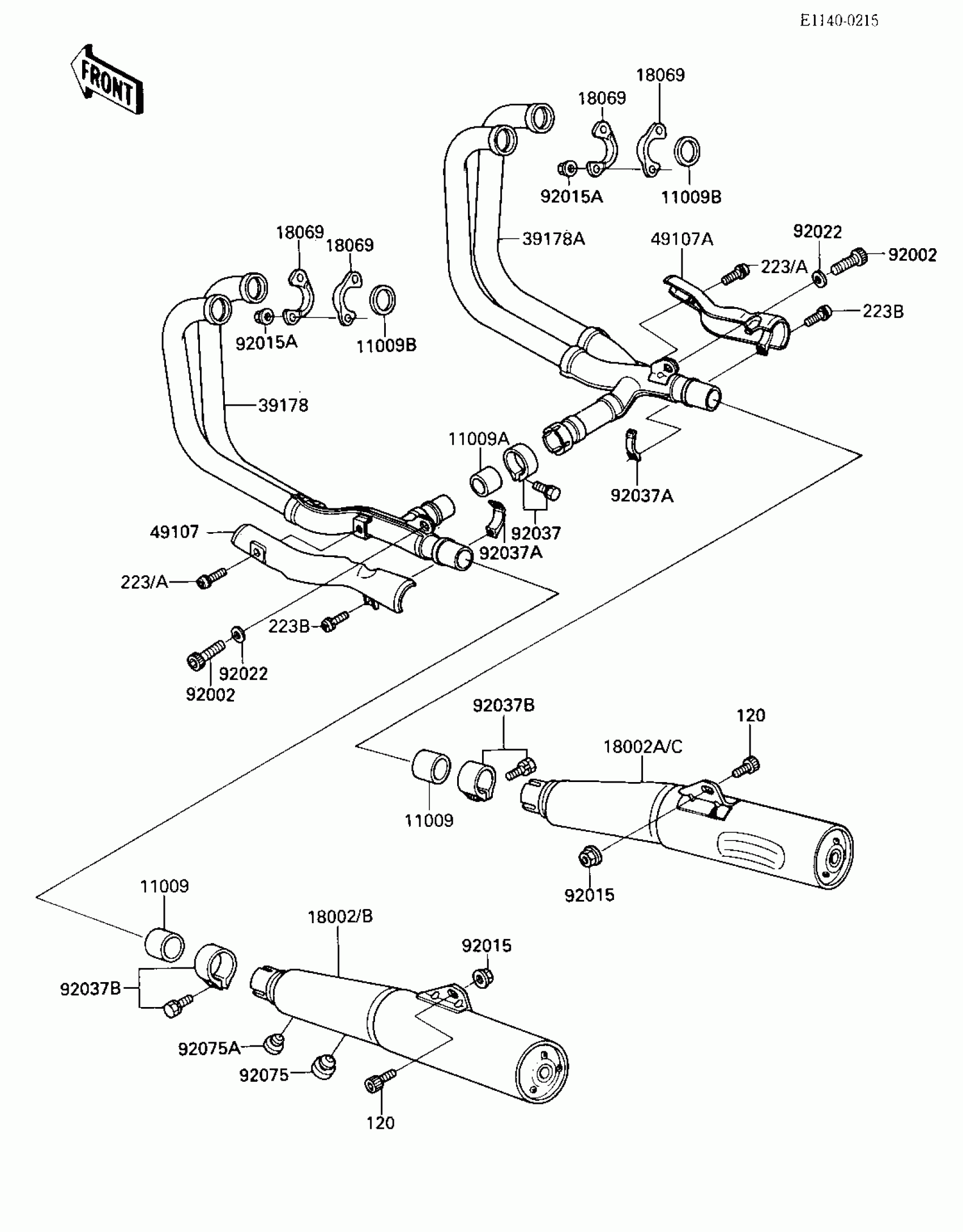

Kawasaki Ninja® MUFFLERS Diagram
#
Description
Price
11009
GASKET,EXHAUST PIPE CONNECTING
11009-1666
$32.66
11009A
GASKET,EXHAUST MANIFOLD
11009-1668
$31.85
11009B
GASKET,EXHAUST PIPE H
11009-1840
$8.17
18002
BODY-COMP-MUFFLER,LH
18002-1556
$546.71
18002A
BODY-COMP-MUFFLER,RH
18002-1557
$546.71
18002B
BODY-COMP-MUFFLER,LH
18002-1625
$303.84
18002C
BODY-COMP-MUFFLER,RH
18002-1626
$305.31
18069
HOLDER-EXHAUST PIPE
18069-1054
Unavailable
39178
MANIFOLD-COMP-EXHAUST
39178-1067
Unavailable
39178A
MANIFOLD-COMP-EXHAUST
39178-1068
Unavailable
49107
COVER-EXHAUST PIPE,LH
49107-1053
$108.44
49107A
COVER-EXHAUST PIPE,RH
49107-1058
$108.44
92002
BOLT
92002-1371
$5.21
92015
NUT,FLANGED,8MM
92015-1014
$0.65
92015A
NUT,LOCK,FLANGED,8MM
92015-1397
$4.31
92022
WASHER
92022-1594
$4.37
92037
CLAMP,MUFFLER,BLACK
92037-1270
$20.77
92037A
CLAMP,EXHAUST PIPE COVER
92037-1506
$15.89
92037B
CLAMP,POWER CHAMBER
92037-1537
$20.37
92075
DAMPER
92075-015
$5.00
92075A
DAMPER,9X24X14
92075-281
$6.22
120
BOLT-SOCKET
120Z0820
$4.88
223
SCREW-PAN-WS-CROS
223C0610
$4.12
223A
SCREW-PAN-WS-CROS,6X12
223C0612
$3.84
223B
SCREW-PAN-WS-CROS,6X20
223C0620
$4.30
