Description

Price

14024

COVER,METER HOUSING

14025-1877

Unavailable

14024A

COVER,METER CASE,LWR

14025-1878

Unavailable

23008

SOCKET-ASSY,METER

23008-1229

$143.32

25005

SPEEDOMETER,MPH

25005-1276

$202.94

25005A

SPEEDOMETER,KPH (Canada)

25005-1277

Unavailable

25008

BRACKET-METER

25008-1108

Unavailable

25015

TACHOMETER,(X1000RPM)

25015-1221

$354.34

25023

COVER-METER CASE,UPP

25023-1116

Unavailable

28011

METER,FUEL

28011-1062

$84.08

28011A

METER,TEMP

28011-1070

$84.08

52014

ELBOW,SPEEDOMETER GEAR

52014-1006

Unavailable

92009

SCREW,4X16,BLACK

92009-1158

$3.65

92089A

SCREW,3X22

92009-1293

$3.91

92009B

SCREW,3X12

92009-1326

$3.65

92009C

SCREW,TAPPING,2.6X12

92009-1330

$3.35

92022

WASHER,3MM

92022-1374

Unavailable

92022A

WASHER,5.2X16X1.2

92022-263

$1.66

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92069A

BULB,12V 3W,T7

92069-1020

$6.52

92075

DAMPER

92075-1435

$6.45

92075A

DAMPER,METER BRACKET

92075-1495

$12.79

130

BOLT-FLANGED,6X14

130C0614

$2.33

311

NUT-HEX

311B0500

$0.47

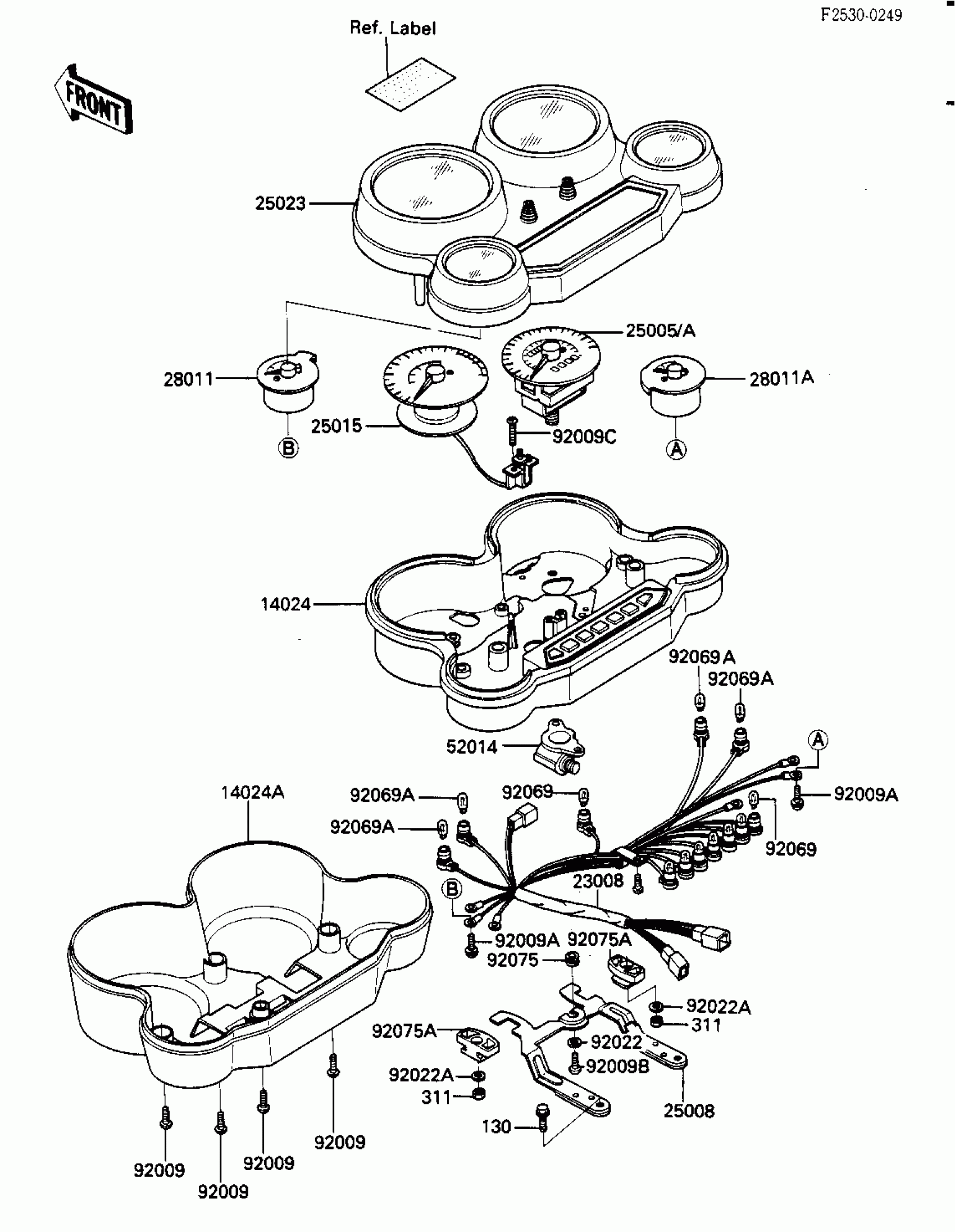

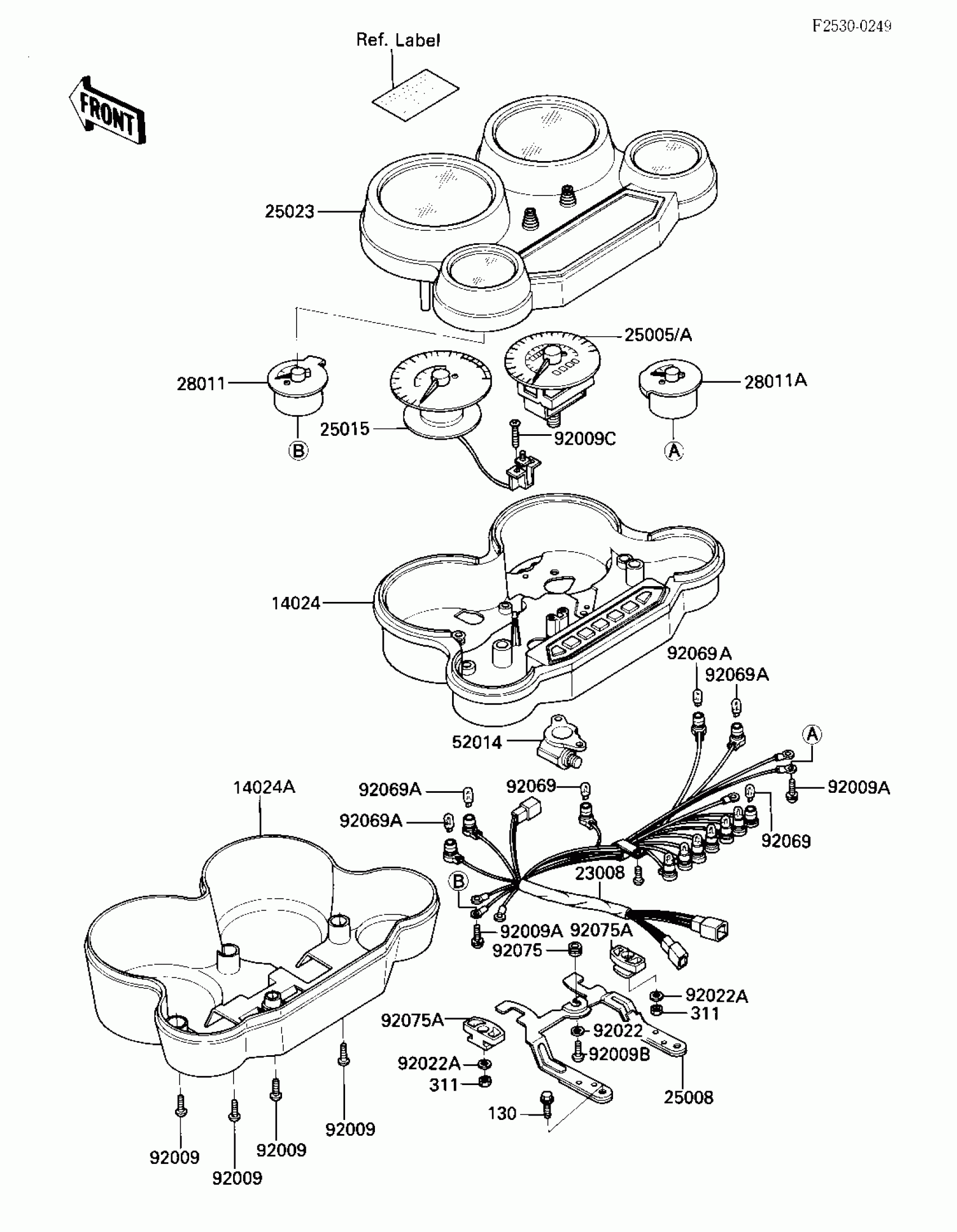

Kawasaki Ninja® METERS Diagram

COVER,METER HOUSING

COVER,METER CASE,LWR

SOCKET-ASSY,METER

SPEEDOMETER,MPH

SPEEDOMETER,KPH (Canada)

BRACKET-METER

TACHOMETER,(X1000RPM)

COVER-METER CASE,UPP

METER,FUEL

METER,TEMP

ELBOW,SPEEDOMETER GEAR

SCREW,4X16,BLACK

SCREW,3X22

SCREW,3X12

SCREW,TAPPING,2.6X12

WASHER,3MM

WASHER,5.2X16X1.2

BULB,12V 3.4W,T10

BULB,12V 3W,T7

DAMPER

DAMPER,METER BRACKET

BOLT-FLANGED,6X14

NUT-HEX
