2016 Kawasaki Ninja H2™ Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

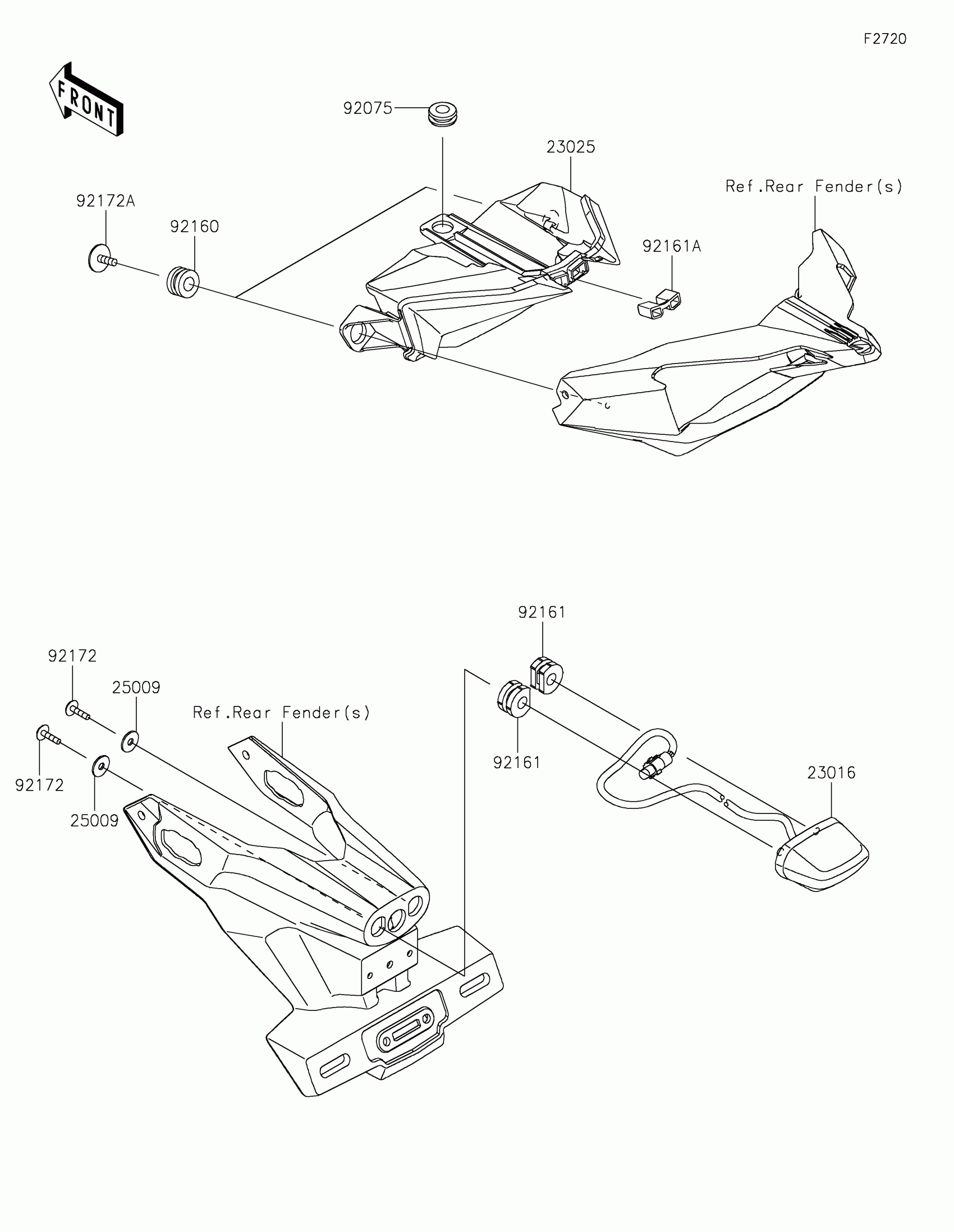

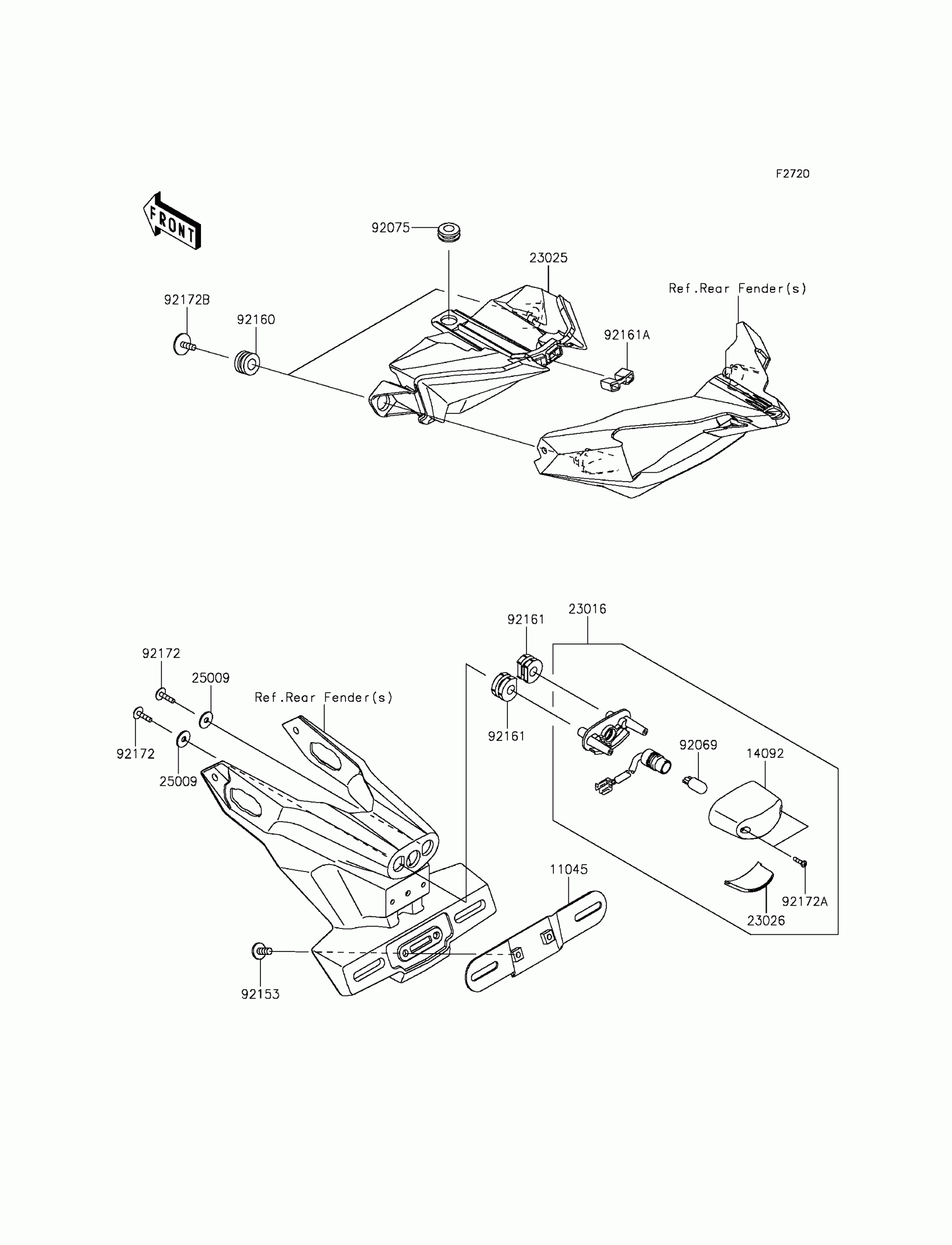

2016 Kawasaki Ninja H2™ Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1

$13.20

In stock

14092

COVER,LICENSE LAMP

14092-0001

1

$20.17

In stock

23016

LAMP-ASSY,LICENCE

23016-0552

1

$73.13

In stock

23025

LAMP-TAIL,LED

23025-0346

1

$298.53

In stock

23026

LENS,LICENCE LAMP

23026-0023

1

$29.34

In stock

25009

WASHER,5.2X16X1.2

25009-004

1

$3.03

In stock

92069

BULB,12V 5W

92069-1016

1

$5.16

In stock

92075

DAMPER

92075-1028

1

$3.72

In stock

92153

BOLT,SOCKET,6X14

92153-1446

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER

92161-0776

1

$4.39

In stock

92161A

DAMPER,RR FENDER

92161-1727

1

$4.98

In stock

92172

SCREW,TAPPING,5X16

92172-0238

1

$0.97

In stock

92172A

1

$1.53

In stock

92172B

SCREW,TAPTITE,5X16

92172-0481

1

$2.58

In stock
