2016 Kawasaki Ninja H2™ Generator Diagram

← All diagrams

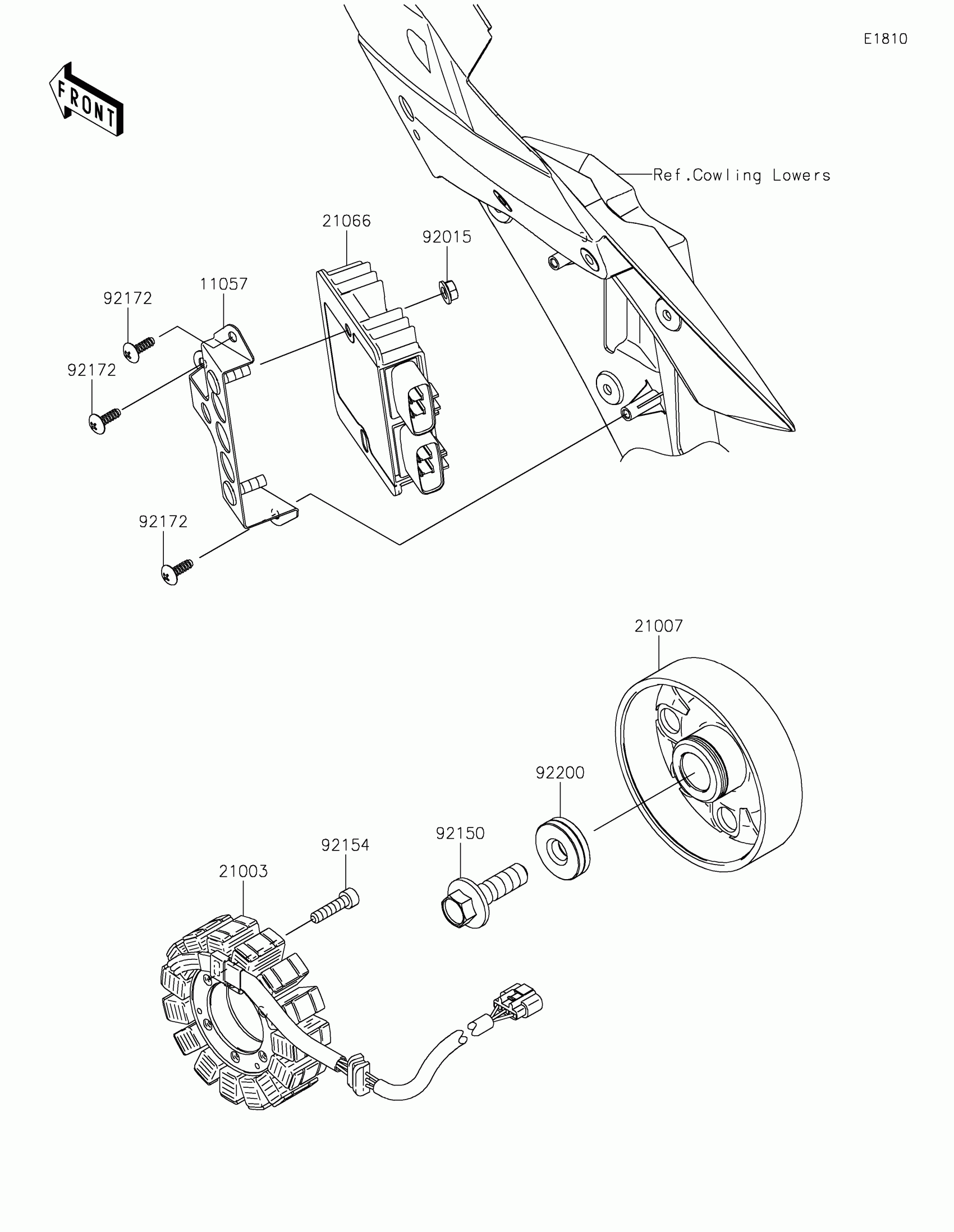

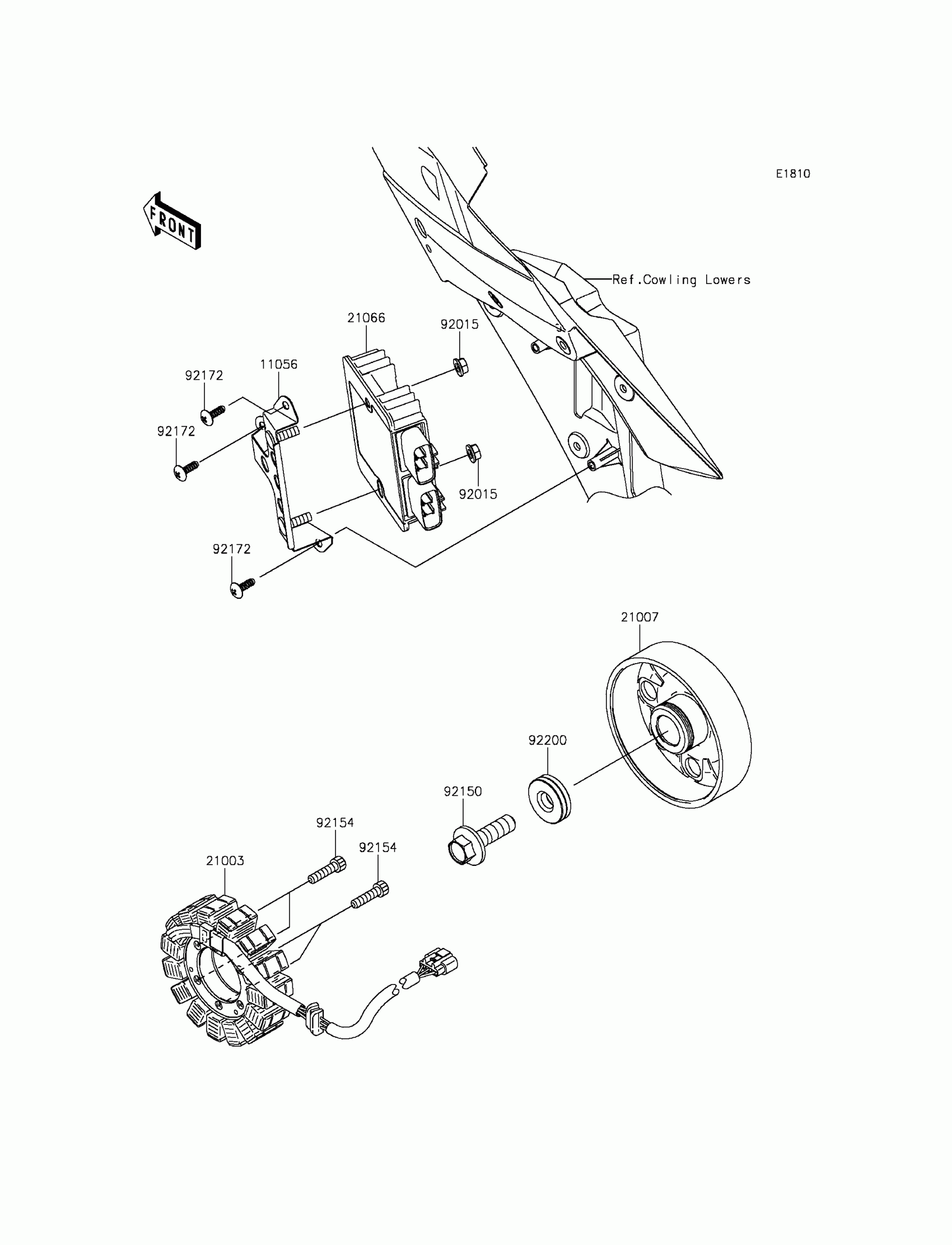

Find the part on the Generator diagram for your 2016 Kawasaki Ninja H2™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Ninja H2™ Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,REGULATOR

11056-7039

1

$20.93

In stock

21003

STATOR

21003-0169

1

$388.79

In stock

21007

ROTOR

21007-0611

1

$641.37

In stock

21066

REGULATOR-VOLTAGE

21066-0738

1

$346.24

In stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92150

BOLT,12X40

92150-1717

1

$10.93

In stock

92154

BOLT,SOCKET,6X25

92154-0477

1

$1.66

In stock

92172

SCREW,TAPPING,5X16

92172-0175

1

$1.53

In stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock
