2018 Kawasaki Ninja H2™ SX Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2018 Kawasaki Ninja H2™ SX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

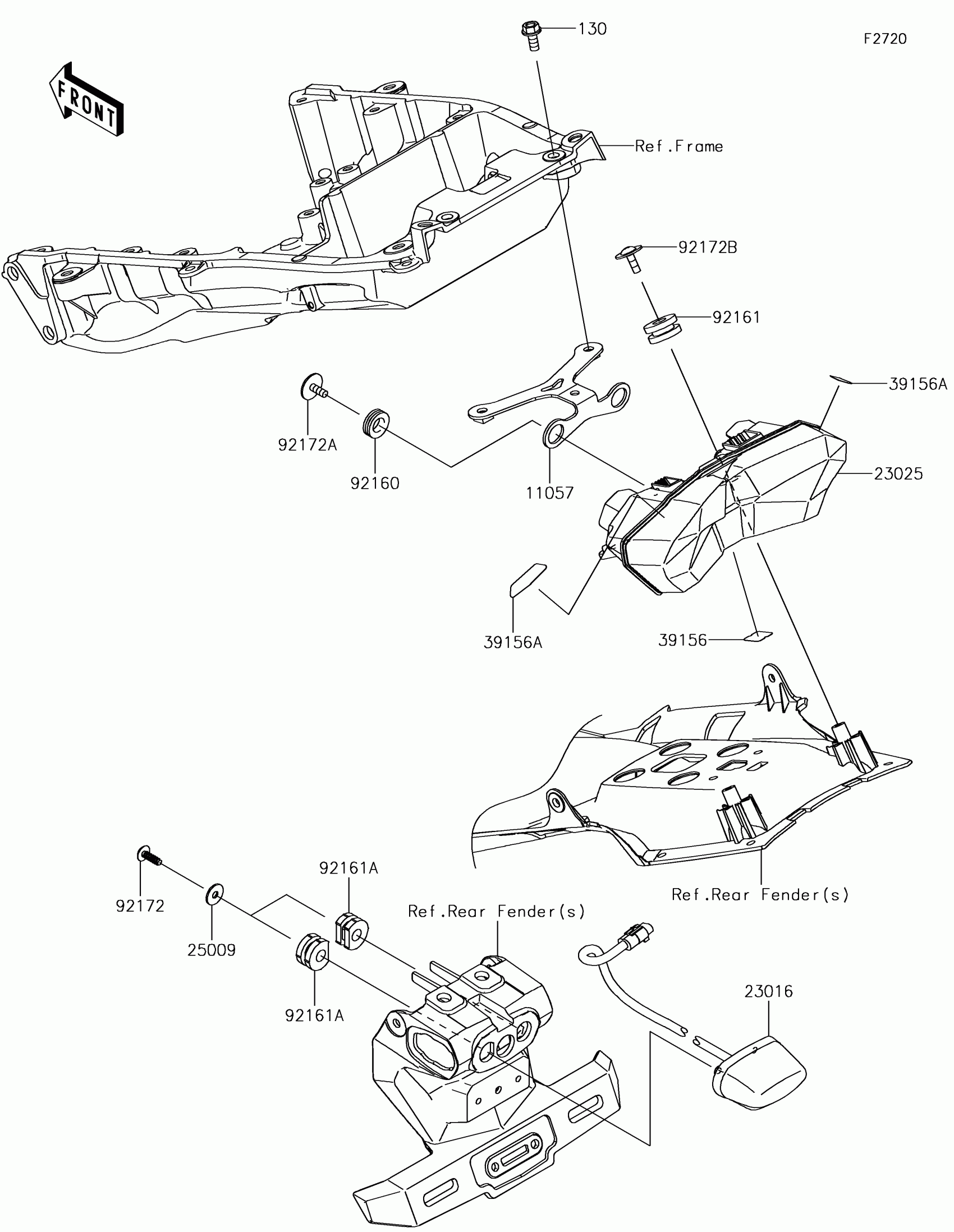

2018 Kawasaki Ninja H2™ SX Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1299

1
Out of stock

23016

LAMP-ASSY,LICENSE,LED

23016-0618

1
Out of stock

23025

LAMP-TAIL,LED

23025-0374

1
Out of stock

25009

WASHER,5.2X16X1.2

25009-004

1
Out of stock

39156

PAD,17X15X0.2

39156-2231

1
Out of stock

39156A

PAD,10.6X36.8X0.2

39156-2232

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92161A

DAMPER

92161-0776

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,TAPPING,WP,5X14

92172-0441

1
Out of stock

92172B

SCREW,TAPTITE,5X16

92172-0481

1
Out of stock

130

BOLT-FLANGED,6X14

130BC0614

1
Out of stock
