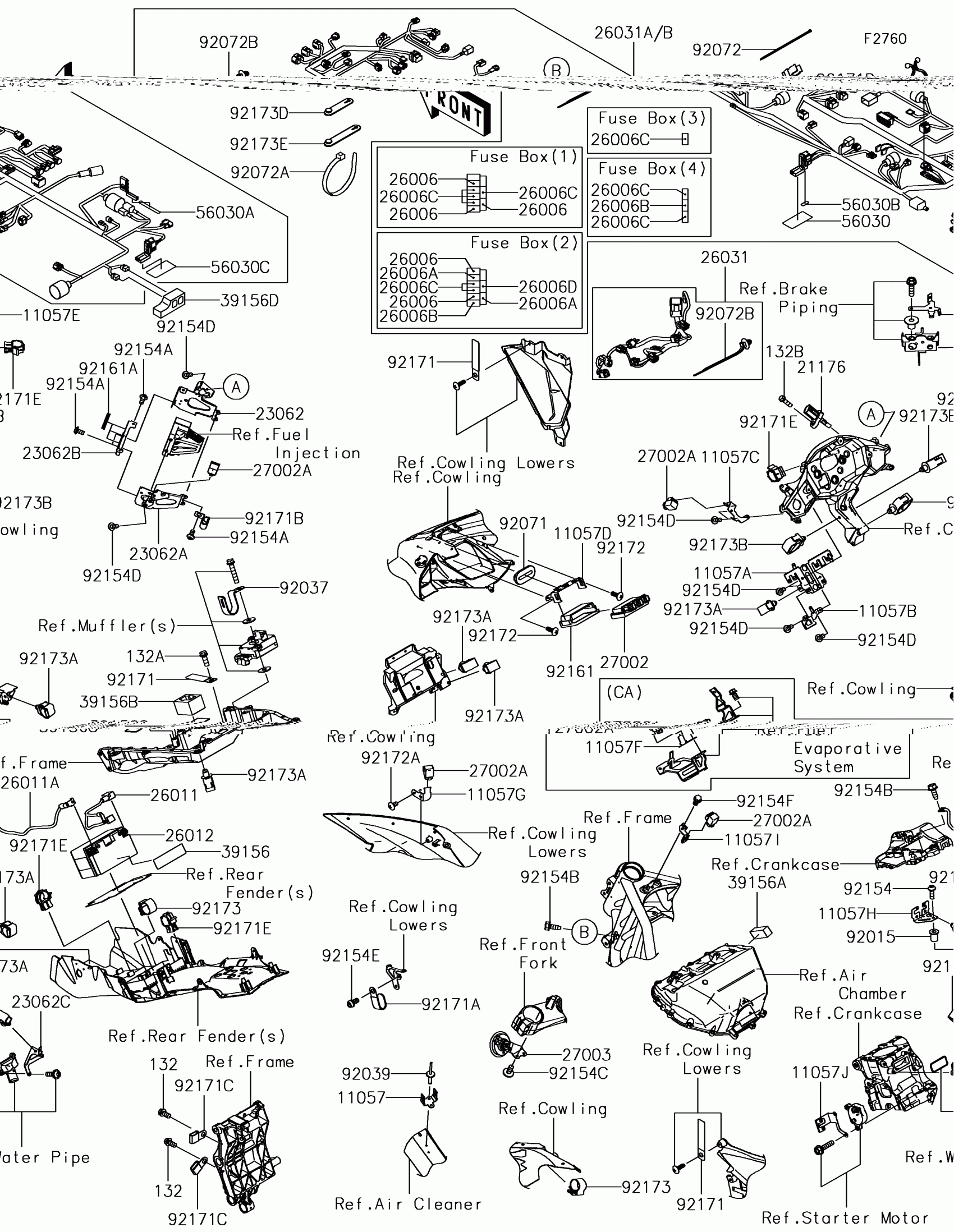

Kawasaki NINJA H2™ SX Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,GRIP HEATER

11057-1280

$5.54

11057A

BRACKET,GYRO SENSOR

11057-1281

$41.32

11057B

BRACKET,CONNECTOR

11057-1282

$13.88

11057C

BRACKET,FUSE BOX

11057-1283

$8.05

11057D

BRACKET,RELAY BOX

11057-1284

$11.22

11057E

BRACKET,SUB HARNESS CONNECTOR

11057-1476

$9.53

11057F

BRACKET,RELAY

11057-1477

$8.05

11057G

BRACKET,SUB RELAY

11057-1478

$5.76

11057H

BRACKET,RR FENDER

11057-1481

$11.95

11057I

BRACKET,RELAY

11057-1636

$12.19

11057J

BRACKET,STARTER

11057-1655

$15.02

21176

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

23062

BRACKET-COMP,ECU,OUTER

23062-0973

$49.22

23062A

BRACKET-COMP,ECU,INNER

23062-0974

$47.61

23062B

BRACKET-COMP,ECU,COVER

23062-0994

$39.41

23062C

BRACKET-COMP,WATER PIPE

23062-1154

$12.02

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$5.71

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$5.71

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,BATTERY(+)

26011-0983

$49.77

26011A

WIRE-LEAD,BATTERY(-)

26011-1856

$67.09

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

$210.21

26031

HARNESS,SUB

26031-2370

$210.92

26031A

HARNESS,MAIN

26031-2491

$1,220.18

26031B

HARNESS,MAIN

26031-2492

$1,220.18

27002

RELAY-ASSY,BOX

27002-0025

$127.74

27002A

RELAY-ASSY

27002-1062

$40.25

27003

HORN

27003-0138

$89.47

39156

PAD,30X115X0.36

39156-1895

$12.98

39156A

PAD,25X65X20

39156-1945

$1.80

39156B

PAD

39156-2314

$9.42

39156C

PAD,40X90X2

39156-2339

$2.59

39156D

PAD,DIAG,40X30X96

39156-2400

$7.64

56030

LABEL,FUSE BOX1

56030-1376

$2.61

56030A

LABEL,FUSE BOX4

56030-1377

$2.61

56030B

LABEL,FUSE BOX3

56030-1378

$2.61

56030C

LABEL,FUSE BOX2

56030-1408

$2.61

92015

NUT,WELL,5MM

92015-1757

$5.58

92037

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.69

92039

RIVET

92039-0039

$3.51

92071

GROMMET

92071-0013

$4.85

92072

BAND,202X3.6

92072-0782

$1.68

92072A

BAND,L=365

92072-1197

$7.71

92072B

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X10

92154-0211

$1.54

92154B

BOLT,FLANGED,6X16

92154-0551

$1.44

92154C

BOLT,SOCKET,6X14

92154-0745

$1.66

92154D

BOLT,SOCKET,5X12

92154-0917

$3.59

92154E

BOLT,SOCKET,6X12

92154-1453

$1.10

92154F

BOLT,FLANGED,6X10

92154-2819

$1.81

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92161A

DAMPER,ECU

92161-2071

$4.76

92171

CLAMP,L=60

92171-0652

$1.85

92171A

CLAMP

92171-0739

$4.95

92171B

CLAMP

92171-0766

$4.95

92171C

CLAMP

92171-0813

$8.46

92171D

CLAMP

92171-1185

$2.03

92171E

CLAMP,EDGE CLIP

92171-1722

$7.90

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92172A

SCREW,TAPPING,5X10

92172-0335

$1.57

92173

CLAMP,CLIP

92173-0127

$14.78

92173A

CLAMP,12MM DIA.

92173-0736

$3.85

92173B

CLAMP

92173-0861

$2.11

92173C

CLAMP,PIPE

92173-0985

$3.93

92173D

CLAMP,RUBBER PLATE

92173-1229

$3.56

92173E

CLAMP

92173-1526

$3.56

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132B

BOLT-FLANGED-SMALL

132BB0516

$1.17
