Description

Price

13061

BOSS,CALIPER HOLDER

13061-0744

$42.62

33001

ARM-COMP-SWING,M.F.S.BLACK

33001-0686-46R

$2,148.38

33032

SHAFT-SWING ARM,20X313

33032-0049

$156.71

42036

SLEEVE,20.1X28X56.5

42036-0757

$50.30

42036A

SLEEVE,20.1X28X25.7

42036-0762

$31.78

55020

GUARD,HEEL

55020-2200

$30.45

55020A

GUARD,CHAIN SLIDER

55020-2204

$47.94

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0017

$14.39

92046

BEARING-NEEDLE,7E-HVS 28X34X17

92046-0008

$21.54

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92049A

SEAL-OIL,MHSA25X42X6

92049-1314

$13.75

92152

COLLAR,20.2X25X10.5

92152-1948

$24.54

92152A

COLLAR,6.5X16X4.6

92152-2495

$4.85

92154

BOLT,SOCKET,6X14

92154-1025

$1.94

92154A

BOLT,SOCKET,6X22

92154-1810

$3.86

92154B

BOLT,SOCKET,12X45

92154-2908

$7.58

92200

WASHER,20.5X31X1.5

92200-1791

$6.52

92210

NUT,FLANGED,20MM

92210-0320

$11.93

92210A

NUT,POP,6MM,L=16.5

92210-0324

$5.33

670

O RING,22MM

670B2022

$4.69

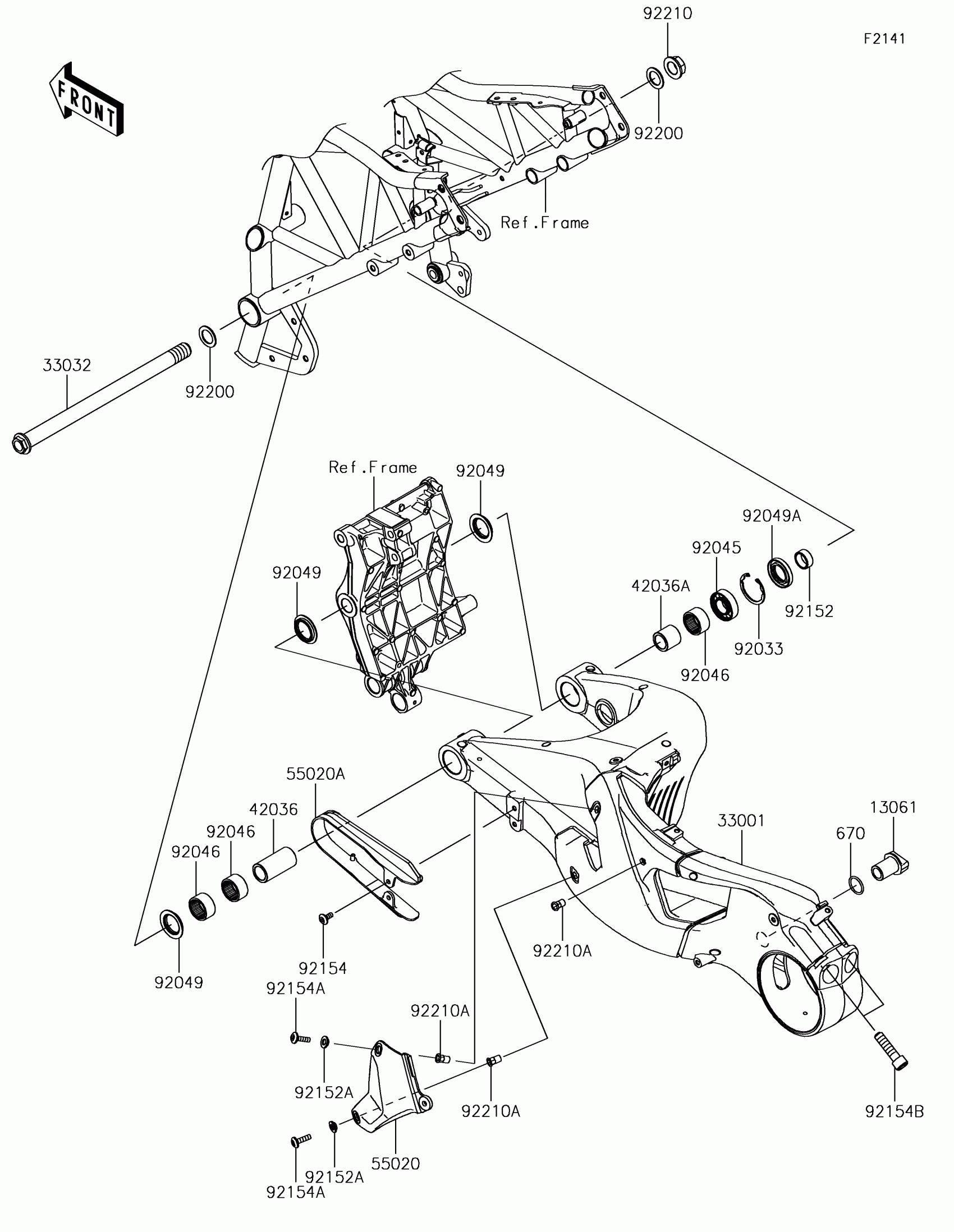

Kawasaki NINJA H2™ SX Swingarm Diagram
