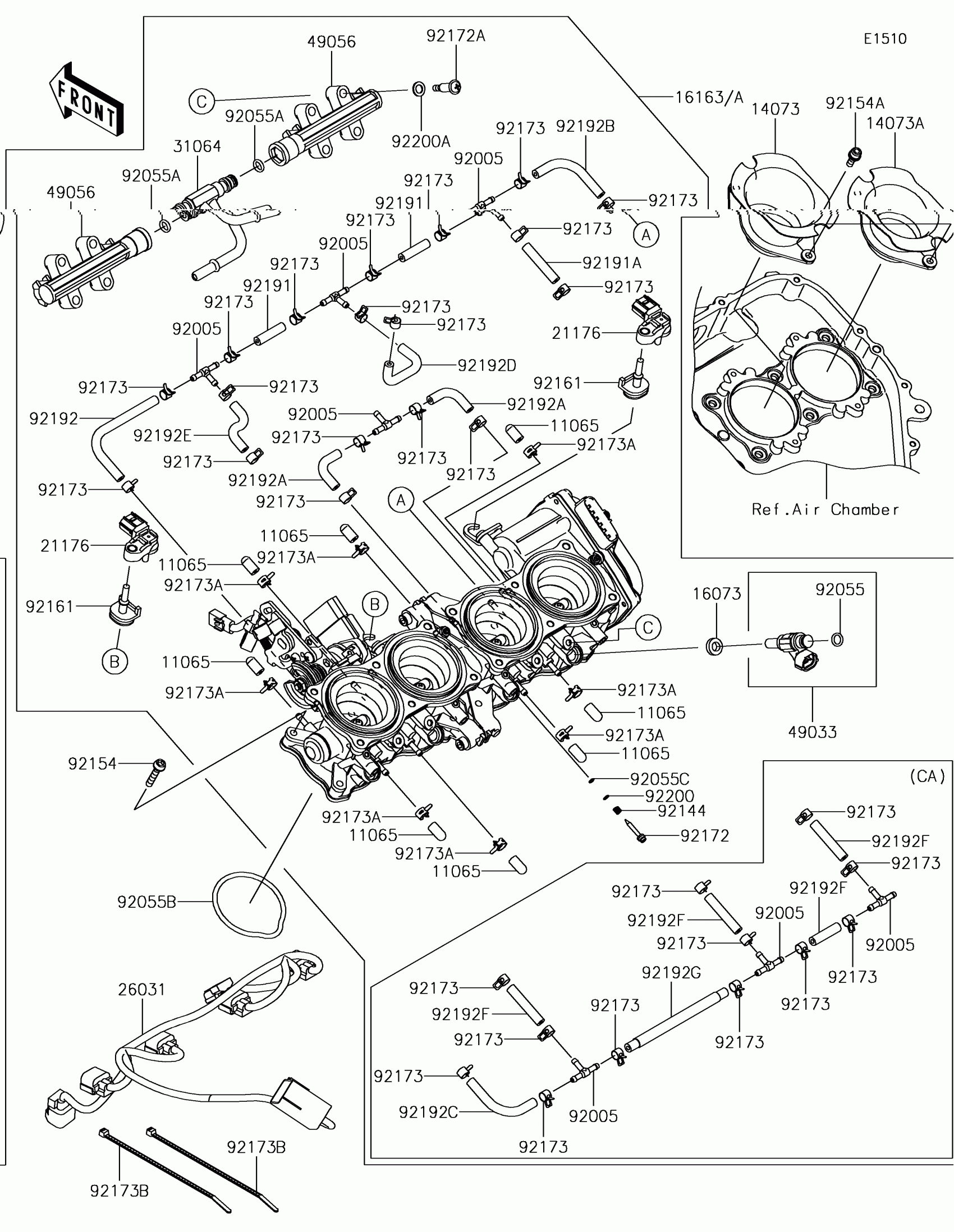

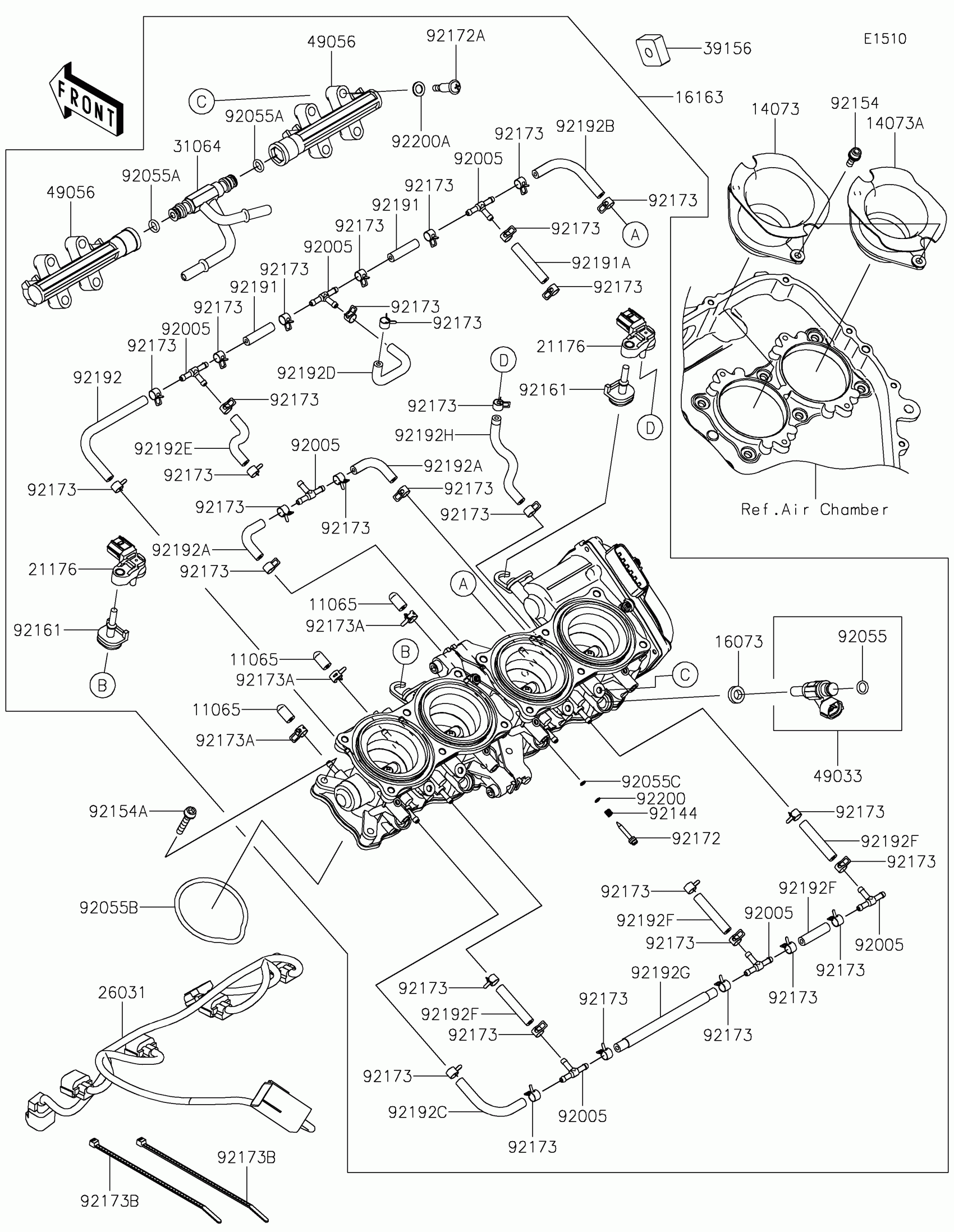

Kawasaki NINJA H2™ SX SE Throttle Diagram

#

Description
Price

11065

CAP

11065-0904

$6.46

14073

DUCT,AIR FUNNEL,#2

14073-0883

$51.80

14073A

DUCT,AIR FUNNEL,#1

14073-0887

$51.80

16073

INSULATOR

16073-0825

$11.51

16163

THROTTLE-ASSY

16163-0930

$2,181.98

16163A

THROTTLE-ASSY

16163-0932

$2,181.98

21176

SENSOR,BOOST

21176-3777

$140.35

26031

HARNESS

26031-2334

$97.51

31064

PIPE-COMP

31064-0674

$103.74

49033

NOZZLE-INJECTION

49033-0027

$132.97

49056

PIPE-INJECTION

49056-0037

$104.14

92005

FITTING

92005-1380

$16.65

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.97

92055A

RING-O

92055-0761

$7.40

92055B

RING-O

92055-0817

$11.07

92055C

RING-O

92055-0840

$2.06

92144

SPRING,THROTTLE STOP SCREW

92144-1674

$5.74

92154

BOLT,SOCKET,5X28

92154-1451

$0.88

92154A

BOLT,SOCKET,5X16

92154-1568

$2.26

92161

DAMPER

92161-0673

$5.54

92172

SCREW

92172-0156

$15.20

92172A

SCREW,PIPE INJECTION

92172-0828

$3.02

92173

CLAMP

92173-1420

$1.71

92173A

CLAMP

92173-1421

$1.71

92173B

CLAMP

92173-1470

$0.95

92191

TUBE,3.2X7.4X30

92191-1550

$2.39

92191A

TUBE,3.2X7.4X40

92191-1551

$2.78

92192

TUBE,3.2X7.4X115

92192-0131

$4.11

92192A

TUBE,3.2X7.4X45

92192-1445

$7.52

92192B

TUBE,3.2X7.4X75

92192-1446

$11.40

92192C

TUBE,3.5X7.5X70

92192-1447

$13.73

92192D

TUBE

92192-1492

$13.73

92192E

TUBE

92192-1493

$13.73

92192F

TUBE,3.5X7.5X40

92192-1494

$9.84

92192G

TUBE,3.5X7.5X115

92192-1495

$25.88

92200

WASHER,PILOT AIR SCREW

92200-1564

$2.58

92200A

WASHER

92200-3807

$6.00

11065

CAP

11065-0904

$6.46

92005

FITTING

92005-1380

$16.65

92173

CLAMP

92173-1420

$1.71

92173A

CLAMP

92173-1421

$1.71
