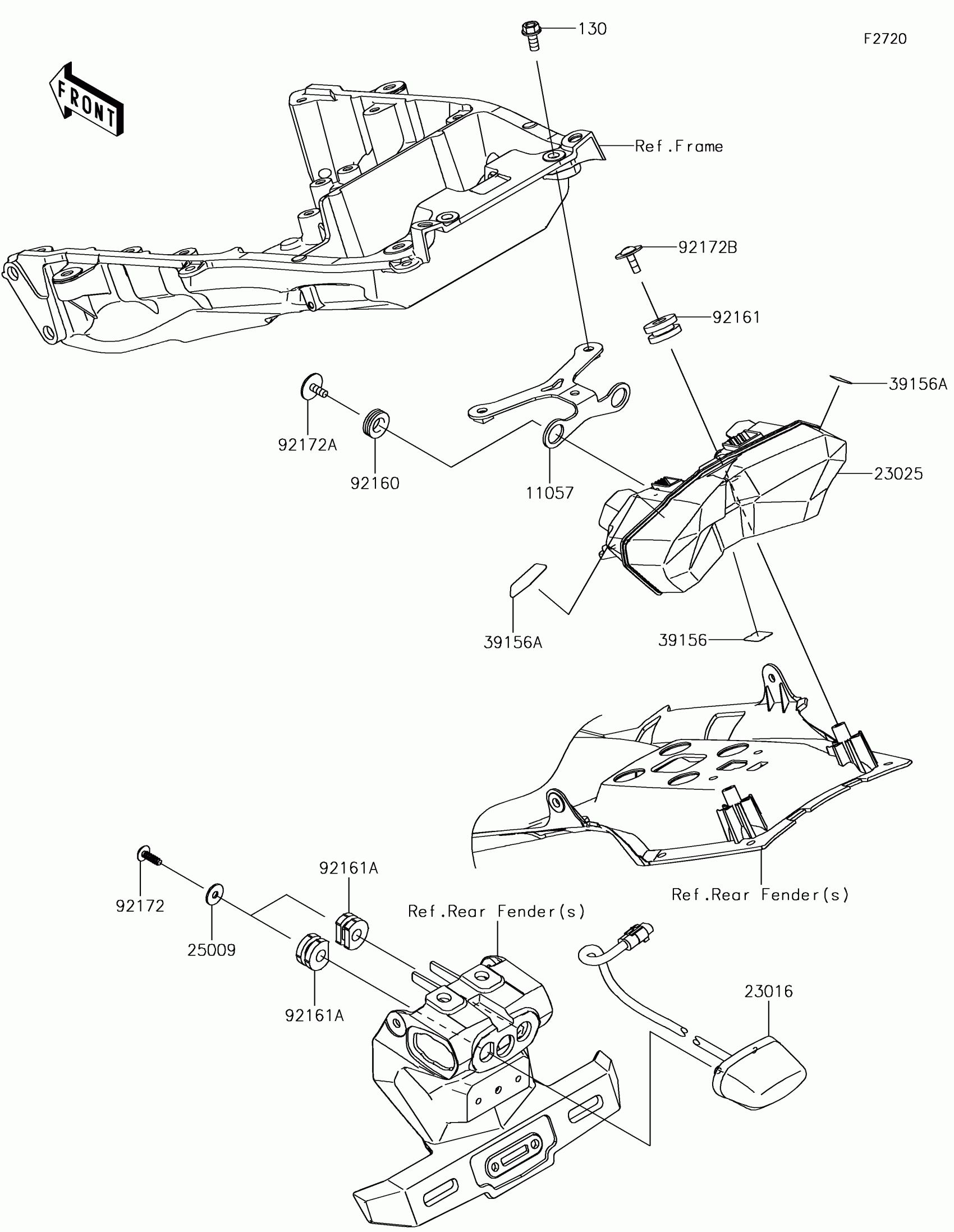

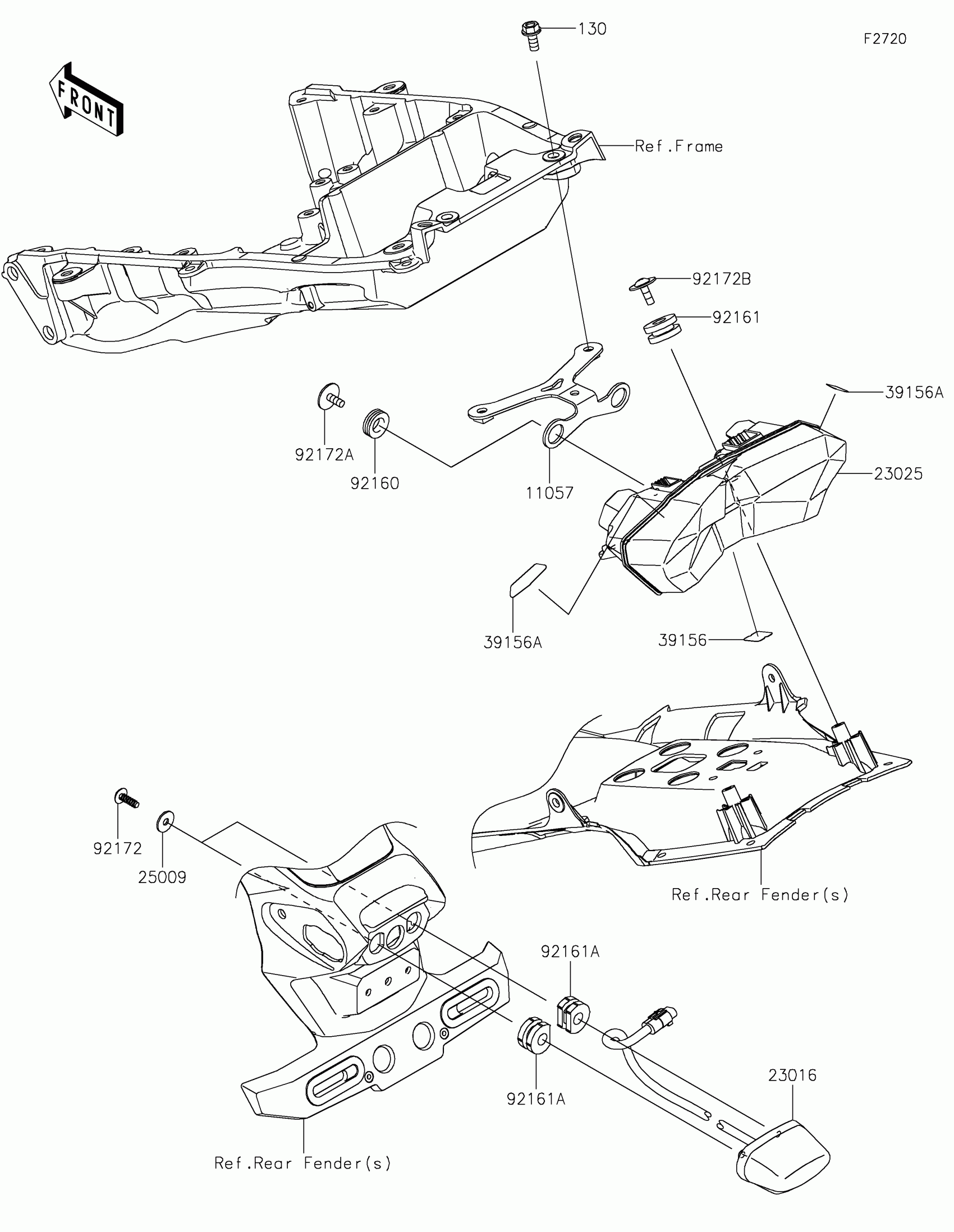

Kawasaki Ninja H2 SX SE Taillight(s) Diagram

Description

Price

11057

BRACKET

11057-1299

$9.49

23016

LAMP-ASSY,LICENSE,LED

23016-0666

$59.39

23025

LAMP-TAIL,LED

23025-0387

$246.06

25009

WASHER,5.2X16X1.2

25009-004

$3.65

39156

PAD,17X15X0.2

39156-2231

$2.68

39156A

PAD,10.6X36.8X0.2

39156-2232

$2.68

92160

DAMPER

92160-1278

$4.39

92161

DAMPER

92161-0163

$5.79

92161A

DAMPER

92161-0776

$5.54

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,TAPPING,WP,5X14

92172-0441

$2.75

92172B

SCREW,TAPTITE,5X16

92172-0481

$3.19

130

BOLT-FLANGED,6X14

130BC0614

$1.69
