Suspension/Shock Absorber

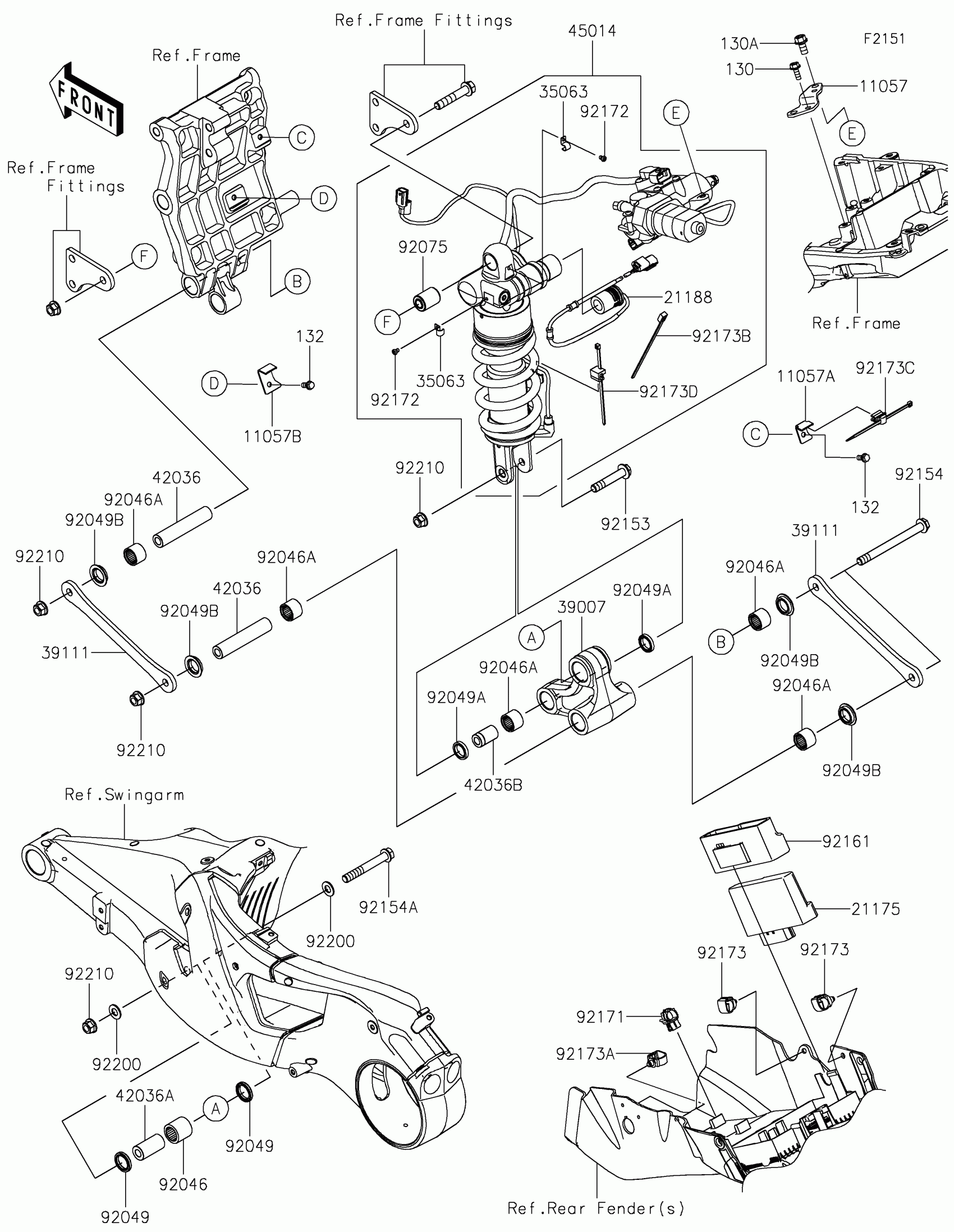

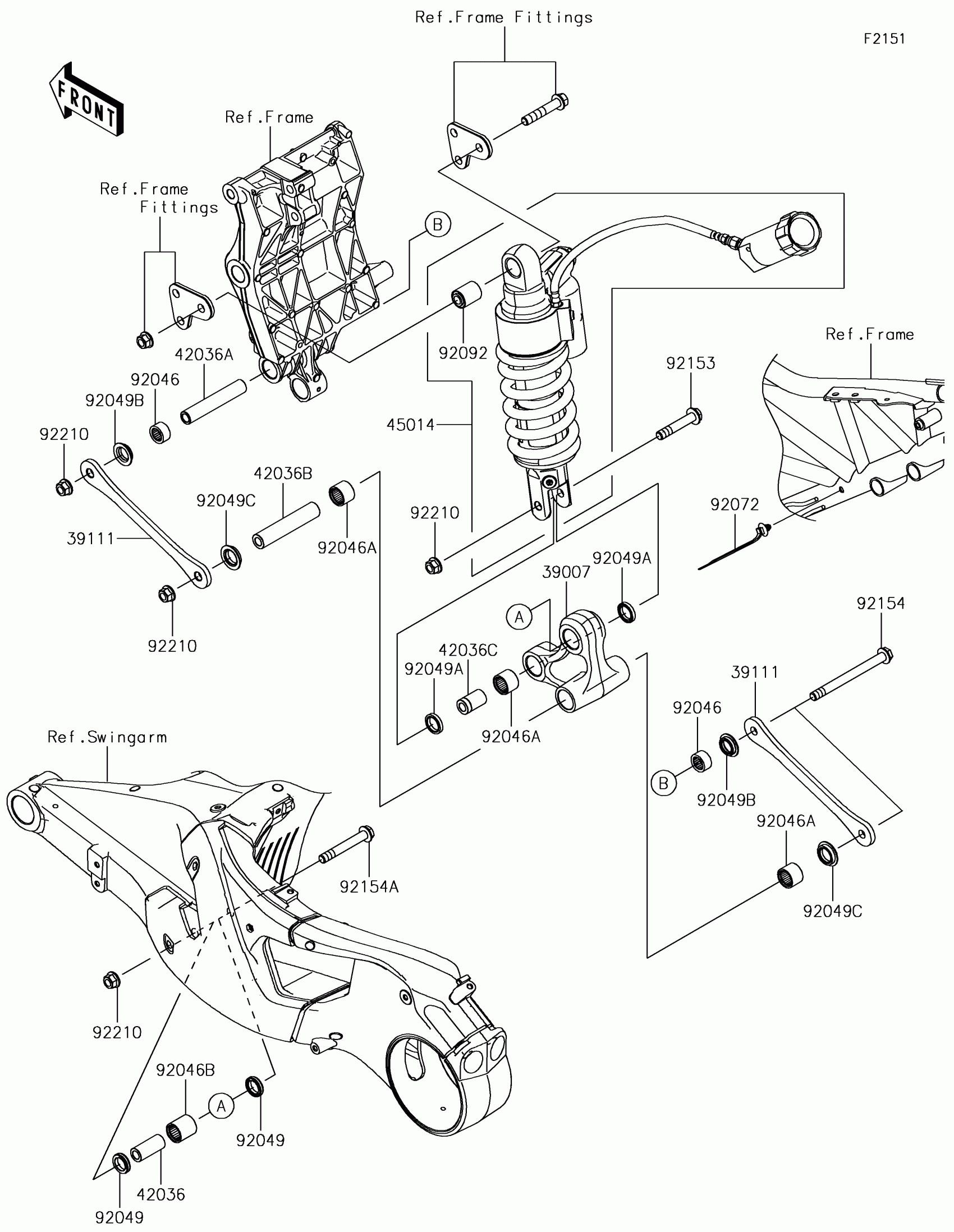

Kawasaki Ninja H2 SX SE Suspension/Shock Absorber Diagram
#
Description
Price
11057
BRACKET,MOTOR
11057-2073
$9.37
11057A
BRACKET
11057-7524
$6.04
11057B
BRACKET
11057-7525
$5.79
21175
CONTROL UNIT-ELECTRONIC,KECS
21175-1701
$974.89
21188
SOLENOID
21188-0020
$507.78
35063
STAY
35063-1439
$13.31
39007
ARM-SUSP
39007-0466
$252.07
39111
ROD-TIE,SUSPENSION
39111-0389
$64.45
42036
SLEEVE,10.1X18X90.5
42036-0828
$28.78
42036A
SLEEVE,10.1X20X39
42036-0835
$22.32
42036B
SLEEVE,10.1X18X30
42036-1258
$12.35
45014
SHOCKABSORBER,KECS
45014-0818
$4,084.21
92046
BEARING-NEEDLE,7E-HVS20X27X25
92046-1236
$19.86
92046A
BEARING-NEEDLE,SFYZM182417
92046-1272
$16.42
92049
SEAL-OIL,20X27X4
92049-0823
$32.94
92049A
SEAL-OIL,MHA18244
92049-1225
$9.28
92049B
SEAL-OIL,KCR MF018N1
92049-1493
$9.19
92075
DAMPER,SHOCKABSORBER
92075-1426
$12.32
92153
BOLT,FLANGED,10X55
92153-1546
$7.75
92154
BOLT,FLANGED,10X114
92154-1553
$15.16
92154A
BOLT,FLANGED,10X75
92154-2312
$13.60
92161
DAMPER,ECU
92161-2137
$24.07
92171
CLAMP,EDGE CLIP
92171-1722
$8.05
92172
SCREW
92172-1252
$1.17
92173
CLAMP,12MM DIA.
92173-0736
$5.05
92173A
CLAMP,HOLDER CLIP
92173-0868
$3.02
92173B
CLAMP
92173-1918
$7.43
92173C
CLAMP
92173-2077
$6.75
92173D
CLAMP
92173-2161
$13.10
92200
WASHER,10.2X20X1.6
92200-0328
$3.90
92210
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
130
BOLT-FLANGED,6X16
130CB0616
$2.55
130A
BOLT-FLANGED,8X16
130CB0816
$2.80
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
