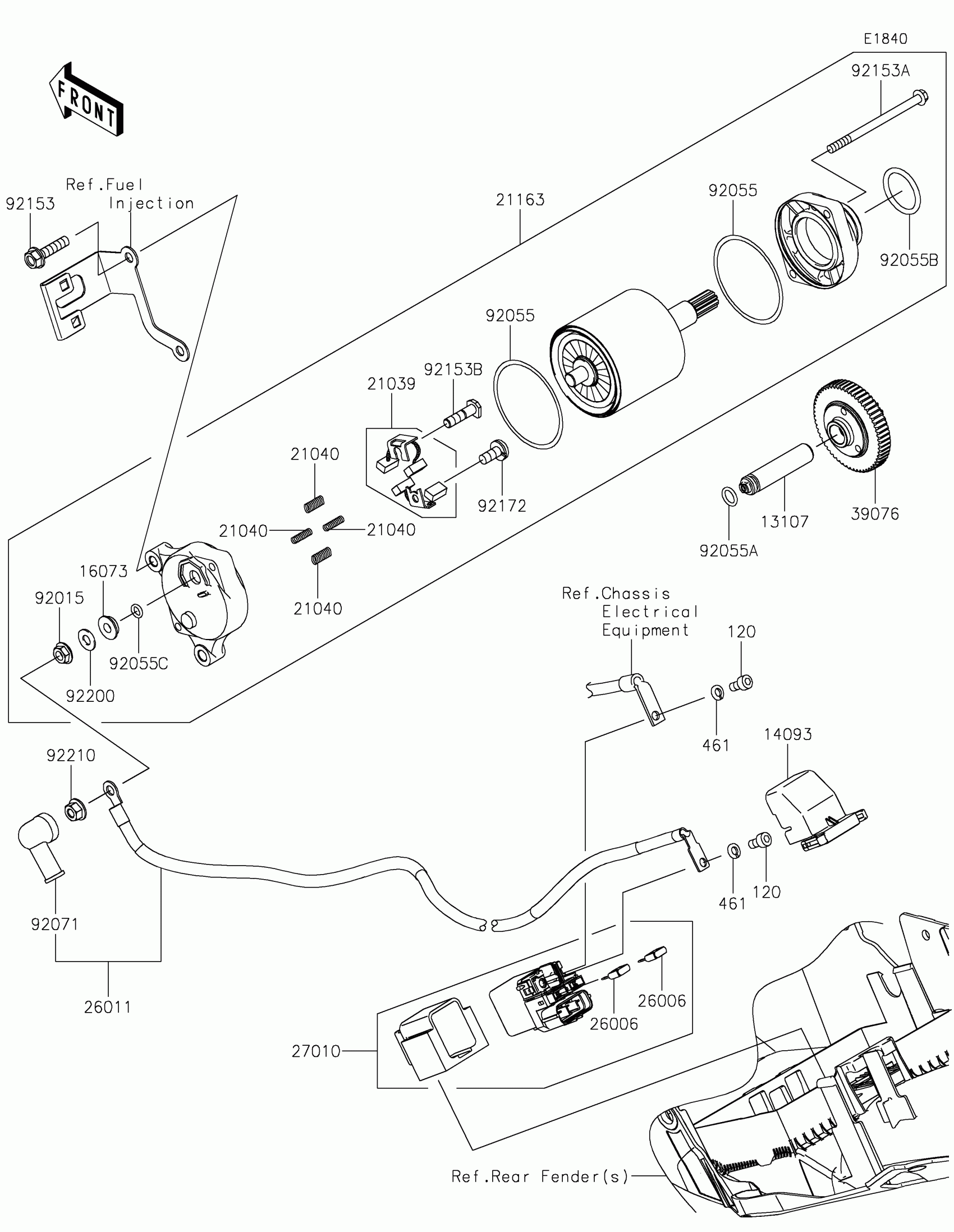

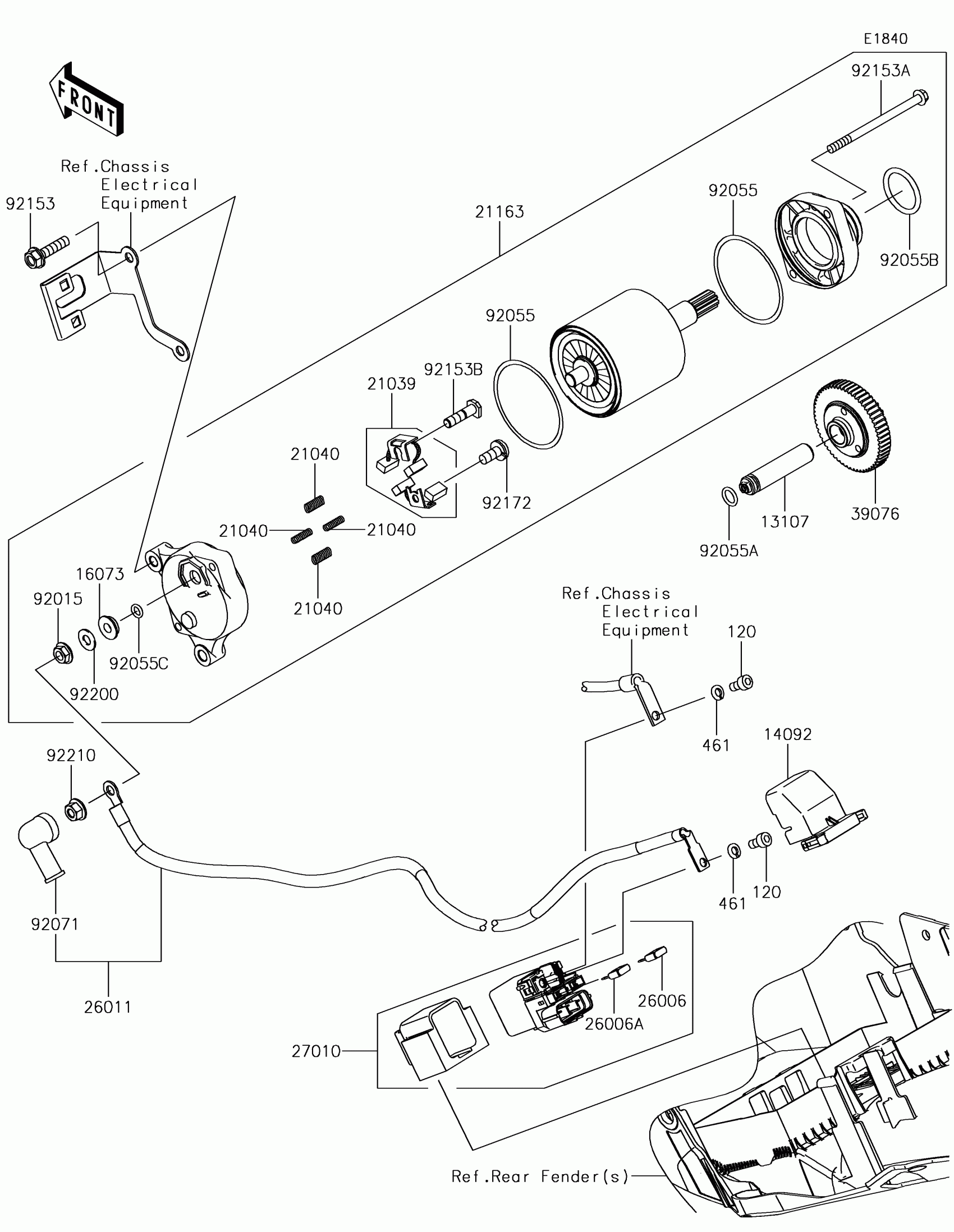

Kawasaki NINJA H2™ SX SE Starter Motor Diagram

Description

Price

120

BOLT-SOCKET,5X10

120CB0510

$1.64

13107

SHAFT

13107-0813

$58.52

14092

COVER

14092-0109

$9.50

16073

INSULATOR

16073-0053

$11.93

21039

BRUSH,CARBON

21039-0004

$117.72

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0767

$716.93

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,STARTER

26011-0978

$43.75

27010

SWITCH

27010-0773

$135.86

39076

LIMITER

39076-0025

$145.48

461

WASHER-SPRING,5MM

461DA0500

$0.71

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92055

RING-O

92055-0136

$7.75

92055A

RING-O,8.8X1.9

92055-099

$4.69

92055B

RING-O

92055-1276

$9.91

92055C

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0024

$10.21

92153

BOLT,FLANGED,6X25

92153-1592

$2.15

92153A

BOLT

92153-1850

$11.93

92153B

BOLT

92153-1866

$4.65

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

92210

NUT,6MM

92210-0188

$2.15
