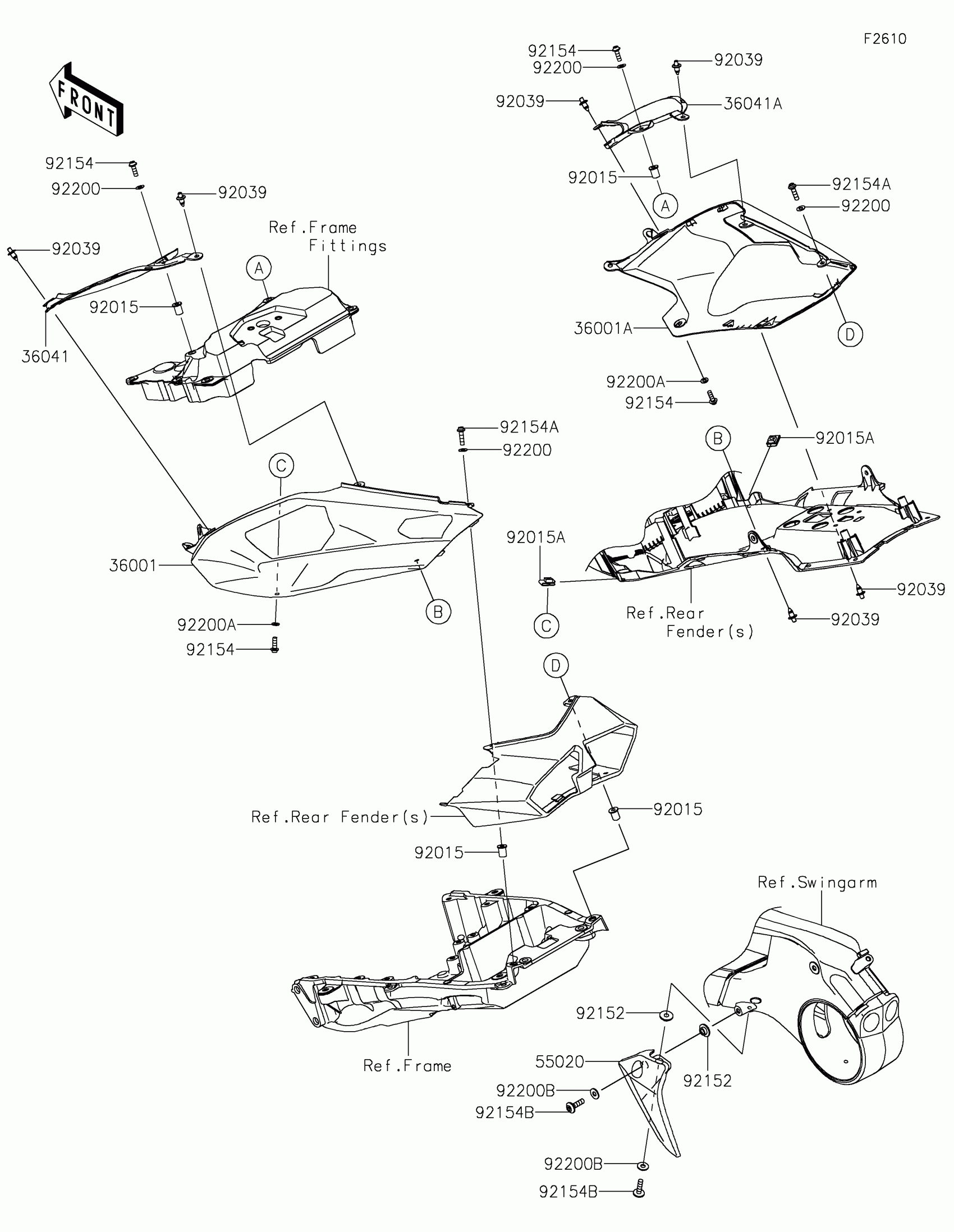

Kawasaki Ninja H2 SX SE Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,E.B.GREEN

36001-0680-60R

$110.51

36001A

COVER-SIDE,RH,E.B.GREEN

36001-0681-60R

$110.51

36041

COVER-TAIL,LH,E.B.GREEN

36041-0040-60R

$92.55

36041A

COVER-TAIL,RH,E.B.GREEN

36041-0041-60R

$92.55

55020

GUARD,SPROCKET

55020-1851

$13.20

92015

NUT,WELL,5MM

92015-1757

$7.29

92015A

NUT,5MM

92015-1996

$7.62

92039

RIVET

92039-0068

$2.97

92152

COLLAR,6.2X18X5.65

92152-1979

$22.51

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,SOCKET,6X22

92154-1810

$3.86

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,NYLON,5.2X12X1

92200-1011

$3.09

92200B

WASHER,6.2X15X1.2

92200-1762

$1.19
