Rear Fender(s)

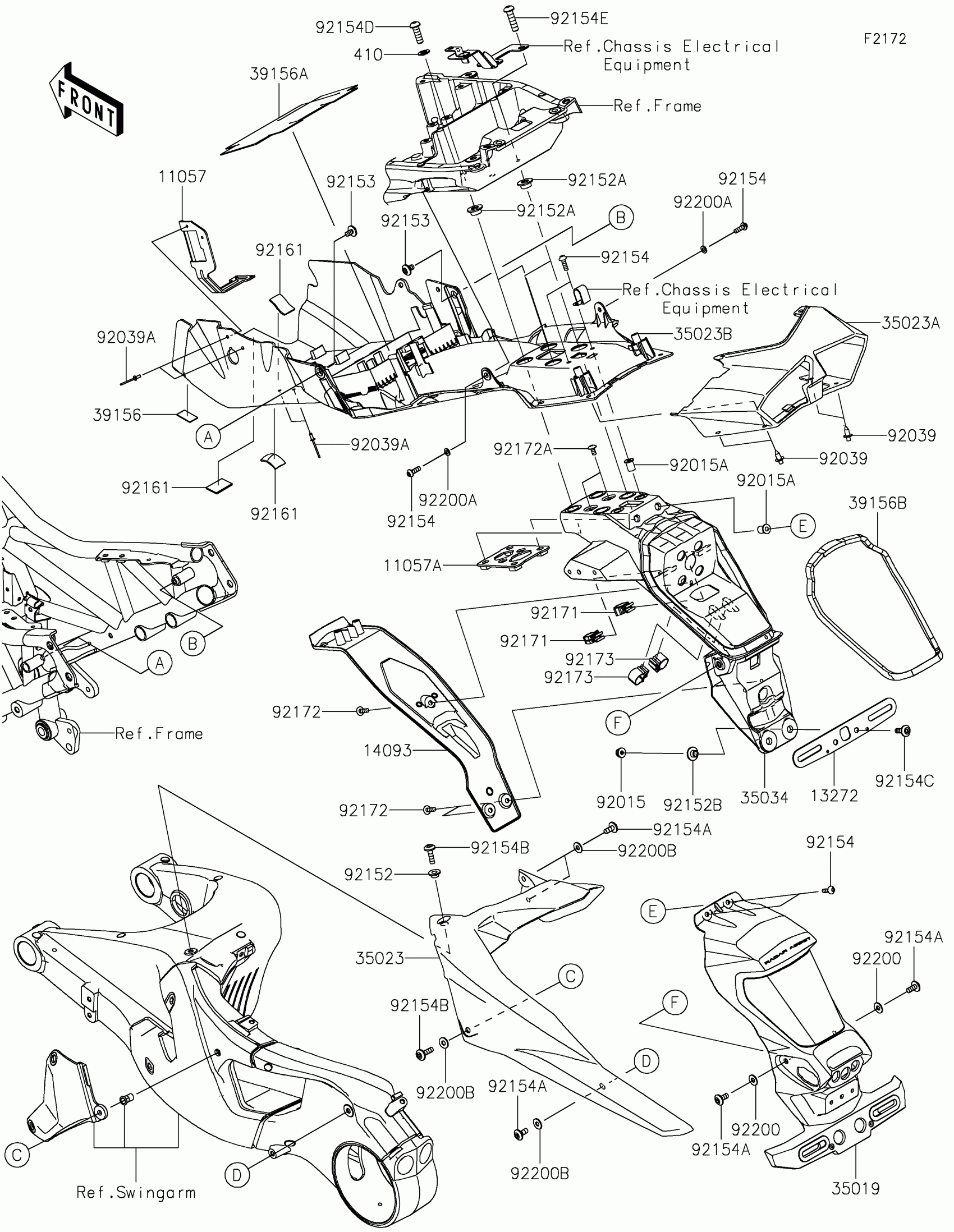

Kawasaki Ninja H2 SX SE Rear Fender(s) Diagram
#
Description
Price
11057
BRACKET,KEY CYLINDER
11057-1627
$17.30
11057A
BRACKET,NUMBER PLATE
11057-7210
$10.20
13272
PLATE
13272-3911
$8.26
14093
COVER,FLAP
14093-1125
$22.11
35019
FLAP
35019-0690
$115.35
35023
FENDER-REAR,HUGGER
35023-0442
$66.60
35023A
FENDER-REAR,TAIL
35023-0443
$49.10
35023B
FENDER-REAR
35023-0458
$140.05
35034
REINFORCE
35034-0612
$154.40
39156
PAD,15X25X1
39156-2119
$1.84
39156A
PAD
39156-2487
$25.79
39156B
PAD
39156-2710
$17.22
92015
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92015A
NUT,WELL,5MM
92015-1757
$7.29
92039
RIVET
92039-0068
$2.97
92039A
RIVET,3.2X9.5
92039-0752
$0.95
92152
COLLAR,6.5X10X6.2
92152-2152
$3.29
92152A
COLLAR
92152-2959
$9.95
92152B
COLLAR
92152-2963
$9.71
92153
BOLT,SOCKET,6X14
92153-1021
$2.67
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,6X14
92154-1807
$3.29
92154B
BOLT,SOCKET,6X22
92154-1810
$3.86
92154C
BOLT,SOCKET,6X18
92154-2438
$2.23
92154D
BOLT,SOCKET,8X25
92154-4459
$3.04
92154E
BOLT,SOCKET,8X30
92154-4460
$3.53
92161
DAMPER,30X20X2
92161-0833
$1.63
92171
CLAMP,EDGE CLIP
92171-1722
$8.05
92172
SCREW,TAPPING,5X16
92172-0175
$1.78
92172A
SCREW,TAPPING,5X10
92172-0335
$2.15
92173
CLAMP,CLIP
92173-0127
$15.62
92200
WASHER,6.2X15X1.2
92200-1762
$1.19
92200A
WASHER,5.2X10X1.0
92200-1820
$0.63
92200B
WASHER,6.2X15X1.2
92200-1937
$2.44
410
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
