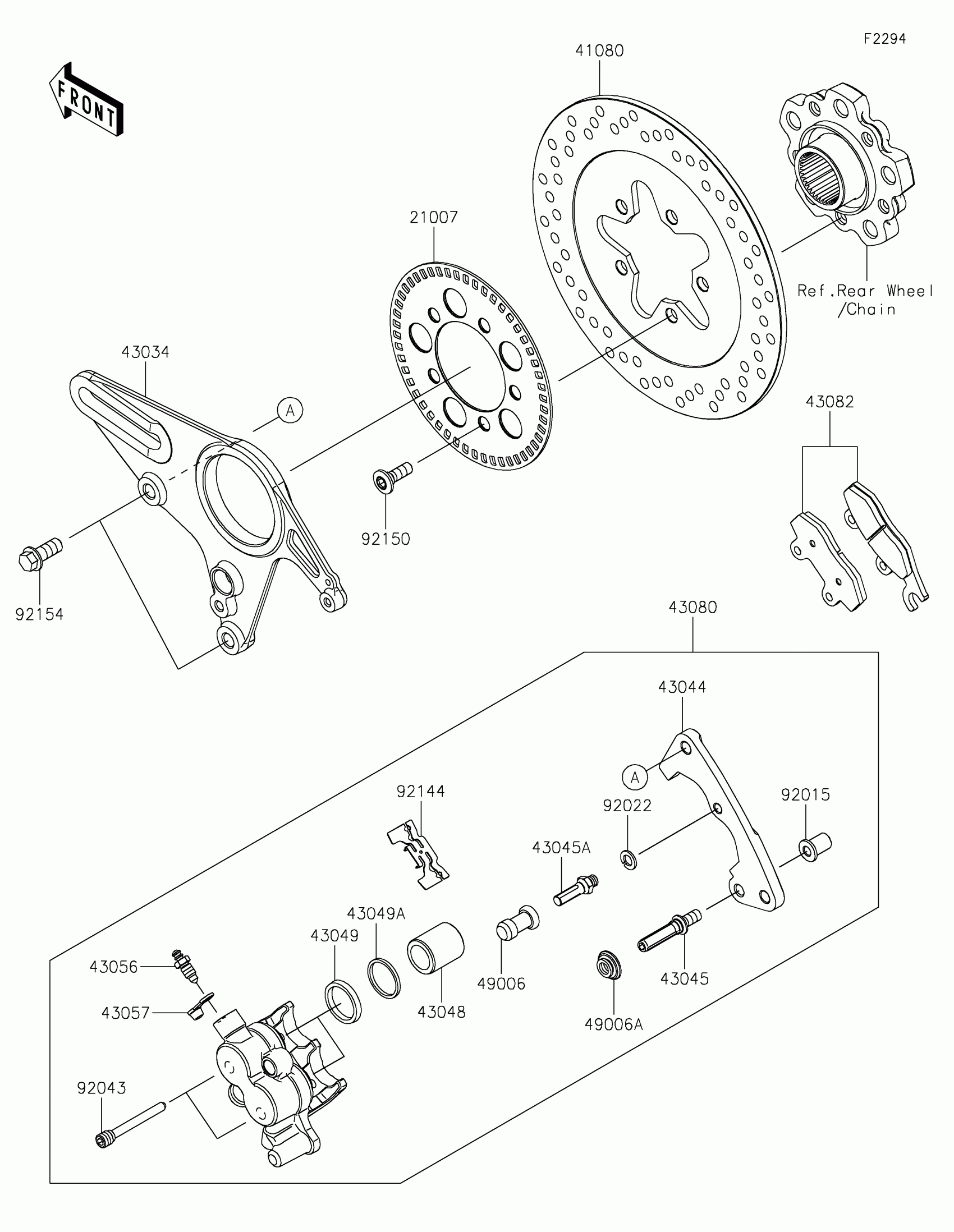

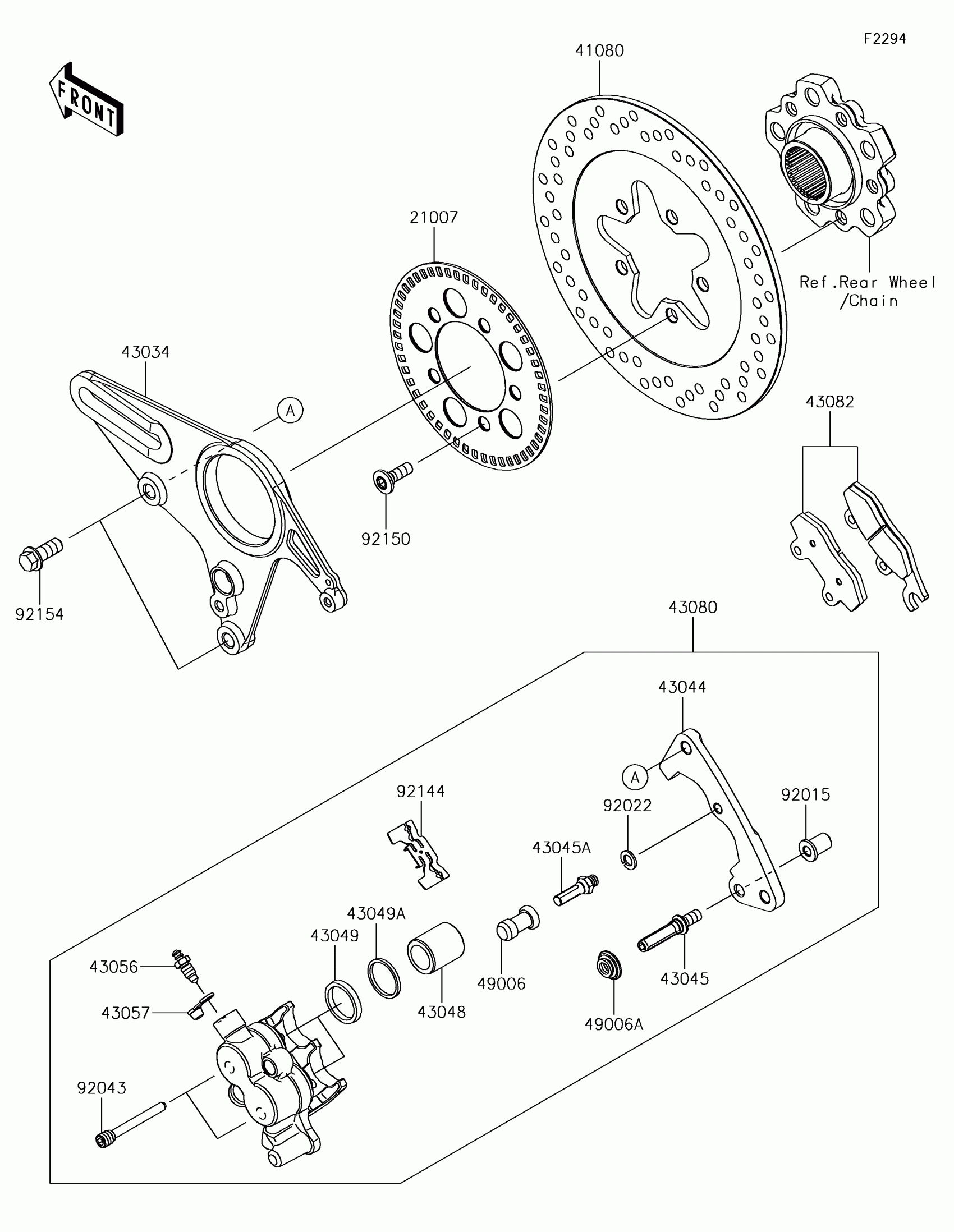

Kawasaki NINJA H2™ SX SE Rear Brake Diagram

Description

Price

21007

ROTOR,SENSOR,RR

21007-0662

$45.24

41080

DISC,RR,250MM

41080-0694

$340.58

43034

HOLDER-BRAKE

43034-0139

$421.57

43044

HOLDER-COMP-CALIPER

43044-0084

$110.36

43045

SHAFT-CALIPER

43045-0011

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,2P,BLACK

43080-0192-DJ

$302.58

43082

PAD-ASSY-BRAKE

43082-0179

$87.40

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92150

BOLT,8X25

92150-1858

$7.84

92154

BOLT,CALIPER,10X25

92154-2835

$4.85
