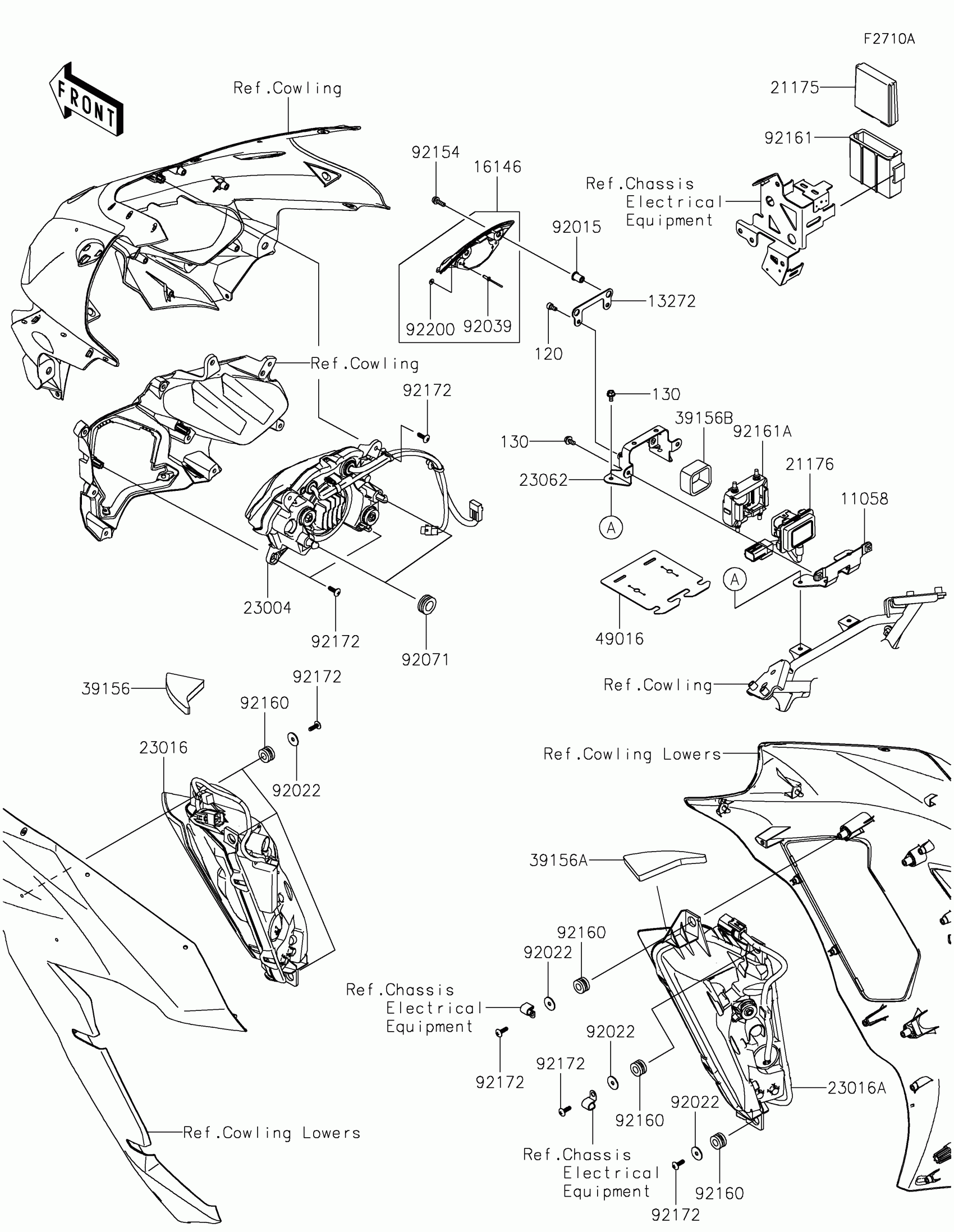

Kawasaki Ninja H2 SX SE Headlight(s)(RPFNN/RRFNN) Diagram

Description

Price

11058

BRACKET,AHB CAMERA,RR

11058-0462

$11.75

13272

PLATE

13272-4138

$2.42

16146

COVER-ASSY,AHB CAMERA

16146-0916

$265.07

21175

CONTROL UNIT-ELECTRONIC,H.LAMP

21175-1698

$285.96

21176

SENSOR,AHB CAMERA

21176-1155

$795.63

23004

LAMP-HEAD,LED

23004-0425

$1,397.16

23016

LAMP-ASSY,LED,CORNERING,LH

23016-0635

$1,118.23

23016A

LAMP-ASSY,LED,CORNERING,RH

23016-0636

$493.89

23062

BRACKET-COMP,AHB CAMERA,FR

23062-1399

$24.46

39156

PAD

39156-2446

$7.44

39156A

PAD

39156-2447

$7.44

39156B

PAD

39156-2830

$7.54

49016

COVER-SEAL

49016-0704

$22.53

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,5.5X20X1.2

92022-1405

$3.29

92039

RIVET,3.2X9.5

92039-0752

$0.81

92071

GROMMET

92071-1131

$5.93

92154

BOLT,SOCKET,5X16

92154-4372

$1.17

92160

DAMPER,10X20X12

92160-1167

$3.57

92161

DAMPER,HEAD LAMP,ECU

92161-2396

$23.44

92161A

DAMPER,AHB CAMERA

92161-2486

$30.68

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,3.3X8X0.5

92200-0514

$0.74

120

BOLT-SOCKET,5X10

120CB0510

Unavailable

130

BOLT-FLANGED,5X10

130BB0510

$4.19
