Description

Price

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

14069

BREATHER,TANK

14069-0008

$6.89

14093

COVER,TANK,FR

14093-0676

$13.66

14093A

COVER,KNEE,LH,M.D.BLACK+GRN

14093-5205-62F

$353.21

14093B

COVER,KNEE,RH,M.D.BLACK+GRN

14093-5206-62F

$353.21

32052

BRACKET-TANK

32052-0811

$18.31

32052A

BRACKET-TANK

32052-0812

$87.14

39085

PAD-TANK

39085-0011

$120.02

39156

PAD,20X30X4

39156-0705

$0.42

39156A

PAD,FUEL TANK,LWR

39156-2229

$117.08

39156B

PAD,FUEL TANK,LH

39156-2253

$30.68

39156C

PAD,FUEL TANK,RH

39156-2254

$30.68

39156D

PAD,50X250X3

39156-2257

$7.22

39156E

PAD,43X95X8,LH

39156-2290

$6.10

39156F

PAD,43X95X8,RH

39156-2291

$6.10

39156G

PAD,113X100X2

39156-2307

$9.74

39156H

PAD,30X50X8

39156-2317

$1.81

51001

TANK-COMP-FUEL,E.B.GREEN

51001-0858-60R

$1,396.51

51026

COVER TANK,LH,M.D.BLACK

51026-0016-17K

$137.64

51026A

COVER TANK,RH,M.D.BLACK

51026-0017-17K

$137.64

51049

CAP-TANK

51049-0721

$140.61

52005

GAUGE,FUEL

52005-0763

$210.02

53044

TRIM

53044-0565

$3.35

53044A

TRIM,105MM

53044-0627

$3.24

53044B

TRIM,450MM

53044-0628

$7.85

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,TUBE

92037-010

$3.92

92039

RIVET

92039-0068

$2.97

92072

BAND,202X3.6

92072-0782

$1.97

92075

DAMPER,6X16X7

92075-1011

$7.33

92075A

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92152

COLLAR,6.3X10X14.5

92152-0091

$11.71

92152A

COLLAR,6.8X10X60

92152-1182

$4.83

92152B

COLLAR,6.5X16X4.6

92152-2495

$4.85

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

130

BOLT-FLANGED,6X75

130BA0675

$1.63

130A

BOLT-FLANGED,6X22

130CA0622

$2.70

702

TUBE-RUBBER,6X9X120

702A06120

$1.27

702A

TUBE-RUBBER,6X9X700

702A06700

$16.57

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,6X22

92154-1810

$3.86

92154B

BOLT,FLANGED,5X12

92154-1856

$1.78

92154C

BOLT,SOCKET,6X12

92154-2706

$1.78

92161

DAMPER

92161-0365

$5.33

92161A

DAMPER,FUEL TANK

92161-1737

$5.69

92161B

DAMPER,LH,T1.5

92161-2143

$40.27

92161C

DAMPER,LH,T8

92161-2144

$71.80

92161D

DAMPER,RH,T1.5

92161-2145

$44.96

92161E

DAMPER,RH,T8

92161-2146

$67.34

92192

TUBE,DRAIN,6X9X808

92192-1669

$10.62

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,6.5X22X1.6

92200-1087

$3.94

92037

CLAMP,TUBE

92037-010

$3.92

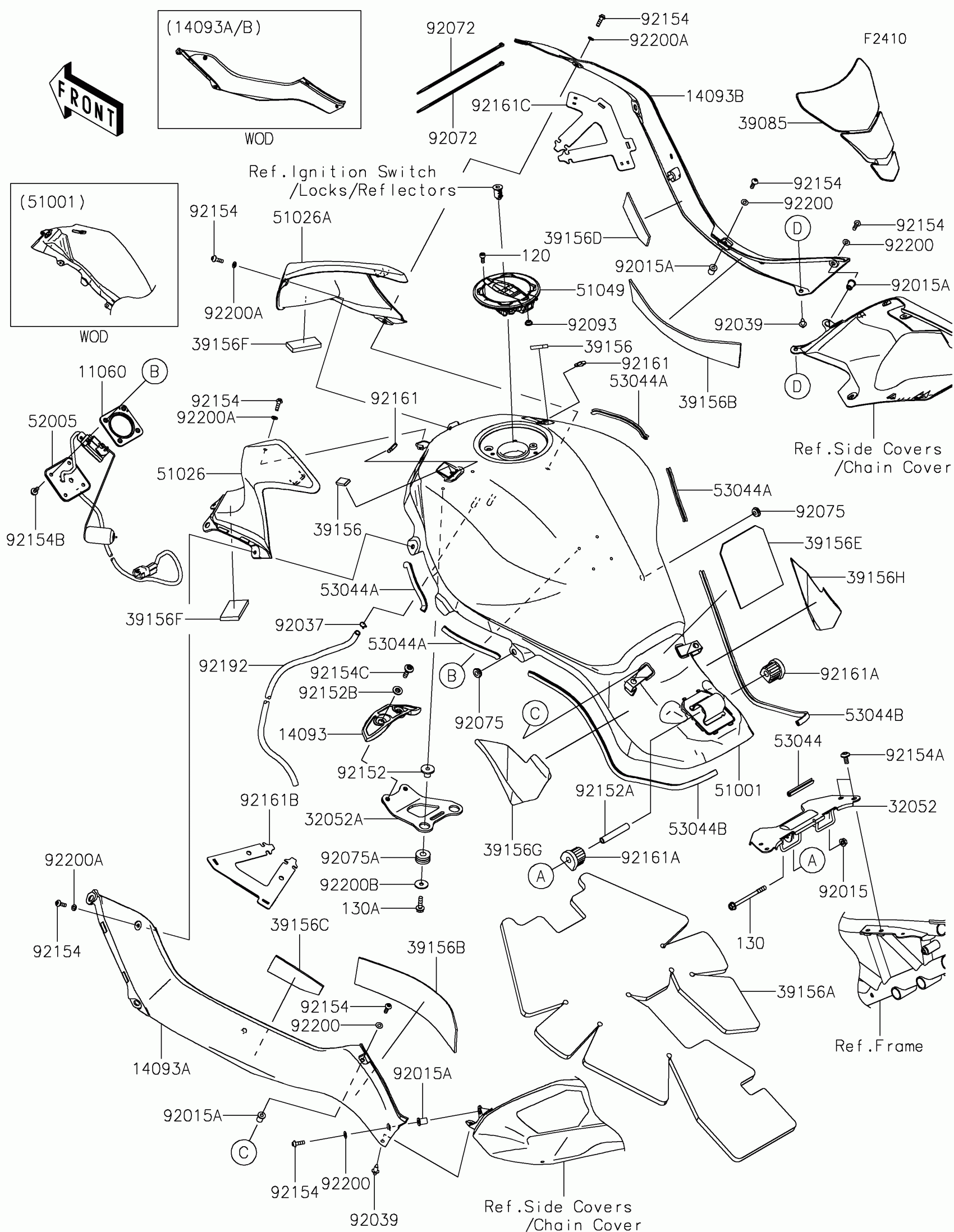

Kawasaki NINJA H2™ SX SE Fuel Tank Diagram

GASKET,FUEL GAUGE

BREATHER,TANK

COVER,TANK,FR

COVER,KNEE,LH,M.D.BLACK+GRN

COVER,KNEE,RH,M.D.BLACK+GRN

BRACKET-TANK

BRACKET-TANK

PAD-TANK

PAD,20X30X4

PAD,FUEL TANK,LWR

PAD,FUEL TANK,LH

PAD,FUEL TANK,RH

PAD,50X250X3

PAD,43X95X8,LH

PAD,43X95X8,RH

PAD,113X100X2

PAD,30X50X8

TANK-COMP-FUEL,E.B.GREEN

COVER TANK,LH,M.D.BLACK

COVER TANK,RH,M.D.BLACK

CAP-TANK

GAUGE,FUEL

TRIM

TRIM,105MM

TRIM,450MM

NUT,FLANGED,6MM

NUT,WELL,5MM

CLAMP,TUBE

RIVET

BAND,202X3.6

DAMPER,6X16X7

DAMPER,10X24X12

SEAL,FUEL TANK CAP

COLLAR,6.3X10X14.5

COLLAR,6.8X10X60

COLLAR,6.5X16X4.6

BOLT,SOCKET,5X16

BOLT-FLANGED,6X75

BOLT-FLANGED,6X22

TUBE-RUBBER,6X9X120

TUBE-RUBBER,6X9X700

BOLT,SOCKET,5X16

BOLT,SOCKET,6X22

BOLT,FLANGED,5X12

BOLT,SOCKET,6X12

DAMPER

DAMPER,FUEL TANK

DAMPER,LH,T1.5

DAMPER,LH,T8

DAMPER,RH,T1.5

DAMPER,RH,T8

TUBE,DRAIN,6X9X808

WASHER,NYLONE,5.3X11.5X0.5

WASHER,6.5X22X1.6

CLAMP,TUBE
