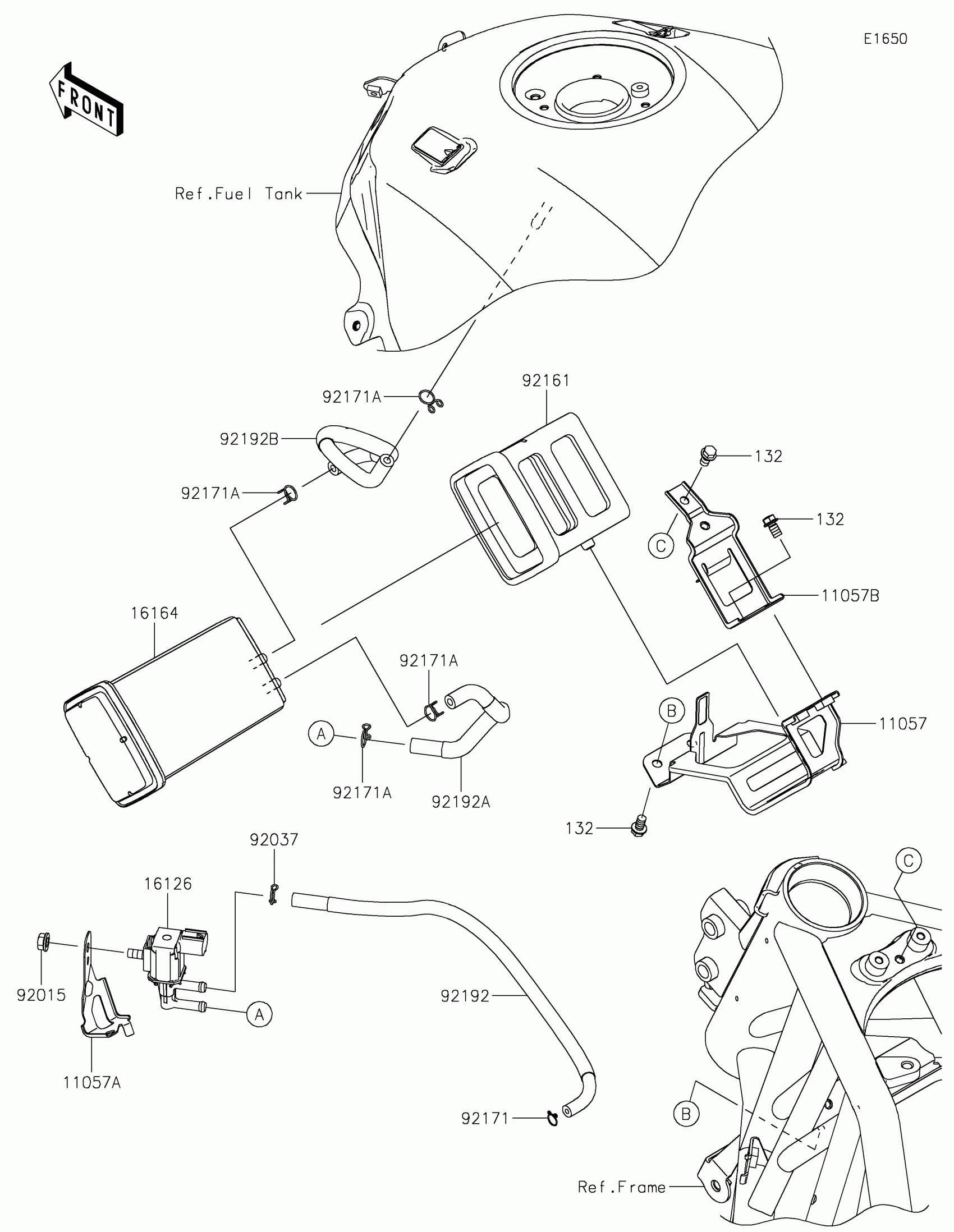

Kawasaki Ninja H2 SX SE Fuel Evaporative System Diagram

Description

Price

11057

BRACKET,CANISTER,LWR

11057-1202

$24.05

11057A

BRACKET,PVC VALVE

11057-1204

$9.20

11057B

BRACKET,CANISTER,UPP

11057-7256

$9.85

16126

VALVE,PCV

16126-0731

$109.25

16164

CANISTER

16164-0012

$152.89

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP

92037-1712

$3.81

92161

DAMPER,CANISTER

92161-1715

$16.78

92171

CLAMP

92171-0573

$1.20

92171A

CLAMP

92171-0718

$1.81

92192

TUBE,THROTTLE BODY-PVC VALVE

92192-1830

$53.31

92192A

TUBE,CANISTER-PVC VALVE

92192-1831

$43.91

92192B

TUBE,CANISTER-FUEL TANK

92192-1832

$55.13

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27
