2018 Kawasaki Ninja H2™ SX Se Fuel Injection Diagram

← All diagrams

Find the part on the Fuel Injection diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

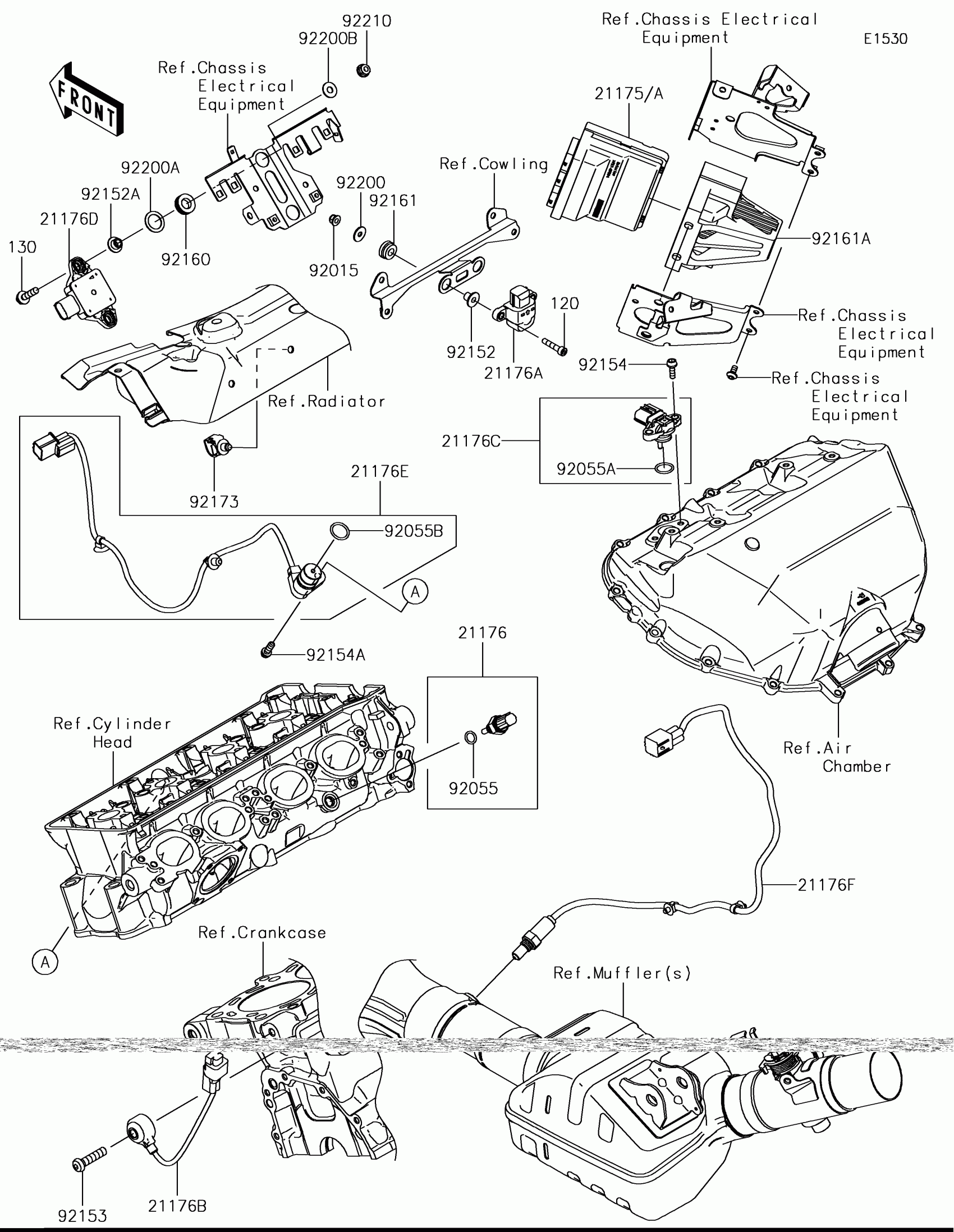

2018 Kawasaki Ninja H2™ SX Se Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X25

120R0525

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1
Out of stock

21175

CONTROL UNIT-ELECTRONIC

21175-1346

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1351

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,VEHICLE-DOWN

21176-0026

1
Out of stock

21176B

SENSOR,KNOCK

21176-0788

1
Out of stock

21176C

SENSOR,INTAKE TEMP&PRESSURE

21176-0791

1
Out of stock

21176D

SENSOR,GYRO

21176-0819

1
Out of stock

21176E

SENSOR,CAM ANGLE

21176-0866

1
Out of stock

21176F

SENSOR,OXYGEN

21176-0868

1
Out of stock

92015

NUT,LOCK,FLANGED,5MM

92015-1752

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92055A

RING-O

92055-0842

1
Out of stock

92055B

RING-O

92055-1639

1
Out of stock

92152

COLLAR

92152-0329

1
Out of stock

92152A

COLLAR,6.5X16X7.3

92152-2336

1
Out of stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1449

1
Out of stock

92154A

BOLT,SOCKET,6X16

92154-1454

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER

92161-1187

1
Out of stock

92161A

DAMPER,ECU

92161-2123

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92200

WASHER

92200-0288

1
Out of stock

92200A

WASHER,15.5X22X0.8

92200-2214

1
Out of stock

92200B

WASHER,6.5X16X1.0

92200-3712

1
Out of stock

92210

NUT,LOCK,FLANGED,6MM

92210-0303

1
Out of stock
