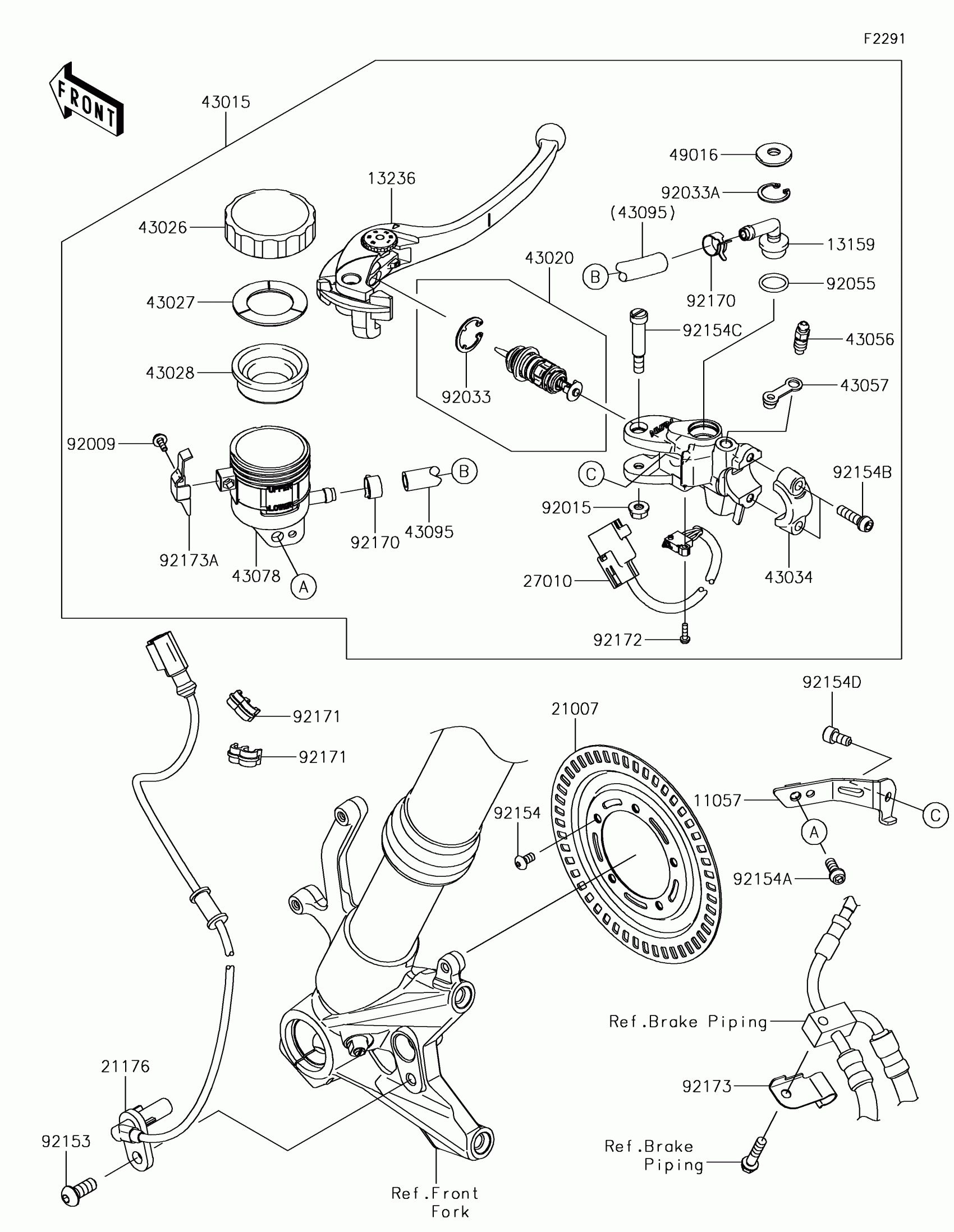

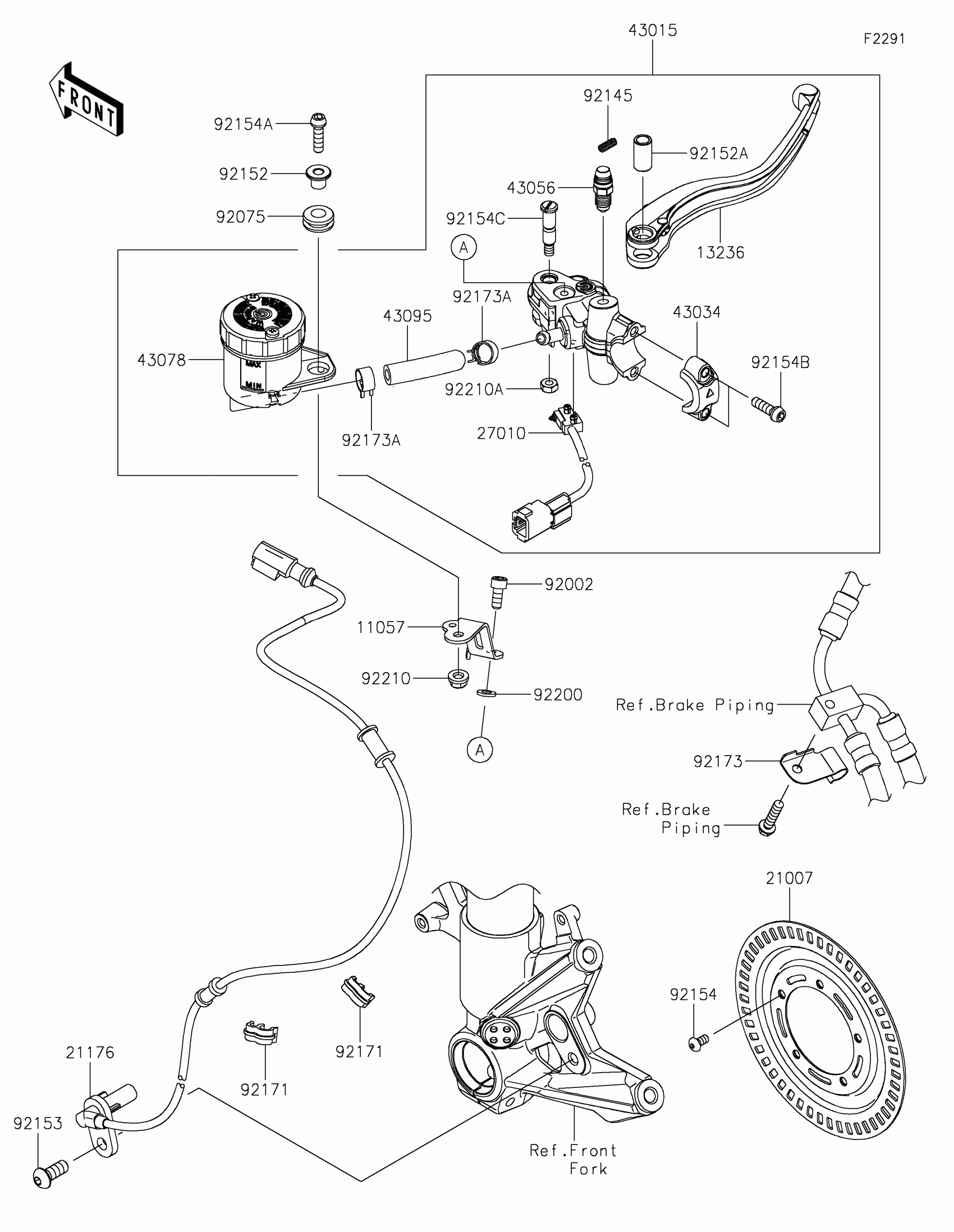

Kawasaki NINJA H2™ SX SE Front Master Cylinder Diagram

#

Description
Price

11057

BRACKET,RESERVOIR

11057-1314

$10.00

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FR BRAKE

13236-0802

$71.47

21007

ROTOR,SENSOR,FR

21007-0657

$44.54

21176

SENSOR,SPEED,FR

21176-0876

$108.38

27010

SWITCH

27010-0870

$76.28

43015

CYLINDER-ASSY-MASTER,FR

43015-0674

$433.96

43020

PISTON-COMP-BRAKE

43020-0028

$65.94

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43078

RESERVOIR

43078-0591

$30.88

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0366

$13.04

49016

COVER-SEAL

49016-1147

$6.29

92009

SCREW

92009-1570

$3.09

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92153

BOLT,SOCKET,8X20

92153-0912

$2.61

92154

BOLT,SOCKET,5X10

92154-1292

$1.48

92154A

BOLT,SOCKET,6X16

92154-1454

$1.19

92154B

BOLT,SOCKET,6X22

92154-1724

$2.49

92154C

BOLT,LEVER

92154-1912

$7.83

92154D

BOLT,SOCKET,6X8

92154-2914

$2.17

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0921

$4.65

92172

SCREW

92172-1243

$0.64

92173

CLAMP

92173-0086

$5.05

92173A

CLAMP

92173-1790

$11.55
