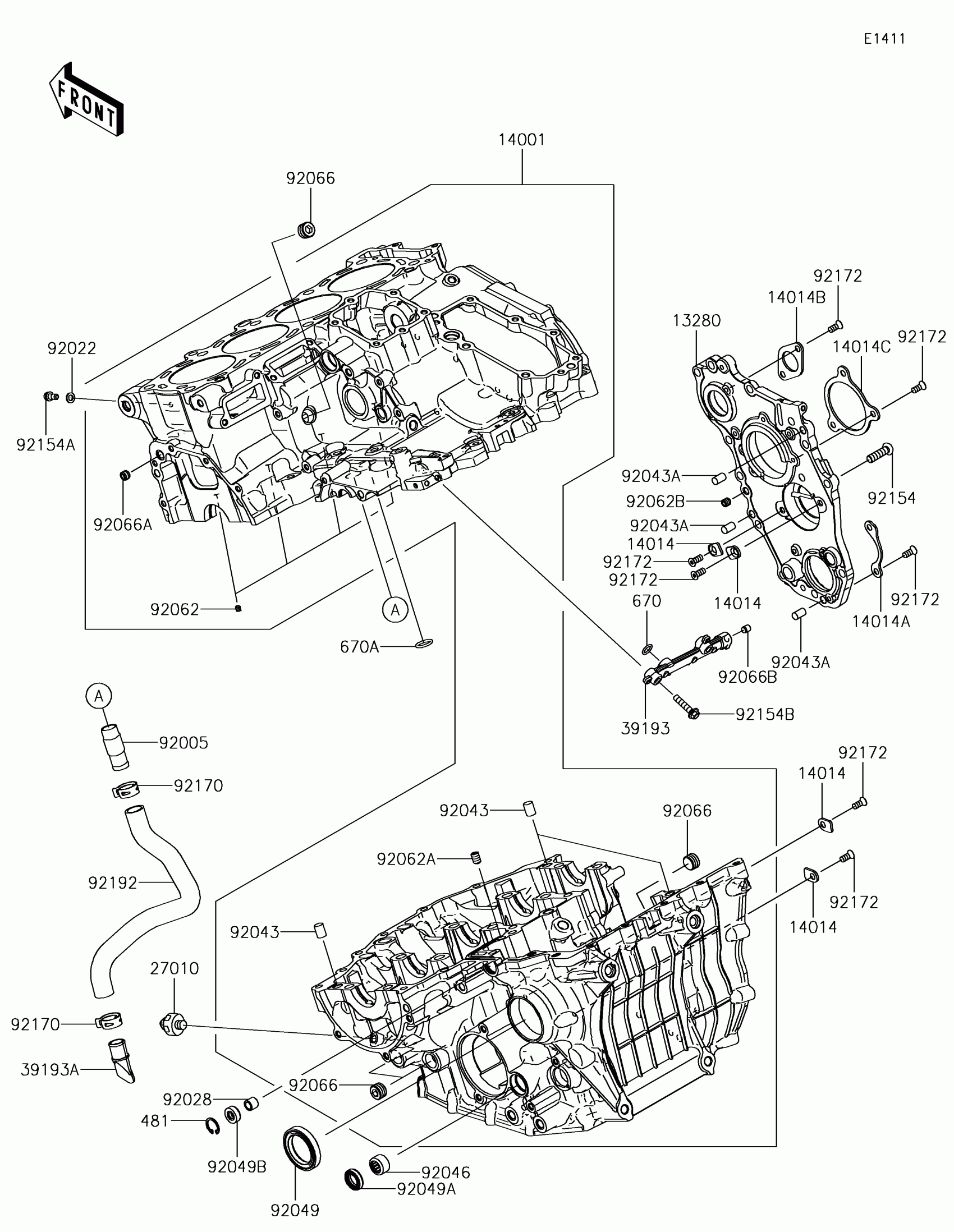

Kawasaki Ninja H2 SX SE Crankcase Diagram

#

Description
Price

13280

HOLDER,TRANSMISSION

13280-0799

$278.13

14001

SET-CRANKCASE

14001-0745

$2,600.43

14014

PLATE-POSITION

14014-0569

$7.33

14014A

PLATE-POSITION,CHANGE DRUM

14014-0571

$17.37

14014B

PLATE-POSITION,COUNTER SHAFT

14014-0572

$19.45

14014C

PLATE-POSITION

14014-0575

$25.57

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

39193

PIPE-OIL

39193-0581

$157.68

39193A

PIPE-OIL

39193-0582

$23.31

92005

FITTING

92005-0773

$21.77

92022

WASHER,6.2X11X1

92022-304

$3.65

92028

BUSHING,8X12X10

92028-1750

$7.27

92043

PIN,10X14

92043-1506

$3.32

92043A

PIN,8X14

92043-1567

$2.26

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL,TC 35X50X8

92049-1452

$13.75

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92049B

SEAL-OIL

92049-1566

$7.65

92062

NOZZLE

92062-0004

$4.49

92062A

NOZZLE

92062-0031

$15.97

92062B

NOZZLE

92062-0032

$14.94

92066

PLUG

92066-0831

$5.62

92066A

PLUG,PT1/8X7

92066-0876

$27.10

92066B

PLUG,OIL LINE,7.2X8

92066-1012

$6.51

92154

BOLT,TORX,8X28

92154-0415

$2.67

92154A

BOLT,SOCKET,6X12

92154-1453

$1.19

92154B

BOLT,FLANGED,6X28

92154-1845

$2.15

92170

CLAMP

92170-1640

$2.26

92172

SCREW,TORX,6X14

92172-0906

$2.26

92192

TUBE,BREATHER DRAIN

92192-1437

$87.25

481

CIRCLIP-TYPE-C,18MM

481J1800

$4.31

670

O RING,9.8X1.9

670B1510

$4.31

670A

O RING,15MM

670D2015

$1.62
