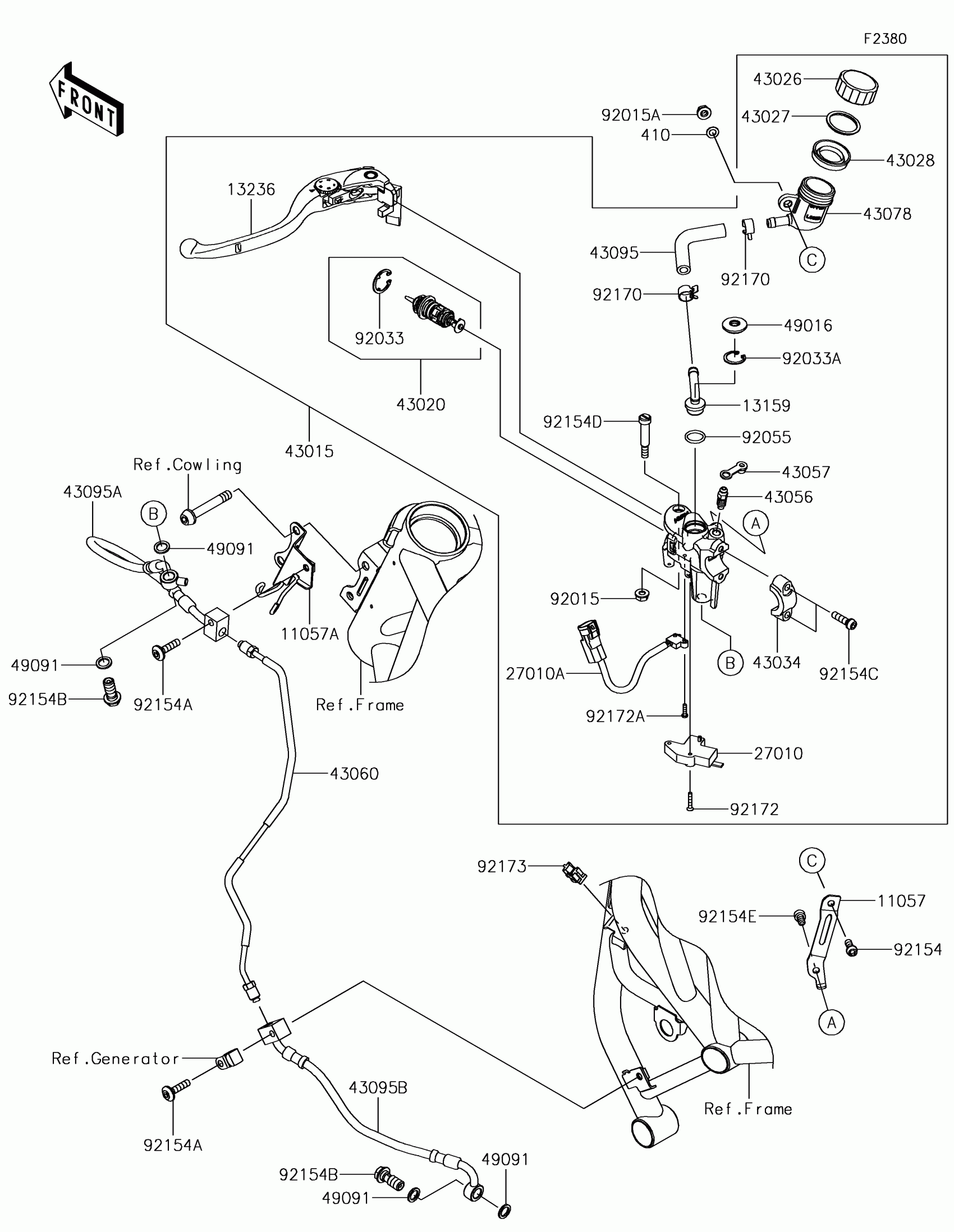

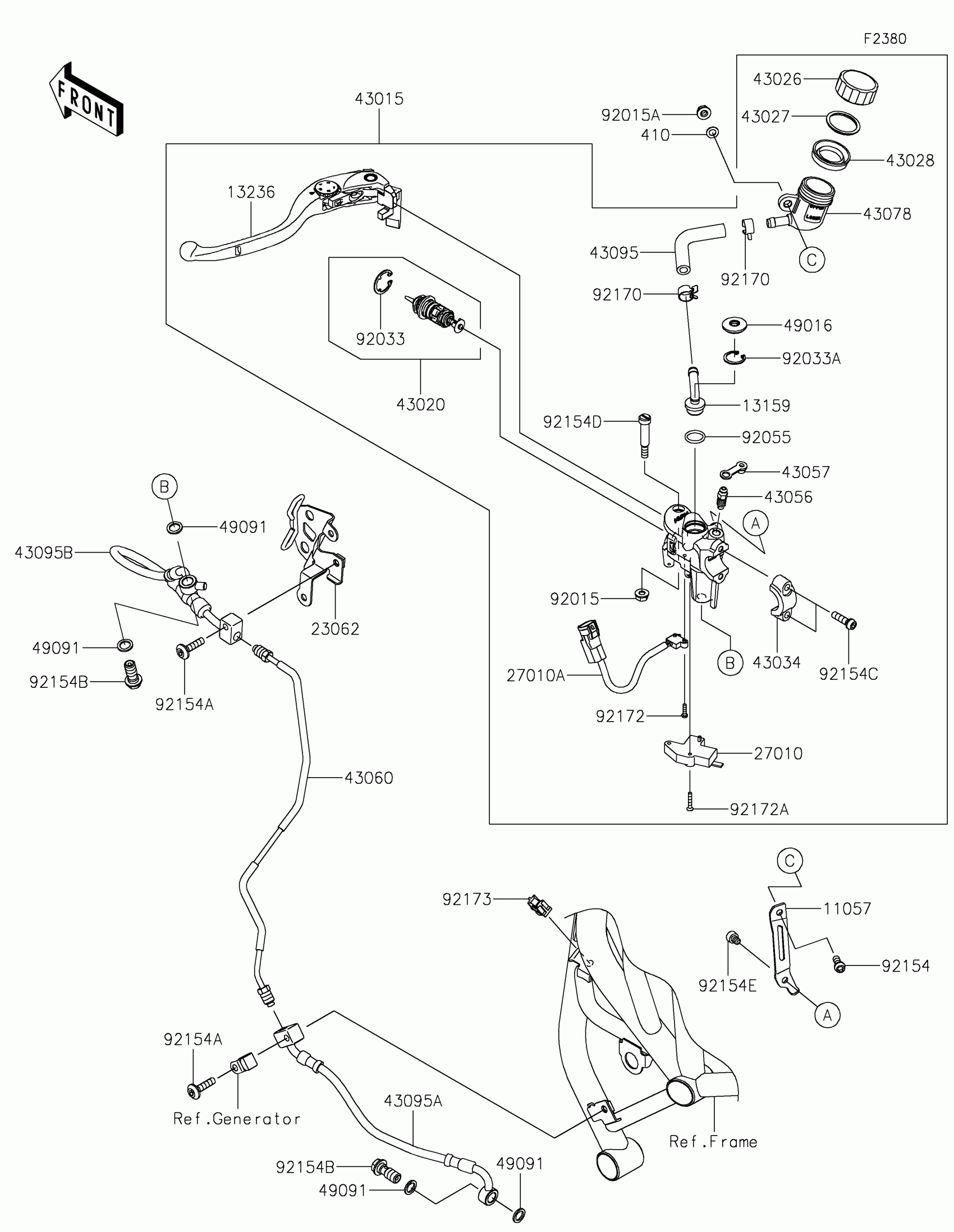

Kawasaki NINJA H2™ SX SE Clutch Master Cylinder Diagram

#

Description
Price

11057

BRACKET,RESERVOIR

11057-1278

$10.36

11057A

BRACKET

11057-1279

$31.99

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,CLUTCH

13236-0803

$81.42

27010

SWITCH,CLUTCH

27010-0854

$32.97

27010A

SWITCH

27010-0871

$68.08

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-0672

$453.75

43020

PISTON-COMP-BRAKE

43020-0028

$65.94

43026

CAP-BRAKE

43026-1070

$33.90

43027

PLATE-DIAPHRAGM

43027-1054

$5.67

43028

DIAPHRAGM

43028-1073

$19.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0056

$23.08

43056

BREATHER-BRAKE

43056-1056

$14.30

43057

CAP-BREATHER

43057-1001

$4.91

43060

PIPE-BRAKE,CLUTCH

43060-0332

$65.24

43078

RESERVOIR

43078-0580

$29.89

43095

HOSE-BRAKE,FR MASTER CYLINDER

43095-0040

$11.98

43095A

HOSE-BRAKE,CLUTCH MC-JOINT

43095-1497

$206.70

43095B

HOSE-BRAKE,JOINT-ENG

43095-1498

$167.48

49016

COVER-SEAL

49016-1147

$6.29

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92033

RING-SNAP

92033-0034

$4.55

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,14.8X2.4

92055-0741

$3.71

92154

BOLT,SOCKET,6X16

92154-1454

$1.19

92154A

BOLT,SOCKET,6X25

92154-1532

$2.34

92154B

BOLT,BANJO,10X23

92154-1712

$3.94

92154C

BOLT,SOCKET,6X22

92154-1724

$2.49

92154D

BOLT,LEVER

92154-1912

$7.83

92154E

BOLT,SOCKET,6X8

92154-2914

$2.17

92170

CLAMP,HOSE

92170-1091

$5.00

92172

SCREW

92172-1242

$1.17

92172A

SCREW

92172-1243

$0.64

92173

CLAMP

92173-0951

$1.63
