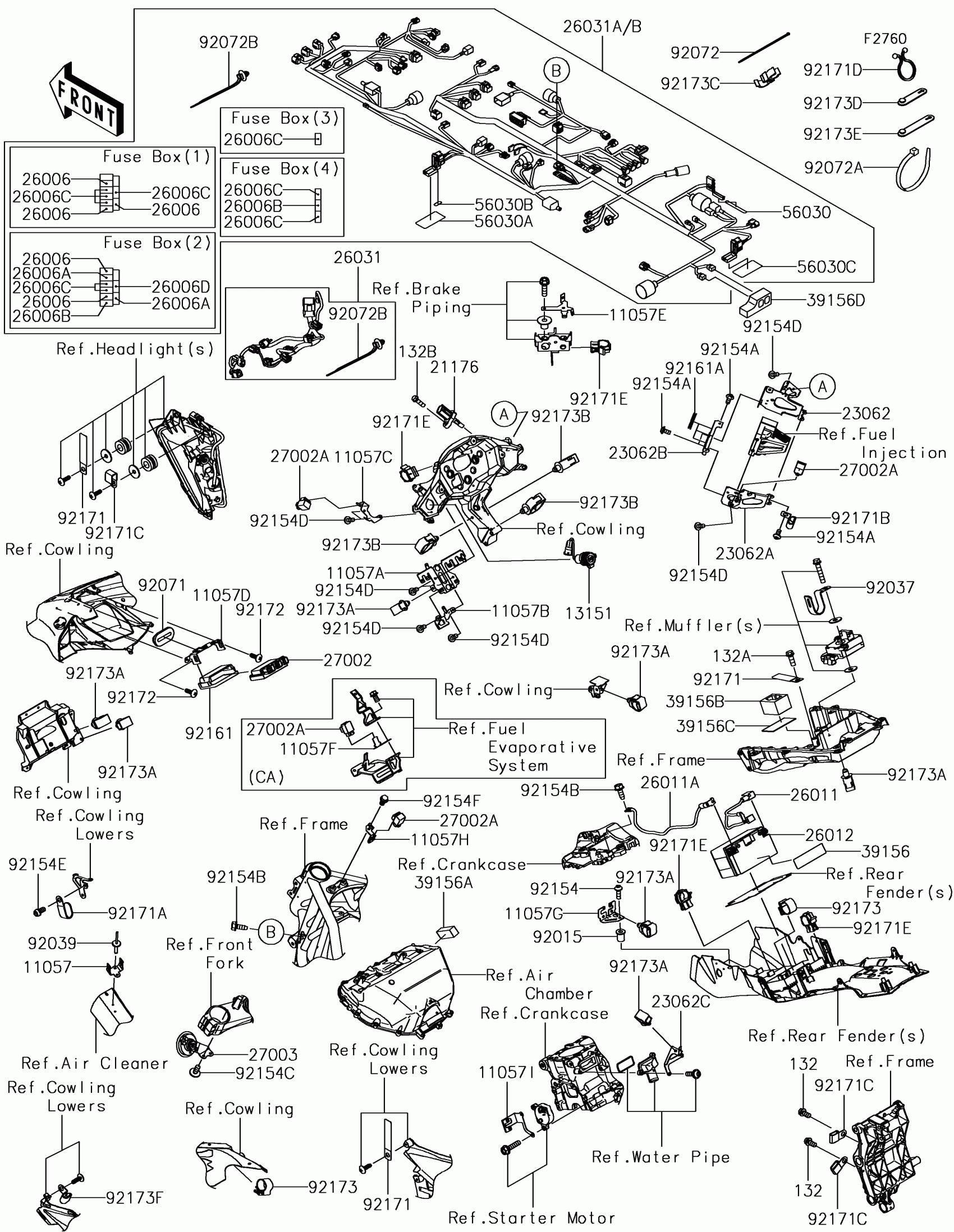

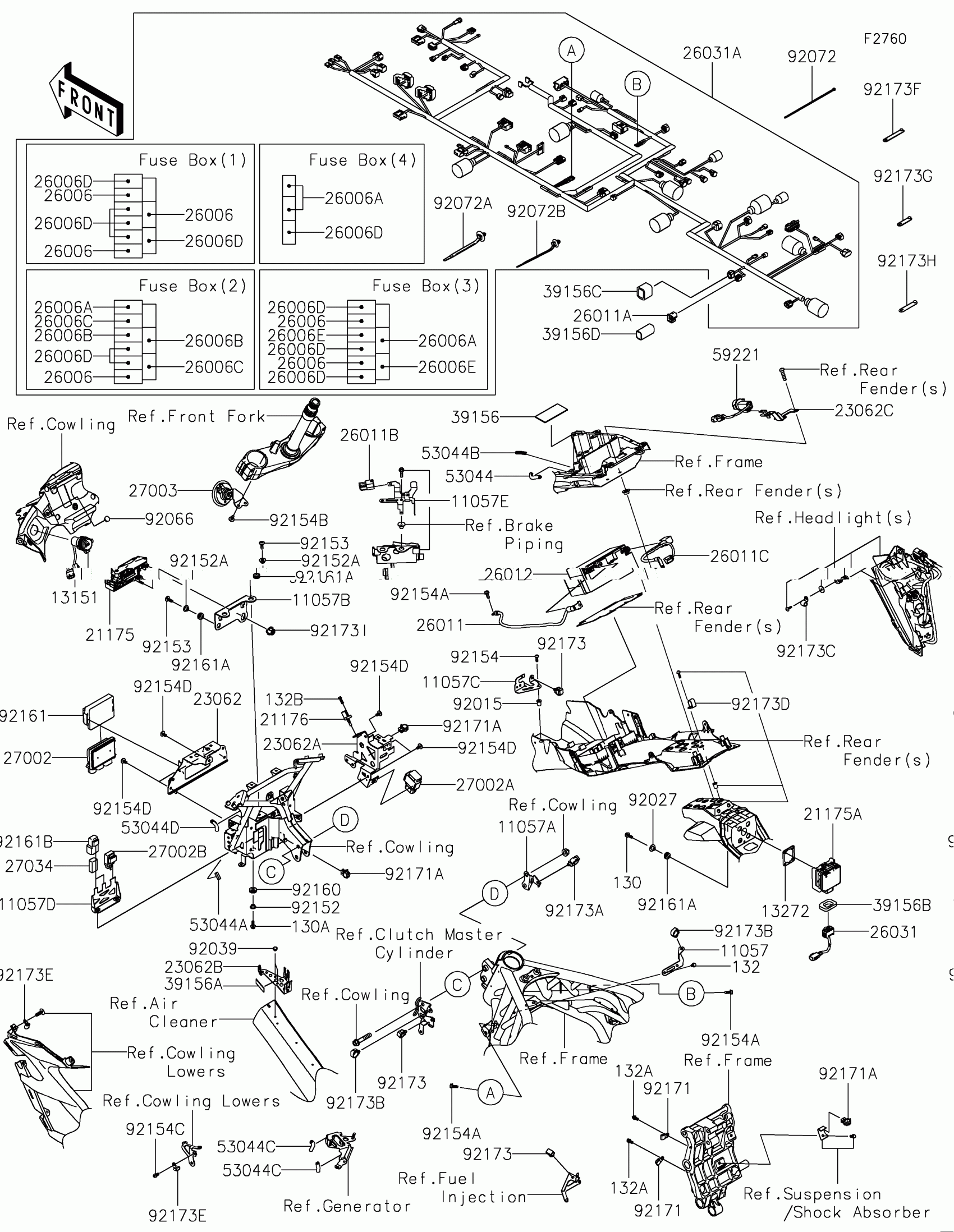

Kawasaki NINJA H2™ SX SE Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,GRIP HEATER

11057-1280

$6.35

11057A

BRACKET,GYRO SENSOR

11057-1281

$40.54

11057B

BRACKET,CONNECTOR

11057-1282

$14.63

11057C

BRACKET,FUSE BOX

11057-1283

$8.22

11057D

BRACKET,RELAY BOX

11057-1284

$11.71

11057E

BRACKET,SUB HARNESS CONNECTOR

11057-1476

$9.83

11057F

BRACKET,RELAY

11057-1477

$8.22

11057G

BRACKET,RR FENDER

11057-1481

$12.51

11057H

BRACKET,RELAY

11057-1636

$12.77

11057I

BRACKET,STARTER

11057-1655

$15.89

13151

SWITCH-COMP,DC OUTLET

13151-0579

$142.87

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP,ECU,OUTER

23062-0973

$48.28

23062A

BRACKET-COMP,ECU,INNER

23062-0974

$46.71

23062B

BRACKET-COMP,ECU,COVER

23062-0994

$38.67

23062C

BRACKET-COMP,WATER PIPE

23062-1154

$12.58

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0983

$48.82

26011A

WIRE-LEAD,BATTERY(-)

26011-1856

$65.84

26012

BATTERY,YTZ10S,12V 8.6AH

26012-0564

Unavailable

26031

HARNESS,SUB

26031-2370

$206.56

26031A

HARNESS,MAIN

26031-2495

$1,589.92

26031B

HARNESS,MAIN

26031-2496

$1,589.92

27002

RELAY-ASSY,BOX

27002-0025

$143.14

27002A

RELAY-ASSY

27002-1062

$45.39

27003

HORN

27003-0138

$87.78

39156

PAD,30X115X0.36

39156-1895

$13.63

39156A

PAD,25X65X20

39156-1945

$2.13

39156B

PAD

39156-2314

$9.74

39156C

PAD,40X90X2

39156-2339

$3.21

39156D

PAD,DIAG,40X30X96

39156-2400

$7.78

56030

LABEL,FUSE BOX4

56030-1374

$3.23

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132B

BOLT-FLANGED-SMALL

132BB0516

$1.28

56030A

LABEL,FUSE BOX1

56030-1376

$3.23

56030B

LABEL,FUSE BOX3

56030-1378

$3.23

56030C

LABEL,FUSE BOX2

56030-1408

$3.23

92015

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92039

RIVET

92039-0039

$3.90

92071

GROMMET

92071-0013

$5.54

92072

BAND,202X3.6

92072-0782

$1.97

92072A

BAND,L=365

92072-1197

$7.84

92072B

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X10

92154-0211

$2.12

92154B

BOLT,FLANGED,6X16

92154-0551

$1.63

92154C

BOLT,SOCKET,6X14

92154-0745

$2.32

92154D

BOLT,SOCKET,5X12

92154-0917

$4.72

92154E

BOLT,SOCKET,6X12

92154-1453

$1.19

92154F

BOLT,FLANGED,6X10

92154-2819

$2.17

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,ECU

92161-2071

$5.40

92171

CLAMP,L=60

92171-0652

$2.61

92171A

CLAMP

92171-0739

$5.65

92171B

CLAMP

92171-0766

$5.65

92171C

CLAMP

92171-0813

$8.68

92171D

CLAMP

92171-1185

$2.46

92171E

CLAMP,EDGE CLIP

92171-1722

$8.05

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92173

CLAMP,CLIP

92173-0127

$15.62

92173A

CLAMP,12MM DIA.

92173-0736

$5.05

92173B

CLAMP

92173-0861

$3.02

92173C

CLAMP,PIPE

92173-0985

$4.41

92173D

CLAMP,RUBBER PLATE

92173-1229

$3.94

92173E

CLAMP

92173-1526

$3.94

92173F

CLAMP,12X45

92173-1839

$5.35
