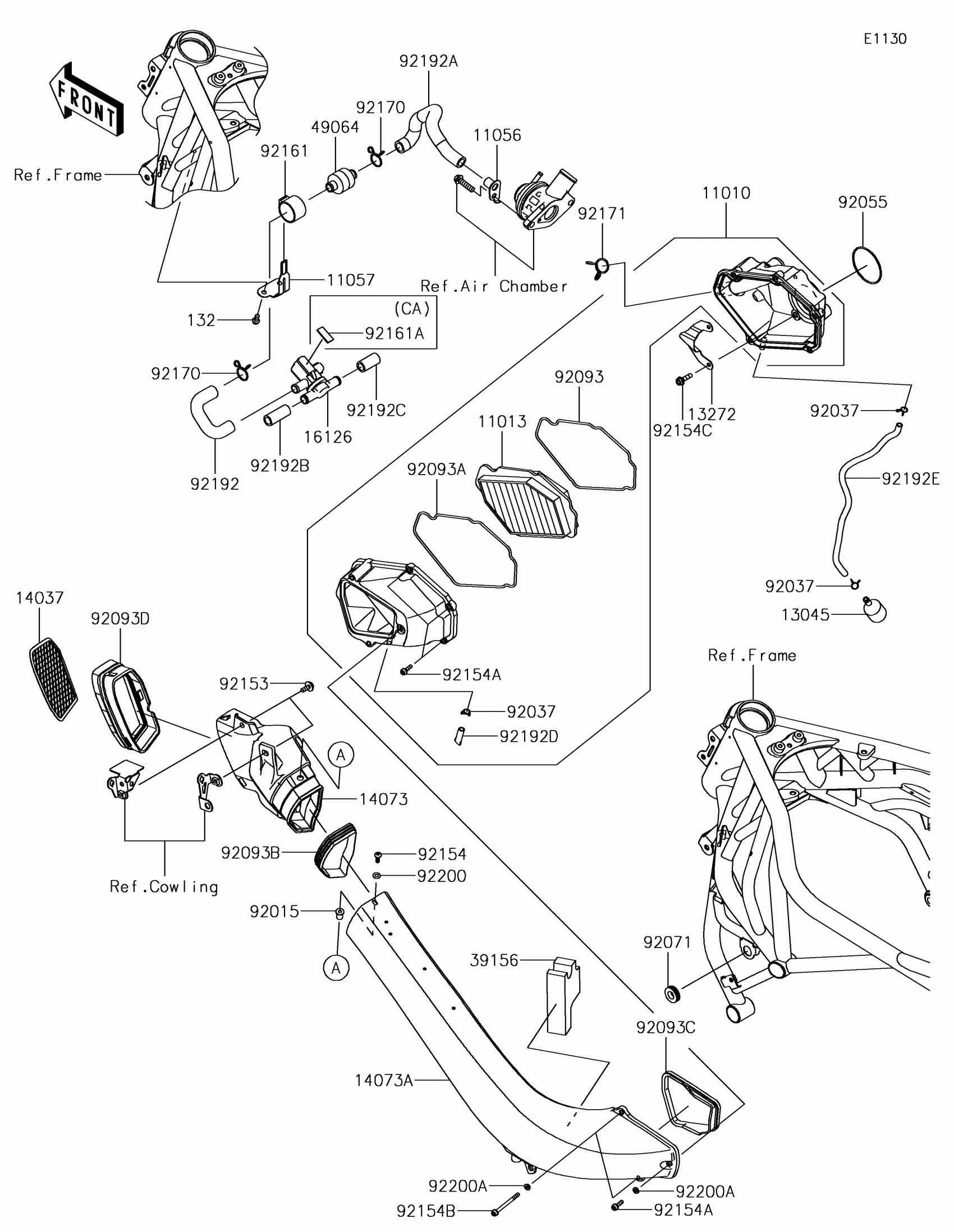

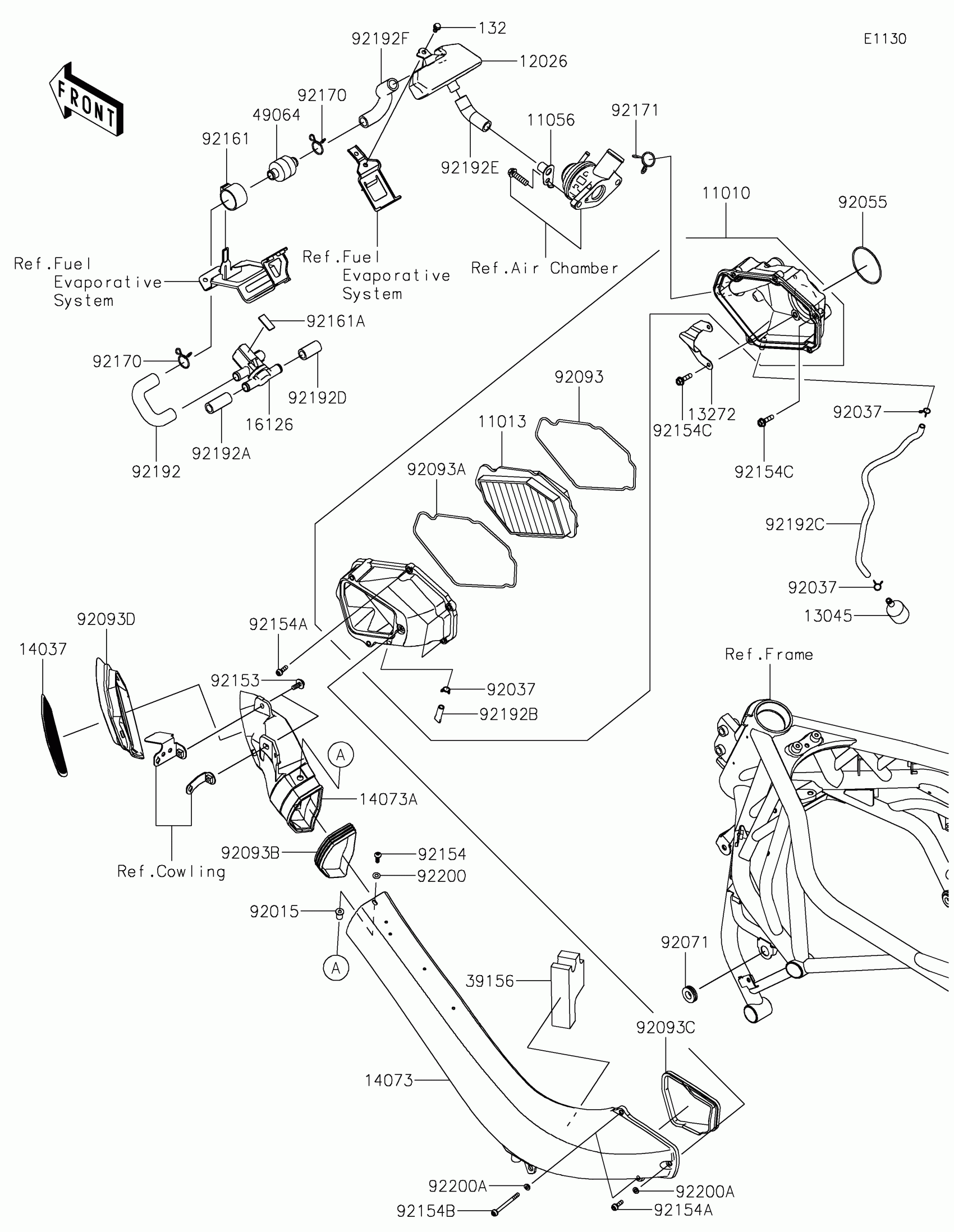

Kawasaki NINJA H2™ SX SE Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0880

$234.95

11013

ELEMENT-AIR FILTER

11013-0776

$37.51

11056

BRACKET,2ND AIR TUBE

11056-4479

$21.97

11057

BRACKET,FILTER

11057-1433

$9.56

13045

RECEIVER-OIL

13045-1057

$9.82

13272

PLATE

13272-2494

$7.89

14037

SCREEN

14037-0789

$58.36

14073

DUCT,RAM AIR,FR

14073-0879

$72.40

14073A

DUCT,RAM AIR,RR,M.S.BLACK

14073-0880-660

$825.93

16126

VALVE,AIR SWITCHING

16126-0745

$189.89

39156

PAD

39156-2376

$24.73

49064

FILTER-AIR

49064-0005

$21.29

92015

NUT,WELL,5MM

92015-1757

$7.29

92037

CLAMP

92037-1712

$5.00

92055

RING-O,59.6X2.4

92055-0894

$5.67

92071

GROMMET

92071-056

$4.26

92093

SEAL,ELEMENT

92093-0614

$9.84

92093A

SEAL,CASE

92093-0615

$7.52

92093B

SEAL,RR

92093-0619

$22.55

92093C

SEAL

92093-0620

$26.13

92093D

SEAL,FR

92093-0711

$29.07

92153

BOLT,UPSET-WP,6X16

92153-1587

$1.78

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X18

92154-1450

$1.19

92154B

BOLT,SOCKET,5X18

92154-1452

$2.75

92154C

BOLT,FLANGED,6X22

92154-3858

$2.17

92161

DAMPER,FILTER

92161-1713

$11.00

92161A

DAMPER,12X27X2

92161-2122

$3.21

92170

CLAMP

92170-1997

$2.67

92171

CLAMP

92171-0391

$4.15

92192

TUBE,ASWV-AIR FILTER

92192-1834

$7.36

92192A

TUBE,FILTER INLET

92192-1835

$24.82

92192B

TUBE,ASWV-HEAD CAP,LH

92192-1847

$14.99

92192C

TUBE,ASWV-HEAD CAP,RH

92192-1848

$15.27

92192D

TUBE,CAP

92192-1908

$3.54

92192E

TUBE,6X9X345

92192-1910

$5.06

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.59

92200A

WASHER,5.2X10X1.5

92200-2217

$3.92

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71
