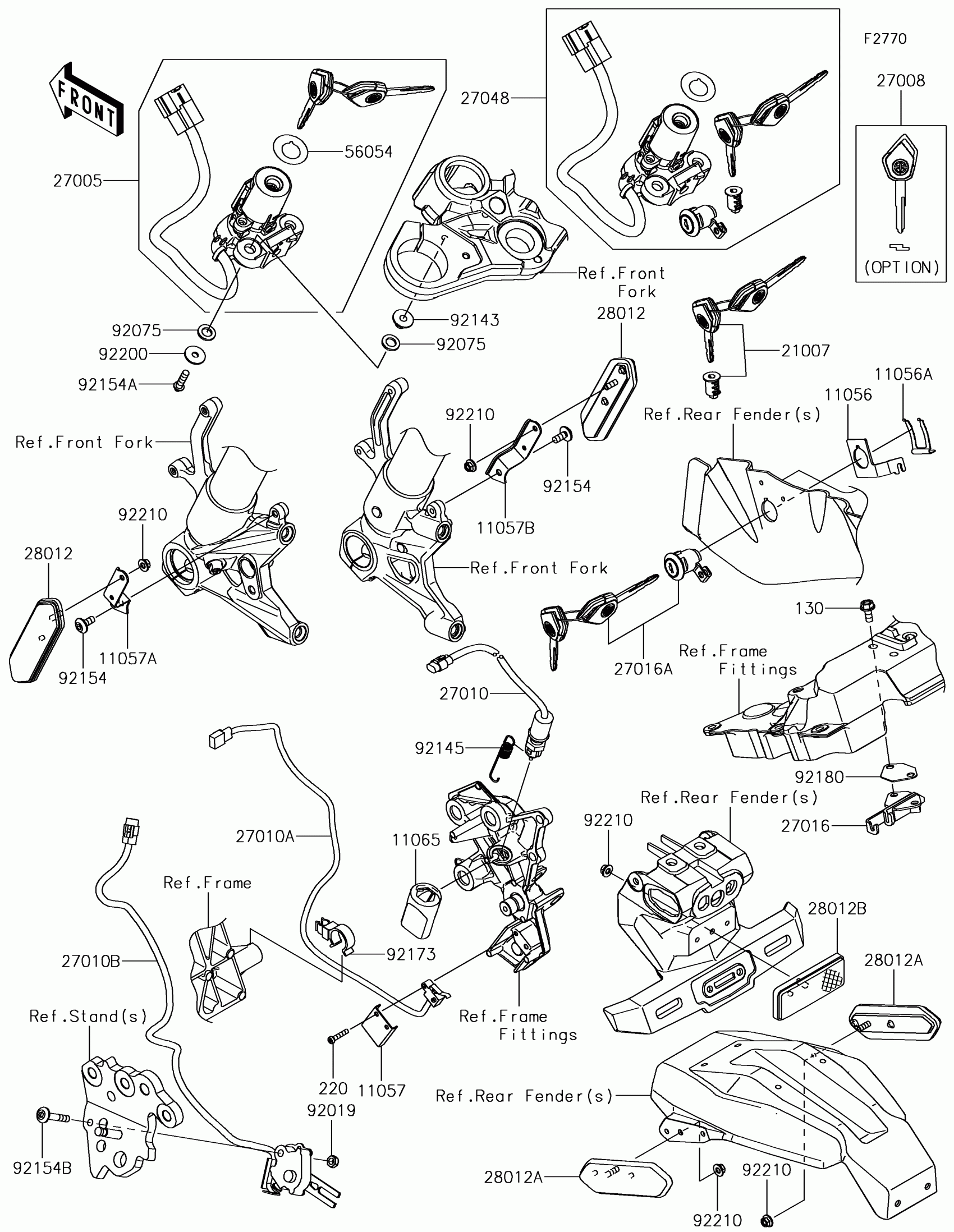

Kawasaki NINJA H2™ SX Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET

11056-0237

$4.41

11056A

BRACKET,CLASP

11056-0238

$6.00

11057

BRACKET

11057-1285

$4.76

11057A

BRACKET,REFLECTOR,LH

11057-1300

$6.38

11057B

BRACKET,REFLECTOR,RH

11057-1301

$6.38

11065

CAP,RR BRAKE SWITCH

11065-0381

$12.12

21007

ROTOR,LOCK,TANK CAP

21007-5079

$97.55

27005

SWITCH-ASSY-IGNITION

27005-0641

$437.59

27008

KEY-LOCK,BLANK

27008-0590

$81.11

27010

SWITCH,STOP

27010-0836

$35.01

27010A

SWITCH,REAR BRAKE

27010-0865

$77.10

27010B

SWITCH,SIDE STAND

27010-0872

$87.32

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5389

$96.64

27048

SWITCH-ASSY

27048-5148

$723.21

28012

REFLECTOR-REFLEX

28012-0042

$16.53

28012A

REFLECTOR-REFLEX,RED

28012-0043

$16.53

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

56054

MARK,IGNITION

56054-1596

$10.21

92019

NUT,LOCK,6MM

92019-008

$4.26

92075

DAMPER

92075-1564

$5.48

92143

COLLAR,L=9.6

92143-1016

$6.22

92145

SPRING

92145-1794

$6.33

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,TORX,6X22

92154-1858

$3.94

92154B

BOLT,SOCKET,6X34

92154-2834

$2.98

92173

CLAMP

92173-1227

$4.41

92180

SHIM

92180-1542

$4.04

92200

WASHER,6X20X1.6

92200-0212

$3.35

92210

NUT,FLANGED,5MM

92210-0007

$2.70

130

BOLT-FLANGED,6X14

130BB0614

$2.49

220

SCREW-PAN-CROS,4X20

220AA0420

$2.67
