Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1340

$1,211.03

21175A

CONTROL UNIT-ELECTRONIC

21175-1343

$1,211.03

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,KNOCK

21176-0788

$133.37

21176C

SENSOR,INTAKE TEMP&PRESSURE

21176-0791

$140.35

21176D

SENSOR,GYRO

21176-0819

$666.31

21176E

SENSOR,CAM ANGLE

21176-0866

$136.61

21176F

SENSOR,OXYGEN

21176-0868

$235.01

92015

NUT,LOCK,FLANGED,5MM

92015-1752

$4.31

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0842

$6.63

92055B

RING-O

92055-1639

$3.09

92152

COLLAR

92152-0329

$7.75

92152A

COLLAR,6.5X16X7.3

92152-2336

$12.83

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92154

BOLT,SOCKET,5X16

92154-1449

$1.19

92154A

BOLT,SOCKET,6X16

92154-1454

$1.19

92160

DAMPER

92160-1278

$4.39

92161

DAMPER

92161-1187

$2.75

92161A

DAMPER,ECU

92161-2123

$29.89

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92200

WASHER

92200-0288

$1.34

92200A

WASHER,15.5X22X0.8

92200-2214

$5.66

92200B

WASHER,6.5X16X1.0

92200-3712

$3.73

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34

120

BOLT-SOCKET,5X25

120R0525

$2.55

130

BOLT-FLANGED,6X25

130BA0625

$1.20

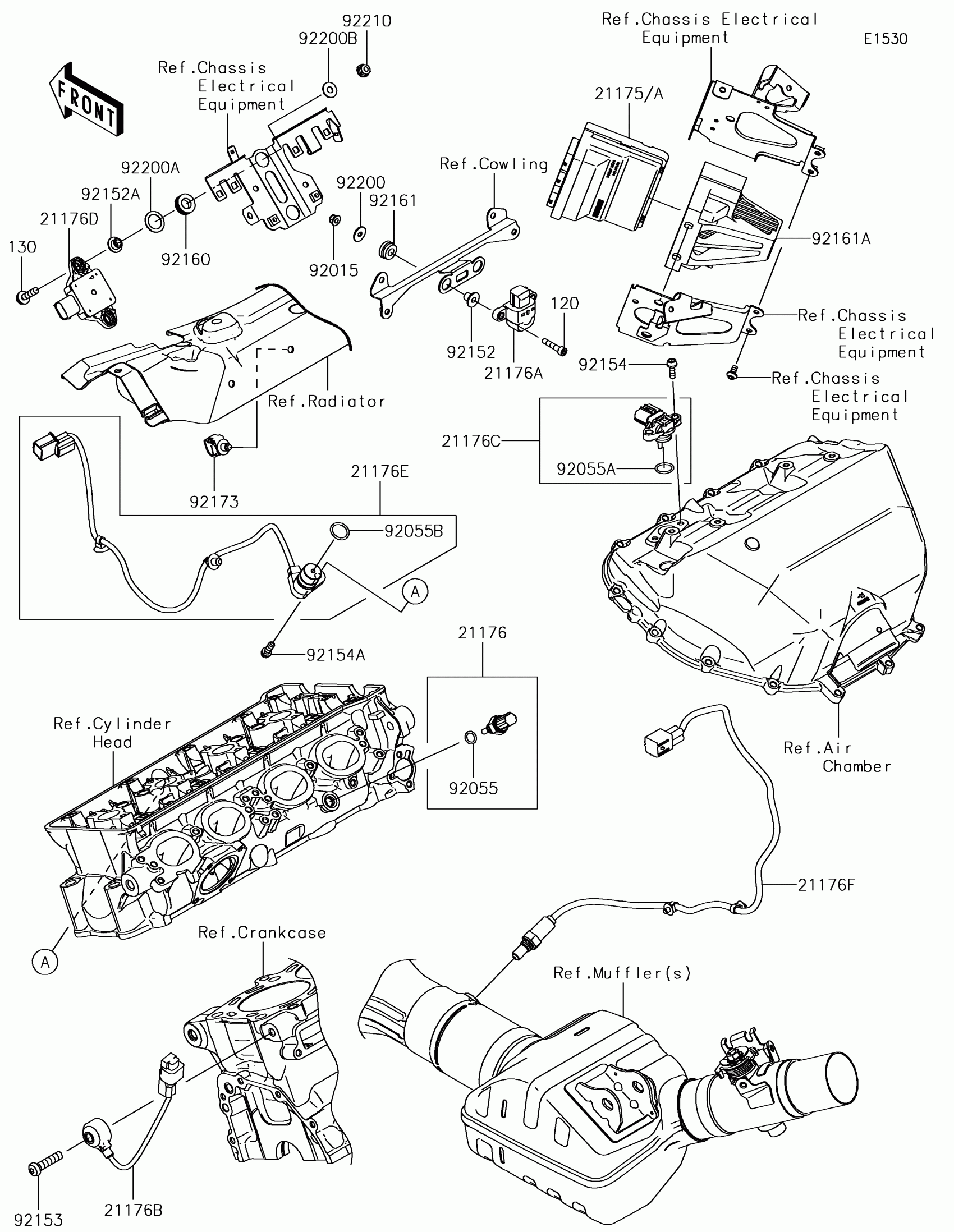

Kawasaki NINJA H2™ SX Fuel Injection Diagram

CONTROL UNIT-ELECTRONIC

CONTROL UNIT-ELECTRONIC

SENSOR,WATER TEMP

SENSOR,VEHICLE-DOWN

SENSOR,KNOCK

SENSOR,INTAKE TEMP&PRESSURE

SENSOR,GYRO

SENSOR,CAM ANGLE

SENSOR,OXYGEN

NUT,LOCK,FLANGED,5MM

RING-O,9.5X1.9

RING-O

RING-O

COLLAR

COLLAR,6.5X16X7.3

BOLT,SOCKET,8X35

BOLT,SOCKET,5X16

BOLT,SOCKET,6X16

DAMPER

DAMPER

DAMPER,ECU

CLAMP,12MM DIA.

WASHER

WASHER,15.5X22X0.8

WASHER,6.5X16X1.0

NUT,LOCK,FLANGED,6MM

BOLT-SOCKET,5X25

BOLT-FLANGED,6X25
