Description

Price

11057

BRACKET,REINFORCE

11057-1432

$19.79

32036

BRACKET-SWINGARM,M.F.S.BLACK

32036-0353-46R

$510.54

32160

FRAME-COMP,M.F.S.BLACK

32160-0931-46R

$4,664.63

32160A

FRAME-COMP,RR

32160-0960

$710.57

35034

REINFORCE

35034-0605

$67.12

39156

PAD,22X45

39156-1896

$7.32

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,8.5X20X1.6

92022-1561

$4.31

92026

SPACER,10.1X35X6

92026-0839

$24.07

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

$24.41

92154

BOLT,FLANGED,10X223

92154-1556

$31.97

92154A

BOLT,SOCKET,8X23

92154-1901

$3.63

92154B

BOLT,FLANGED,10X40

92154-2924

$6.38

92200

WASHER

92200-0036

$5.00

92200A

WASHER,28.5X40X1.6

92200-0595

$4.10

92210

NUT,35MM

92210-0095

$18.25

92210A

NUT,35MM

92210-0096

$19.83

92210B

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210C

NUT,28MM

92210-1460

$79.27

130

BOLT-FLANGED,8X12

130BB0812

$0.68

130A

BOLT-FLANGED,8X18

130CA0818

$2.55

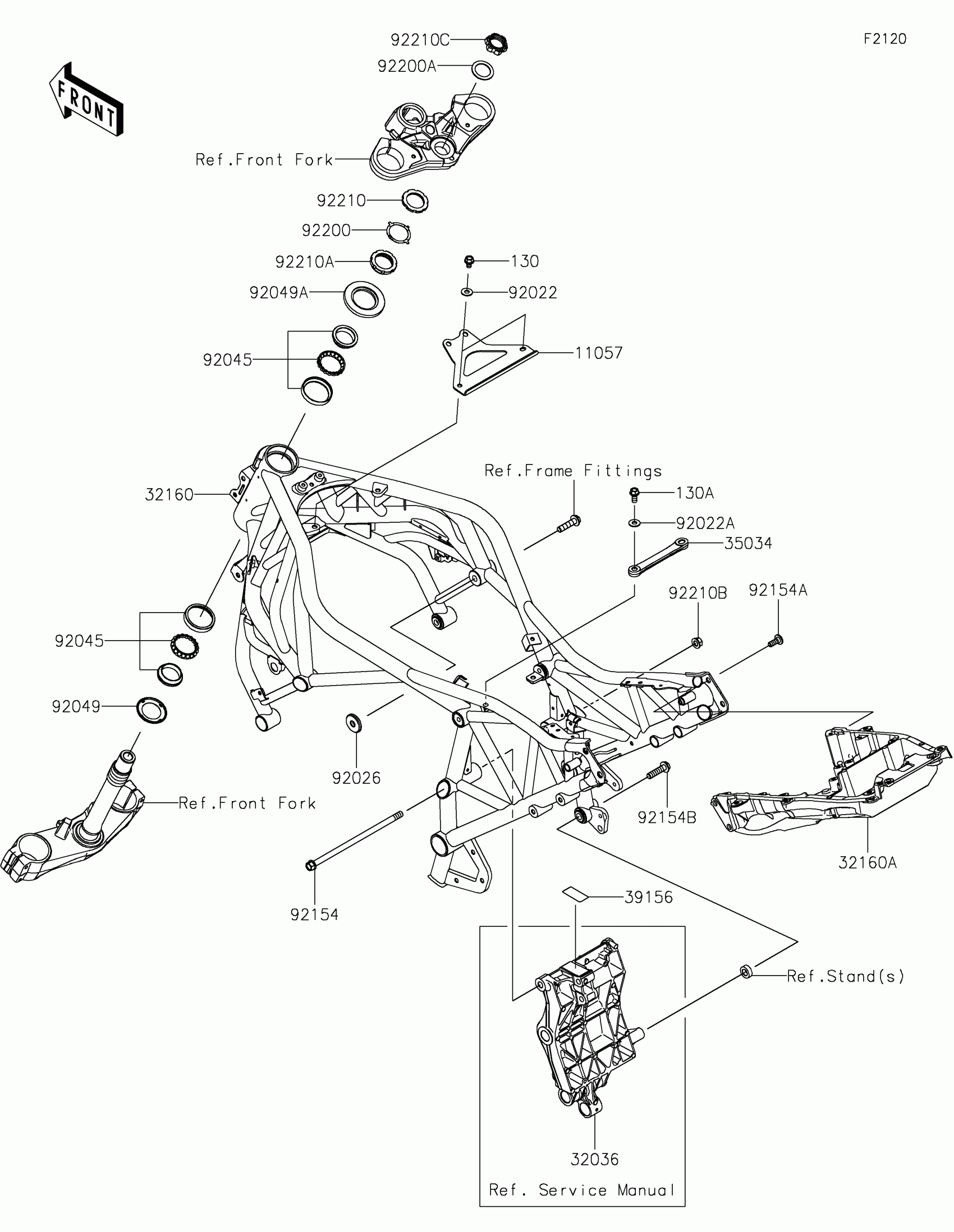

Kawasaki NINJA H2™ SX Frame Diagram

BRACKET,REINFORCE

BRACKET-SWINGARM,M.F.S.BLACK

FRAME-COMP,M.F.S.BLACK

FRAME-COMP,RR

REINFORCE

PAD,22X45

WASHER,8.5X20X1.6,BLACK

WASHER,8.5X20X1.6

SPACER,10.1X35X6

BEARING-BALL,SF07A17PX1V1

SEAL-OIL,DS35X55X4

SEAL-OIL,XMH 43 75 6.4J

BOLT,FLANGED,10X223

BOLT,SOCKET,8X23

BOLT,FLANGED,10X40

WASHER

WASHER,28.5X40X1.6

NUT,35MM

NUT,35MM

NUT,LOCK,FLANGED,10MM

NUT,28MM

BOLT-FLANGED,8X12

BOLT-FLANGED,8X18
