Description

Price

11057

BRACKET,LWR COWL.,RR

11057-1286

$7.75

11057A

BRACKET,CONNECTING,LWR

11057-1287

$31.33

11057B

BRACKET,SIDE COWL.,W/ABS PIPE

11057-1297

$14.81

14093

COVER,CL,LH,M.C.GRAY

14093-0671-51A

$82.00

14093A

COVER,CL,RH,M.C.GRAY

14093-0672-51A

$94.32

39156

PAD,DUCT

39156-2255

$15.80

39156A

PAD,ADIABATIC,92X231X0.3

39156-2334

$8.66

39156B

PAD,GENERATOR COVER

39156-2377

$46.69

39156C

PAD,30X60X30

39156-2385

$31.28

55028

COWLING,SIDE,FR,LH,M.C.GRAY

55028-0649-51A

$369.68

55028A

COWLING,SIDE,FR,RH,M.C.GRAY

55028-0650-51A

$369.68

55028B

COWLING,SIDE,RR,LH,M.M.C.GRAY

55028-0651-51B

$382.40

55028C

COWLING,SIDE,RR,RH,M.M.C.GRAY

55028-0652-51B

$405.24

92015

NUT,WELL,5MM

92015-1757

$5.58

92152

COLLAR,5.2X9.5X30

92152-2448

$16.36

92153

BOLT,SOCKET,6MM

92153-0489

$2.84

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X45

92154-2934

$5.56

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200A

WASHER,10.4X15.9X0.5

92200-0157

$1.57

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

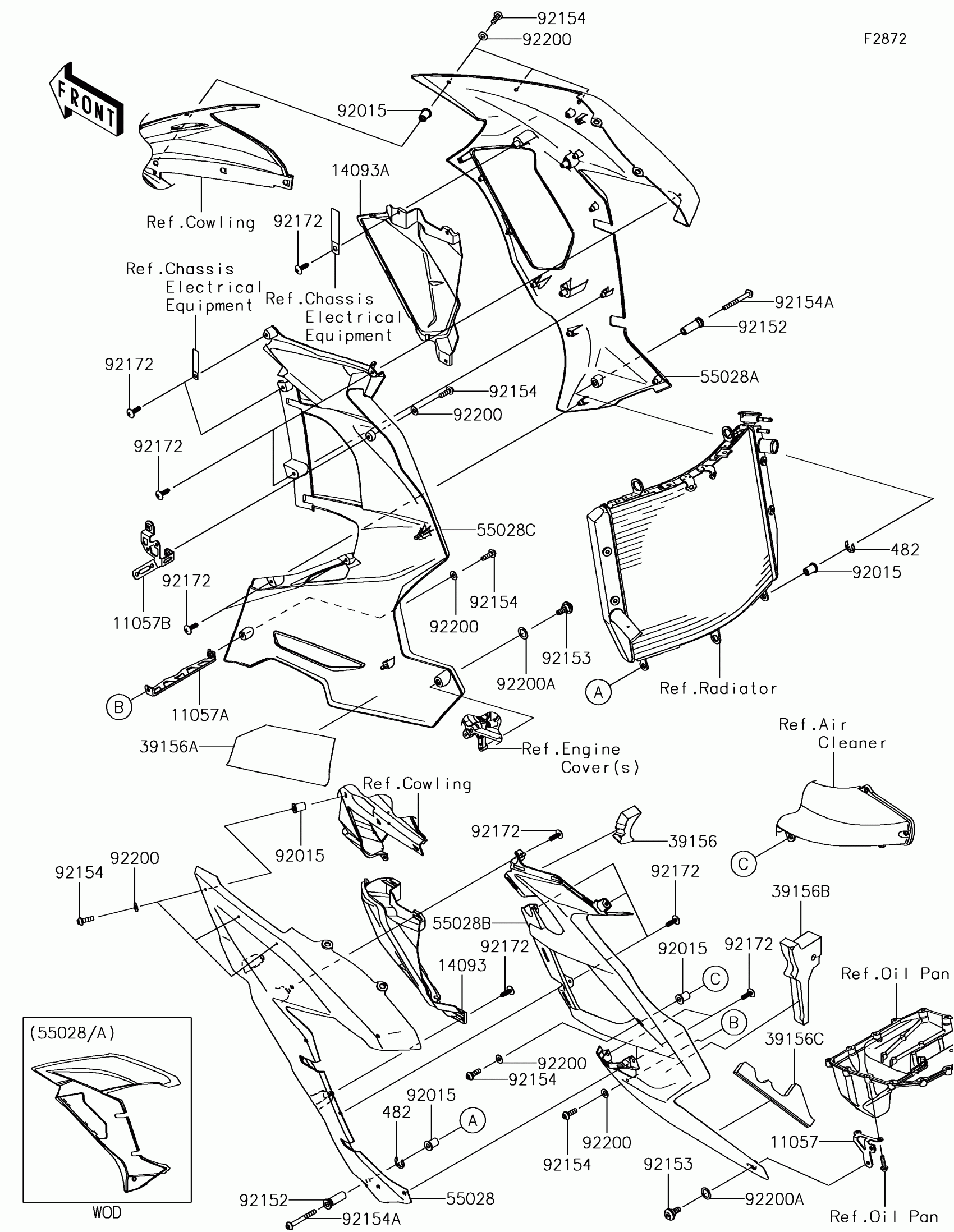

Kawasaki NINJA H2™ SX Cowling Lowers Diagram
