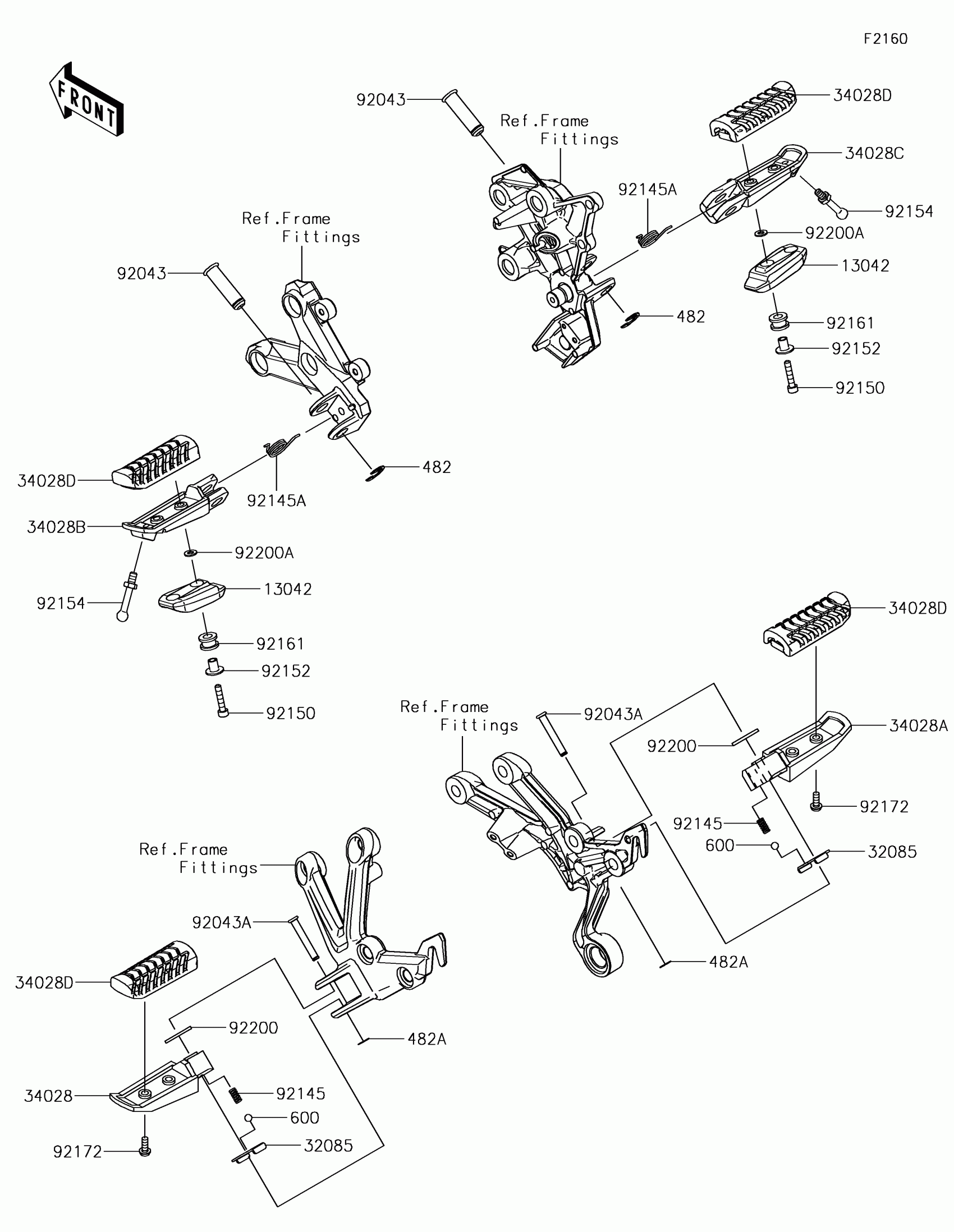

Kawasaki NINJA H2™ SX Footrests Diagram

Description

Price

13042

WEIGHT,STEP

13042-0773

$15.02

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,RR,LH

34028-0314

$40.53

34028A

STEP,RR,RH

34028-0315

$40.53

34028B

STEP,FR,LH

34028-0327

$32.69

34028C

STEP,FR,RH

34028-0328

$32.69

34028D

STEP,RUBBER

34028-0349

$18.36

92043

PIN,12X42.5

92043-1594

$5.25

92043A

PIN,6X40

92043-1595

$1.68

92145

SPRING

92145-1319

$1.33

92145A

SPRING

92145-1828

Unavailable

92150

BOLT,SOCKET,5X25

92150-1684

$2.77

92152

COLLAR

92152-1625

$7.41

92154

BOLT,BANK SENSOR,6X10,MEC

92154-3814

Unavailable

92161

DAMPER,8X16X8

92161-2082

$2.20

92172

SCREW,5X14

92172-0976

$3.01

92200

WASHER,16X26X2.3

92200-0043

$5.84

92200A

WASHER,5.3X11X1

92200-1929

$1.10

482

CIRCLIP-TYPE-E,10MM

482EA0100

$0.85

482A

CIRCLIP-TYPE-E

482EA5000

$1.04

600

BALL-STEEL,1/4

600A0800

$0.59
