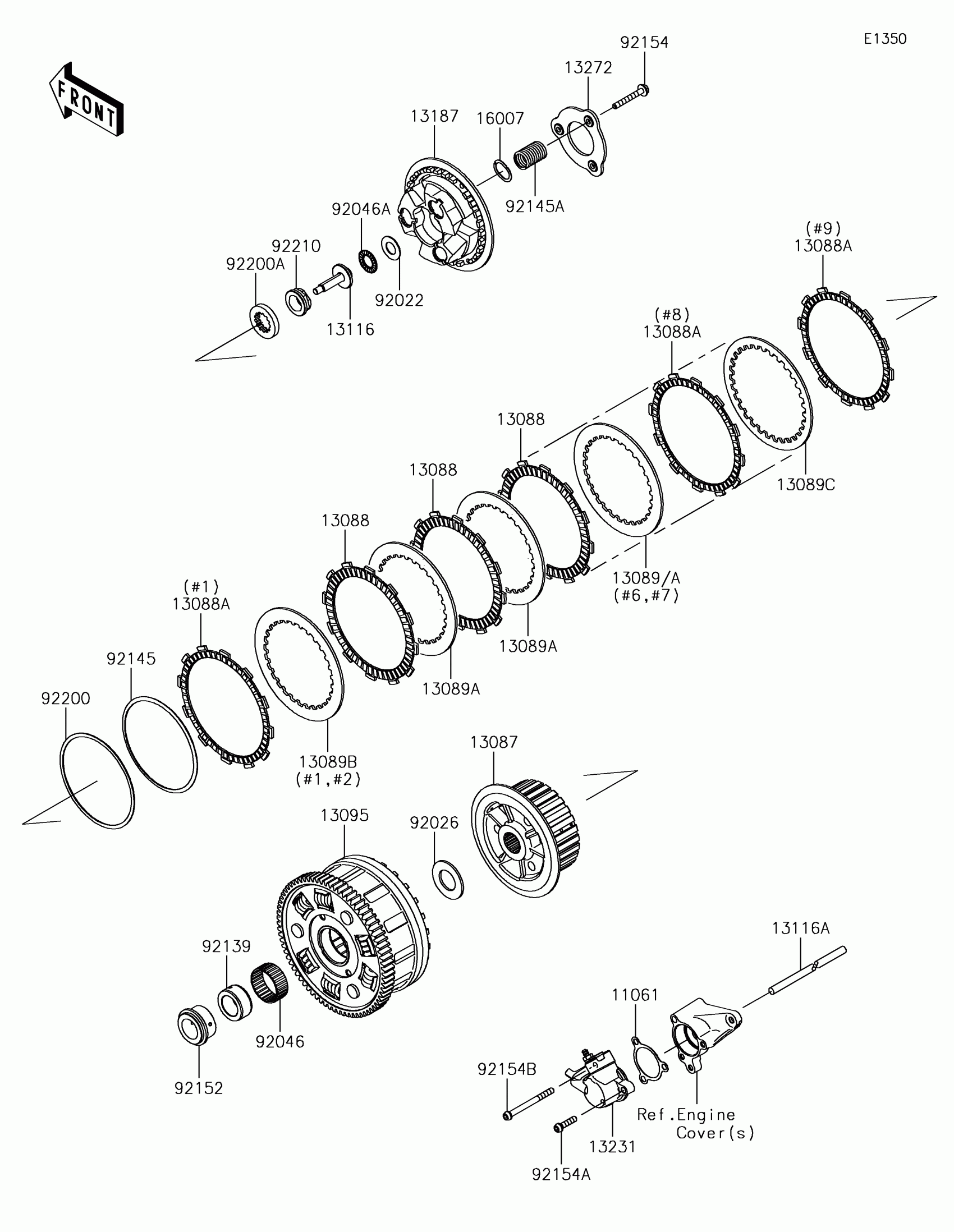

Kawasaki NINJA H2™ SX Clutch Diagram
#
Description
Price
11061
GASKET,CLUTCH RELEASE
11061-1259
$4.41
13087
HUB-CLUTCH
13087-0579
$266.92
13088
PLATE-FRICTION
13088-0575
$21.14
13088A
PLATE-FRICTION
13088-0576
$21.14
13089
PLATE-CLUTCH,T=2.3
13089-0027
Unavailable
13089A
PLATE-CLUTCH,T=2.6
13089-0028
$16.35
13089B
PLATE-CLUTCH,T=2.9
13089-0030
$16.35
13089C
PLATE-CLUTCH,T=2.6
13089-0036
$17.57
13095
HOUSING-COMP-CLUTCH
13095-0593
$765.89
13116
ROD-PUSH
13116-0732
$40.11
13116A
ROD-PUSH
13116-0739
$34.21
13187
PLATE-CLUTCH OPERATING
13187-0028
$155.63
13231
RELEASE-ASSY-CLUTCH
13231-0009
$121.52
13272
PLATE
13272-1303
$19.32
16007
SEAT-SPRING
16007-0736
$10.90
92022
WASHER,15.1X29X1.0
92022-1463
$5.00
92026
SPACER,25.5X47X2.5
92026-022
$9.91
92046
BEARING-NEEDLE
92046-0041
$22.40
92046A
BEARING-NEEDLE,AXK1102
92046-1052
$14.47
92139
BUSHING,25X38X17.3
92139-0304
$37.67
92145
SPRING
92145-1250
$19.32
92145A
SPRING
92145-1700
$16.60
92152
COLLAR
92152-0866
$41.41
92154
BOLT,FLANGED,6X45
92154-1909
$1.48
92154A
BOLT,SOCKET,6X25
92154-2793
$1.69
92154B
BOLT,SOCKET,6X70
92154-2794
$10.72
92200
WASHER,T=1.2
92200-1580
$10.49
92200A
WASHER,TOOTHED,38.5X25X6.3
92200-1833
$9.17
92210
NUT
92210-0397
$51.69
