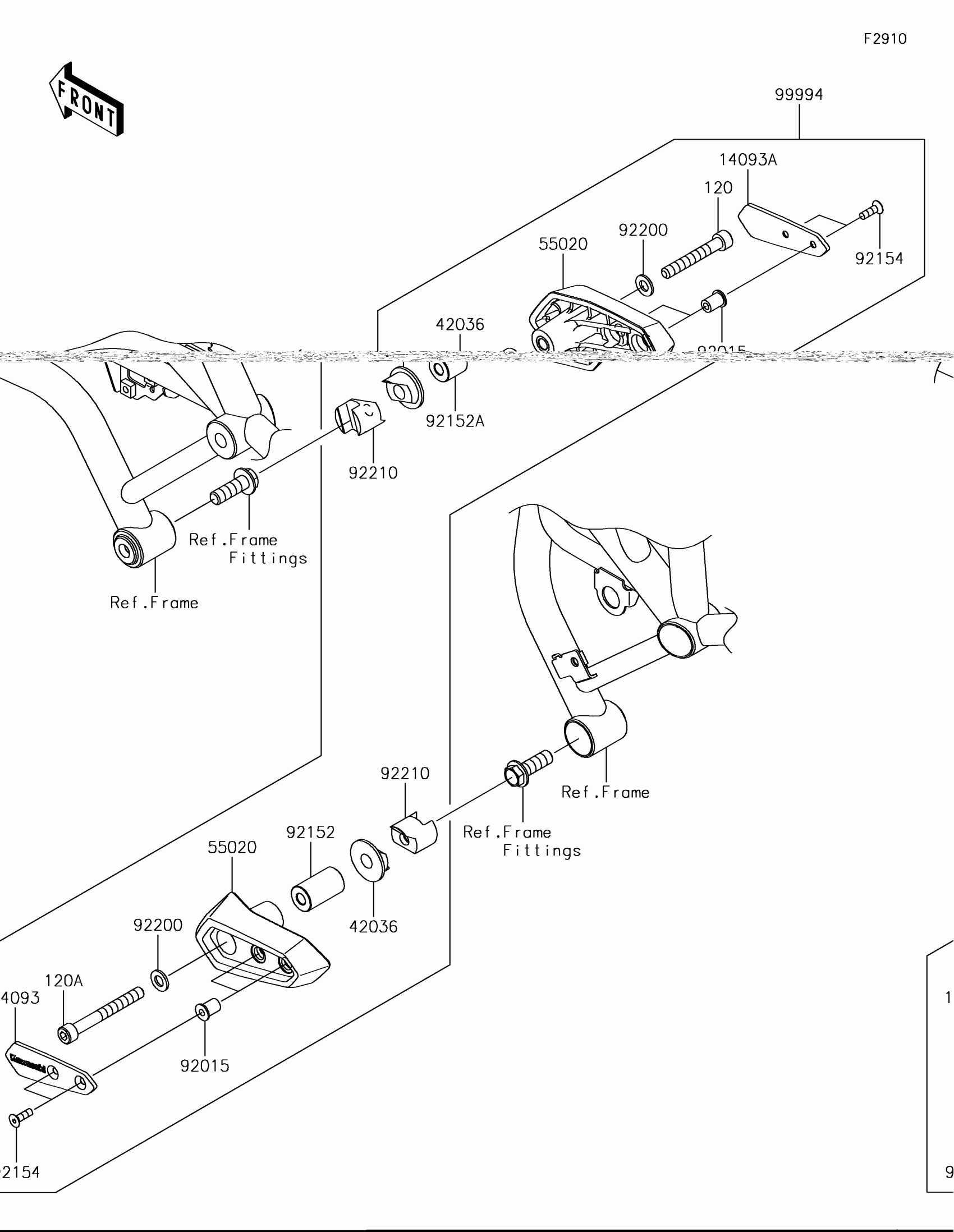

Kawasaki NINJA H2™ SX Accessory(Frame Slider) Diagram

Description

Price

14093

COVER,SLIDER,LH

14093-0350

$89.41

14093A

COVER,SLIDER,RH

14093-0351

$89.41

42036

SLEEVE,11X32X17.5

42036-0765

$111.21

55020

GUARD

55020-1997

$142.02

92015

NUT,WELL,5MM

92015-1757

$7.29

92152

COLLAR,8.3X20X34.2

92152-2451

$25.61

92152A

COLLAR

92152-2452

$22.85

92154

BOLT,SOCKET,5X16

92154-1014

$0.85

92200

WASHER,8.4X16X1.6

92200-0807

$4.41

92210

NUT,8MM

92210-1421

$109.27

99994

KIT-ACCESSORY,SLIDER

99994-1095

$351.73

120

BOLT-SOCKET

120CA0855

$2.44

120A

BOLT-SOCKET,8X70

120CA0870

$2.44
