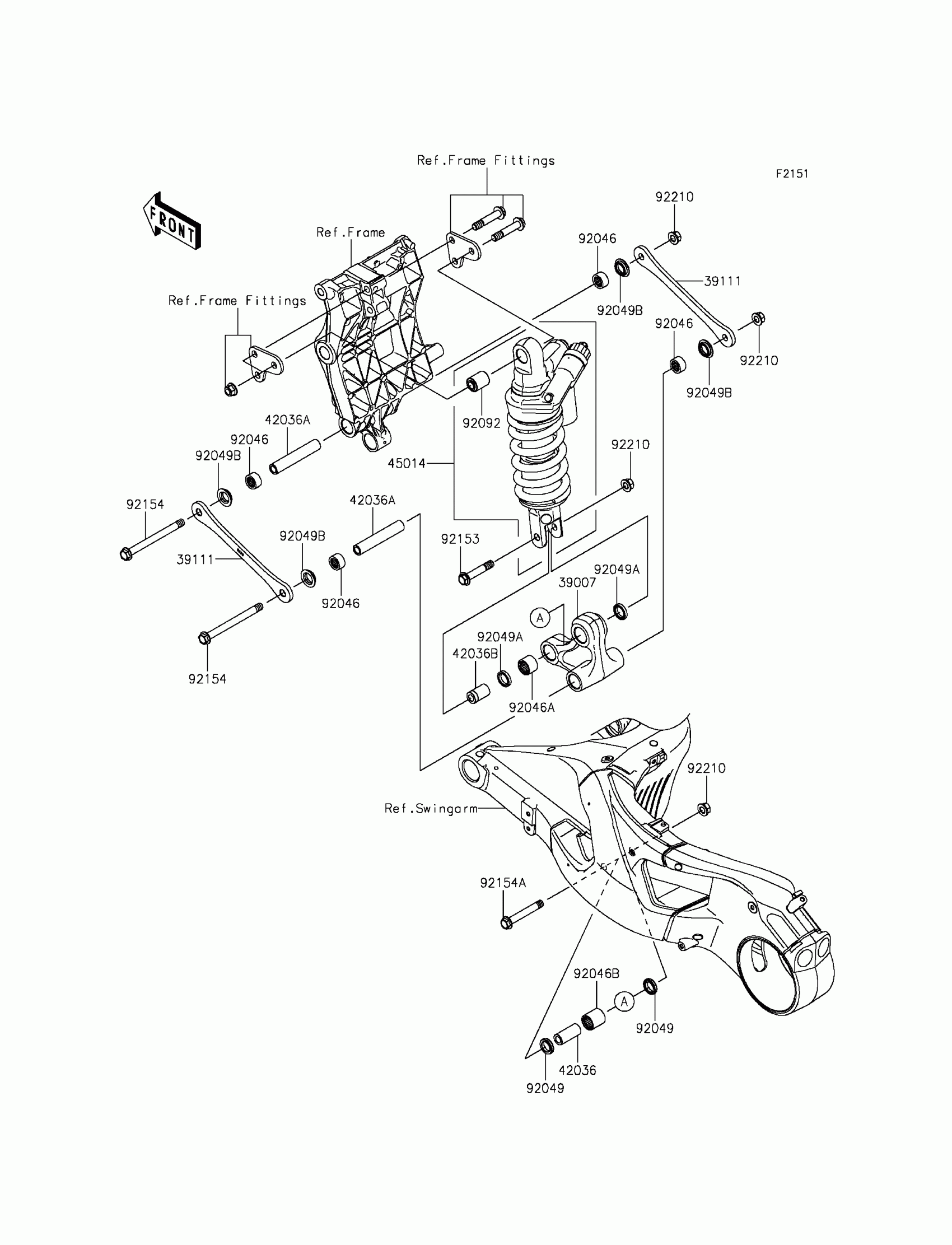

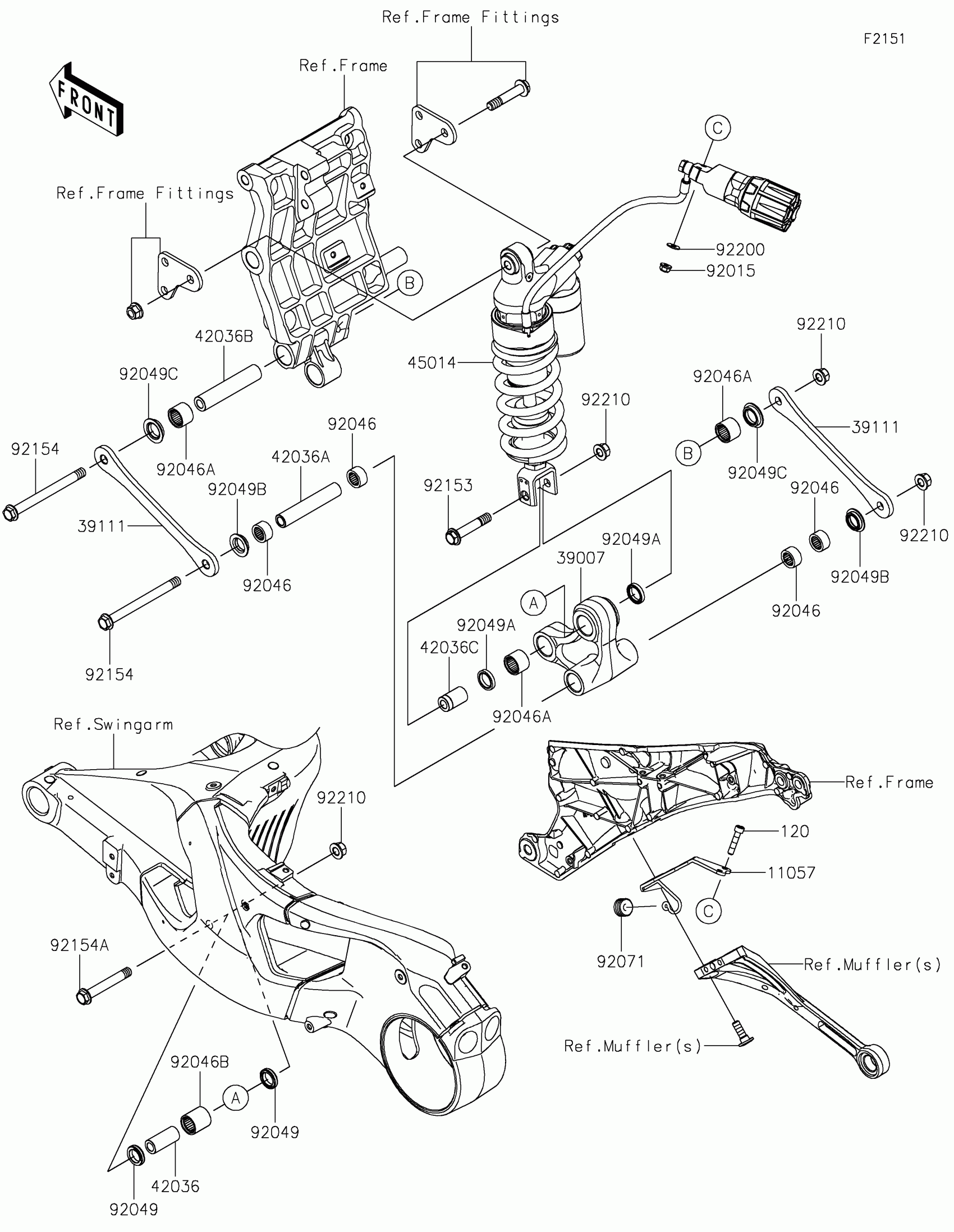

Kawasaki Ninja H2® Suspension/Shock Absorber Diagram
#
Description
Price
11057
BRACKET
11057-0669
$26.40
39007
ARM-SUSP
39007-0406
$246.27
39111
ROD-TIE,SUSPENSION
39111-0348
$66.47
42036
SLEEVE,10.1X17X39
42036-0075
$14.32
42036A
SLEEVE,10.1X16X90.5
42036-0763
$43.06
42036B
SLEEVE,10.1X18X90.5
42036-0828
$28.78
42036C
SLEEVE,10.1X18X30
42036-1258
$12.35
45014
SHOCKABSORBER,OHLINS
45014-0657
$2,591.84
92015
NUT,LOCK,FLANGED,6MM
92015-1603
$4.69
92046
BEARING-NEEDLE,16BM2212
92046-1192
$18.21
92046A
BEARING-NEEDLE,SFYZM182417
92046-1272
$16.42
92046B
BEARING-NEEDLE,SFYZM172425
92046-1273
$17.69
92049
SEAL-OIL,SD0 17 24 5 NS
92049-0158
$7.58
92049A
SEAL-OIL,MHA18244
92049-1225
$9.28
92049B
SEAL-OIL,SD03 16 22 5.7
92049-1466
$12.32
92049C
SEAL-OIL,KCR MF018N1
92049-1493
$9.19
92071
GROMMET
92071-0012
$4.55
92153
BOLT,FLANGED,10X55
92153-1546
$7.75
92154
BOLT,FLANGED,10X114
92154-1553
$15.16
92154A
BOLT,FLANGED,10X70
92154-1695
$11.77
92200
WASHER,6.2X15X1.2
92200-1762
$1.19
92210
NUT,LOCK,FLANGED,10MM
92210-1139
$4.18
120
BOLT-SOCKET,6X28
120CB0628
$2.17
