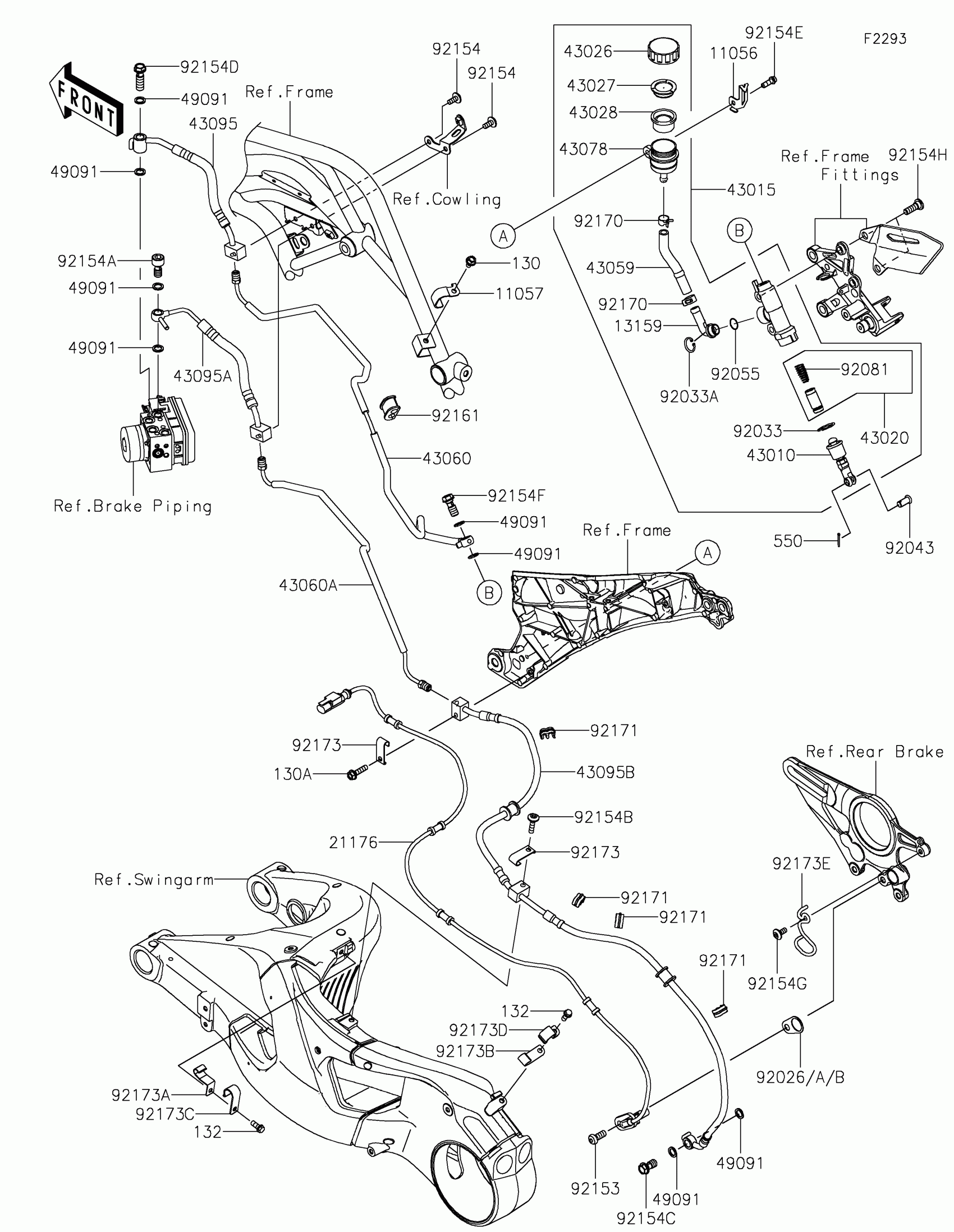

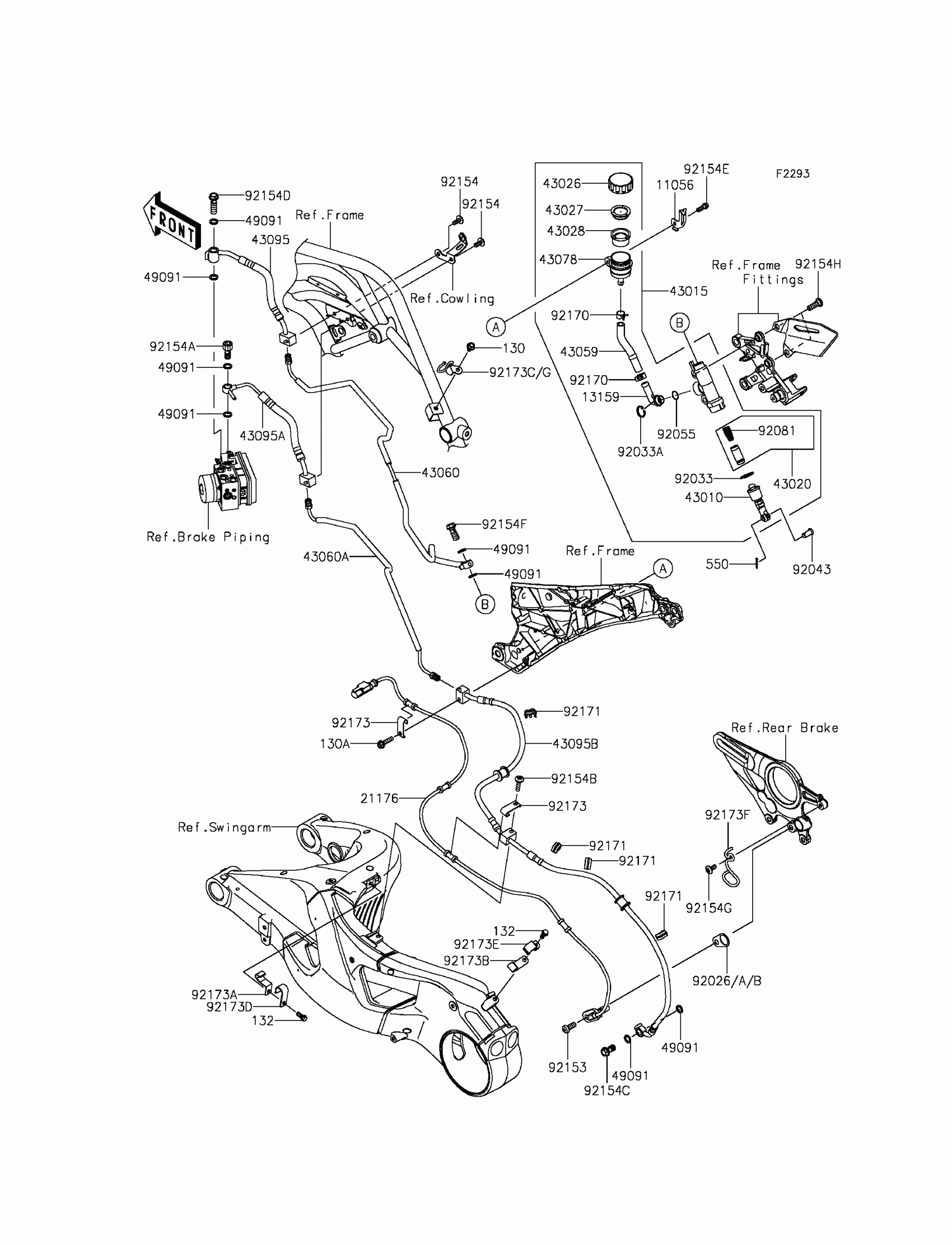

Kawasaki NINJA H2™ Rear Master Cylinder Diagram

#

Description
Price

11056

BRACKET,RESERVOIR TANK CAP

11056-7024

$5.98

13159

CONNECTOR

13159-1056

$14.10

21176

SENSOR,WHEEL SPEED,RR

21176-0793

$108.38

43010

ROD-ASSY-BRAKE

43010-0016

$29.34

43015

CYLINDER-ASSY-MASTER,RR

43015-0618

$232.77

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43059

HOSE-BRAKE,M/CYLINDER

43059-1548

$19.09

43060

PIPE-BRAKE,RR M/C

43060-0321

$152.82

43060A

PIPE-BRAKE,RR CALIPER

43060-0322

$71.10

43078

RESERVOIR

43078-0575

$91.81

43095

HOSE-BRAKE,HU-RR M/C PIPE

43095-0856

$111.63

43095A

HOSE-BRAKE,HU-RR CALIPER PIPE

43095-0857

$115.74

43095B

HOSE-BRAKE,RR CALIPER

43095-0858

$388.83

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92026

SPACER,RR SENSOR,T0.5

92026-0789

Unavailable

92026A

SPACER,RR SENSOR,T1.0

92026-0790

$17.37

92026B

SPACER,RR SENSOR,T1.5

92026-0791

Unavailable

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92153

BOLT,SOCKET,8X20

92153-0912

$2.61

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,BANJO,10X20.8

92154-1121

$26.28

92154B

BOLT,SOCKET,6X25

92154-1532

$2.34

92154C

BOLT,BANJO,10X19

92154-1554

$23.53

92154D

BOLT,BANJO,10X32.3

92154-1555

$30.66

92154E

BOLT,SOCKET,6X18

92154-1564

$1.48

92154F

BOLT,BANJO,10X23

92154-1712

$3.94

92154G

BOLT,SOCKET,6X14

92154-1735

$2.26

92154H

BOLT,SOCKET,8X25

92154-1806

$4.96

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0921

$4.65

92173

CLAMP,SWING ARM,MID

92173-1378

$5.44

92173A

CLAMP,SWING ARM,FR,LWR

92173-1379

$5.98

92173B

CLAMP,SWING ARM,RR,LWR

92173-1380

$5.44

130

BOLT-FLANGED,6X10

130BB0610

$2.49

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$2.49

550

PIN-COTTER,2.0X15

550AA2015

$1.12

92173D

CLAMP,SWING ARM,FR,UPP

92173-1382

$4.96

92173E

CLAMP,SWING ARM,RR,UPP

92173-1383

$6.77

92173F

CLAMP,RR BRAKE HOLDER

92173-1384

$20.67

92173G

CLAMP,BRAKE PIPE

92173-1571

$13.21
