Rear Master Cylinder

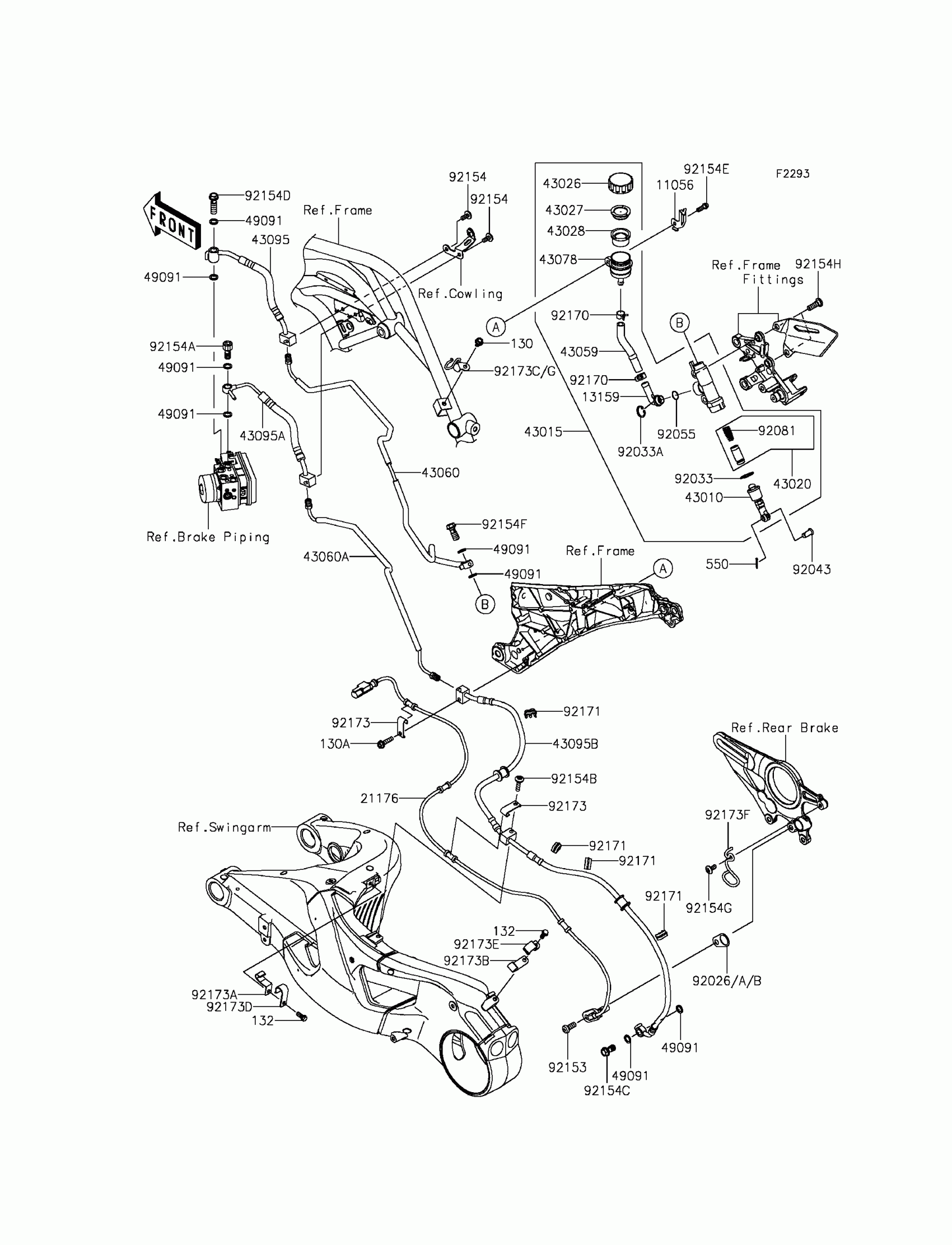

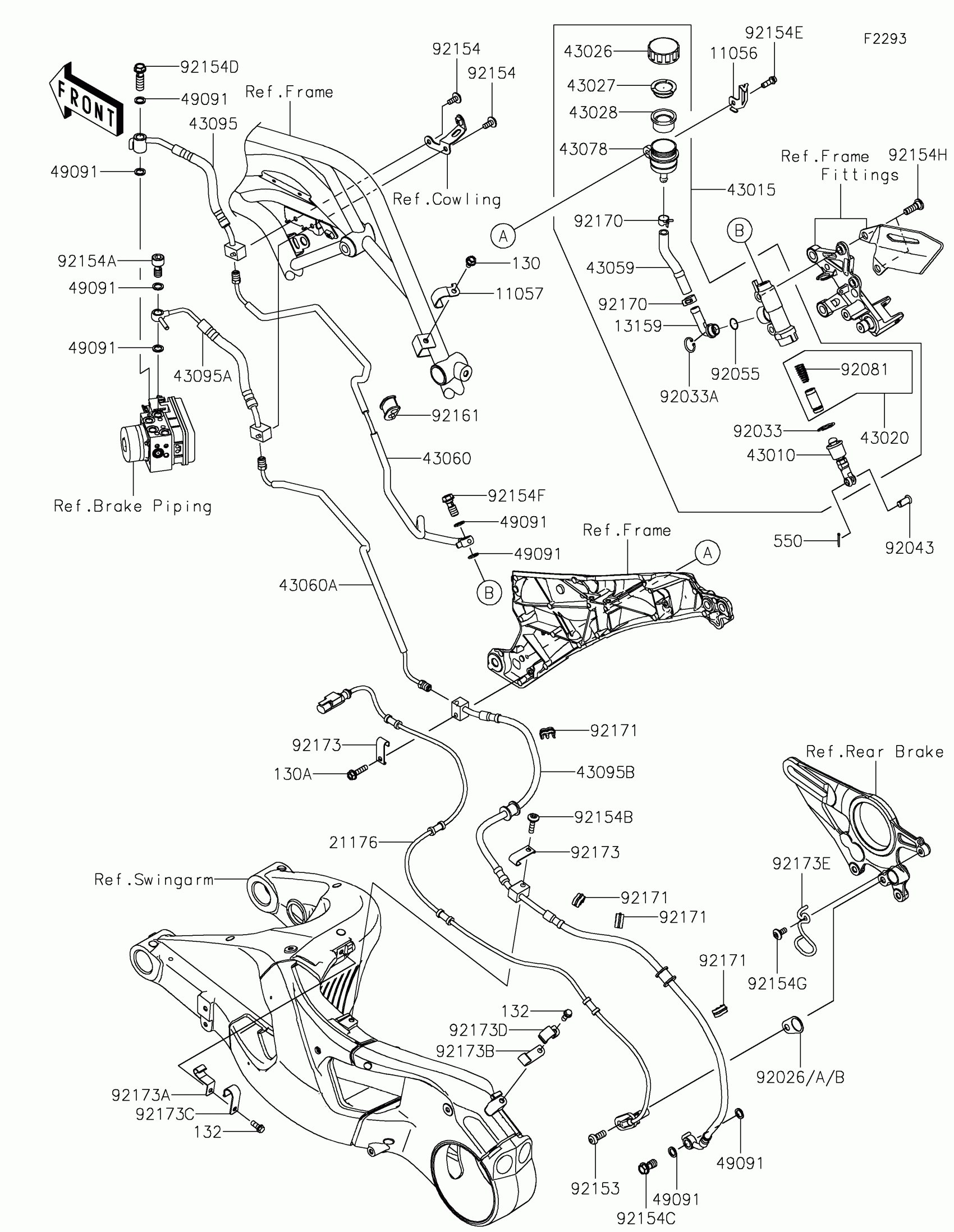

Kawasaki NINJA H2™R Rear Master Cylinder Diagram
#
11056
BRACKET,RESERVOIR TANK CAP
11056-7024
$5.98
11057
BRACKET,BRAKE PIPE
11057-0419
$7.65
13159
CONNECTOR
13159-1056
$14.10
21176
SENSOR,WHEEL SPEED,RR
21176-0793
$108.38
43010
ROD-ASSY-BRAKE
43010-0016
$29.34
43015
CYLINDER-ASSY-MASTER,RR
43015-0618
$232.77
43020
PISTON-COMP-BRAKE
43020-1057
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43059
HOSE-BRAKE,M/CYLINDER
43059-1548
$19.09
43060
PIPE-BRAKE,RR M/C
43060-0321
$152.82
43060A
PIPE-BRAKE,RR CALIPER
43060-0322
$71.10
43078
RESERVOIR
43078-0575
$91.81
43095
HOSE-BRAKE,HU-RR M/C PIPE
43095-0856
$111.63
43095A
HOSE-BRAKE,HU-RR CALIPER PIPE
43095-0857
$115.74
43095B
HOSE-BRAKE,RR CALIPER
43095-1447
$388.83
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92026
SPACER,RR SENSOR,T0.5
92026-0789
Unavailable
92026A
SPACER,RR SENSOR,T1.0
92026-0790
$17.37
92026B
SPACER,RR SENSOR,T1.5
92026-0791
Unavailable
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN,8X17
92043-0104
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92153
BOLT,SOCKET,8X20
92153-0912
$2.61
92154
BOLT,SOCKET,6X14
92154-0745
$2.32
92154A
BOLT,BANJO,10X20.8
92154-1121
$26.28
92154B
BOLT,SOCKET,6X25
92154-1532
$2.34
92154C
BOLT,BANJO,10X19
92154-1554
$23.53
92154D
BOLT,BANJO,10X32.3
92154-1555
$30.66
92154E
BOLT,SOCKET,6X18
92154-1564
$1.48
92154F
BOLT,BANJO,10X23
92154-1712
$3.94
92154G
BOLT,SOCKET,6X14
92154-1735
$2.26
92154H
BOLT,SOCKET,8X25
92154-1806
$4.96
92161
DAMPER,BRAKE PIPE
92161-1894
$15.89
92170
CLAMP,HOSE
92170-1091
$5.00
92171
CLAMP
92171-0921
$4.65
92173
CLAMP,SWING ARM,MID
92173-1378
$5.44
92173A
CLAMP,SWING ARM,FR,LWR
92173-1379
$5.98
92173B
CLAMP,SWING ARM,RR,LWR
92173-1380
$5.44
92173C
CLAMP,SWING ARM,FR,UPP
92173-1382
$4.96
92173D
CLAMP,SWING ARM,RR,UPP
92173-1383
$6.77
92173E
CLAMP,RR BRAKE HOLDER
92173-1384
$20.67
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X25
130BB0625
$2.80
132
BOLT-FLANGED-SMALL,6X14
132BB0614
$2.49
550
PIN-COTTER,2.0X15
550AA2015
$1.12
