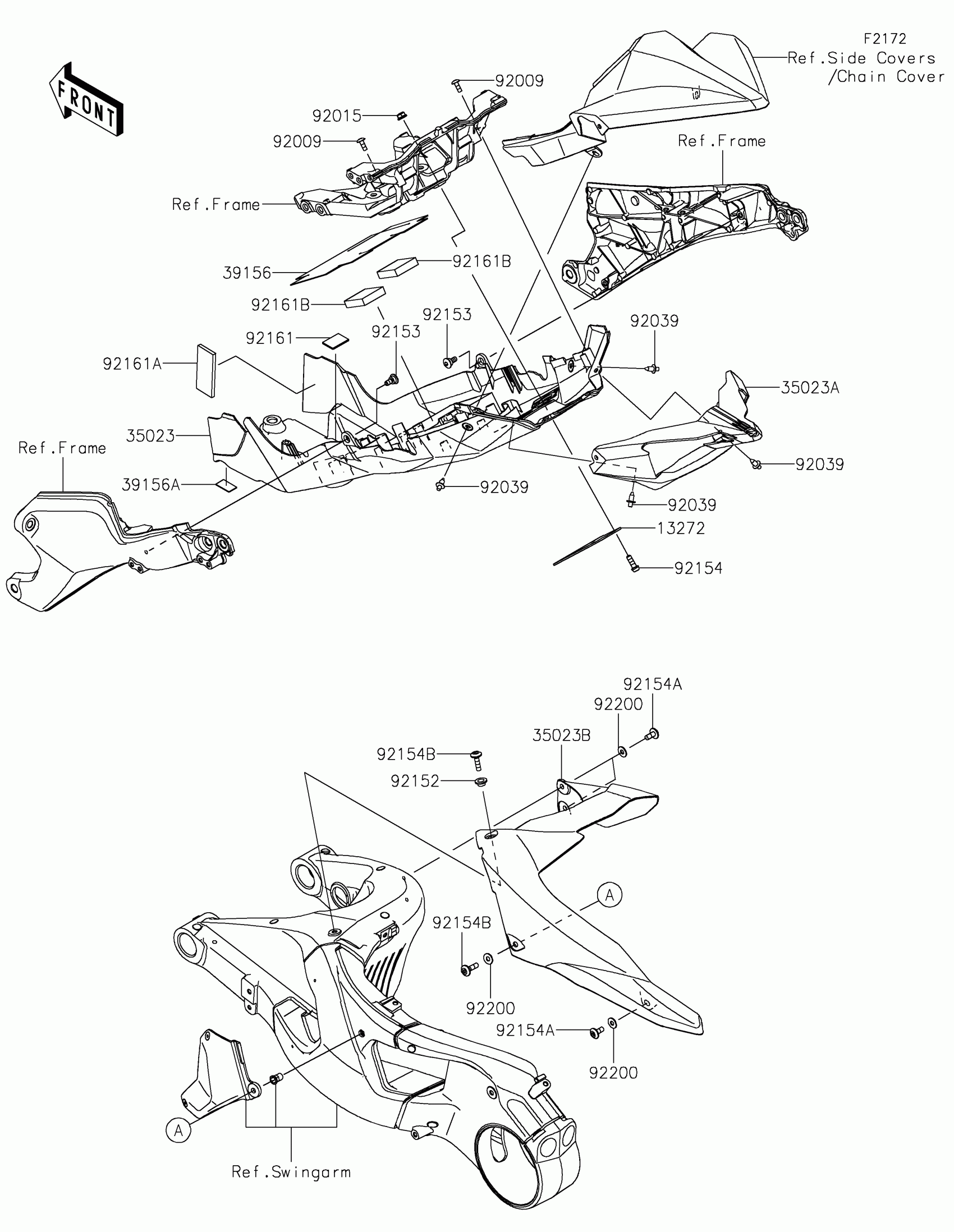

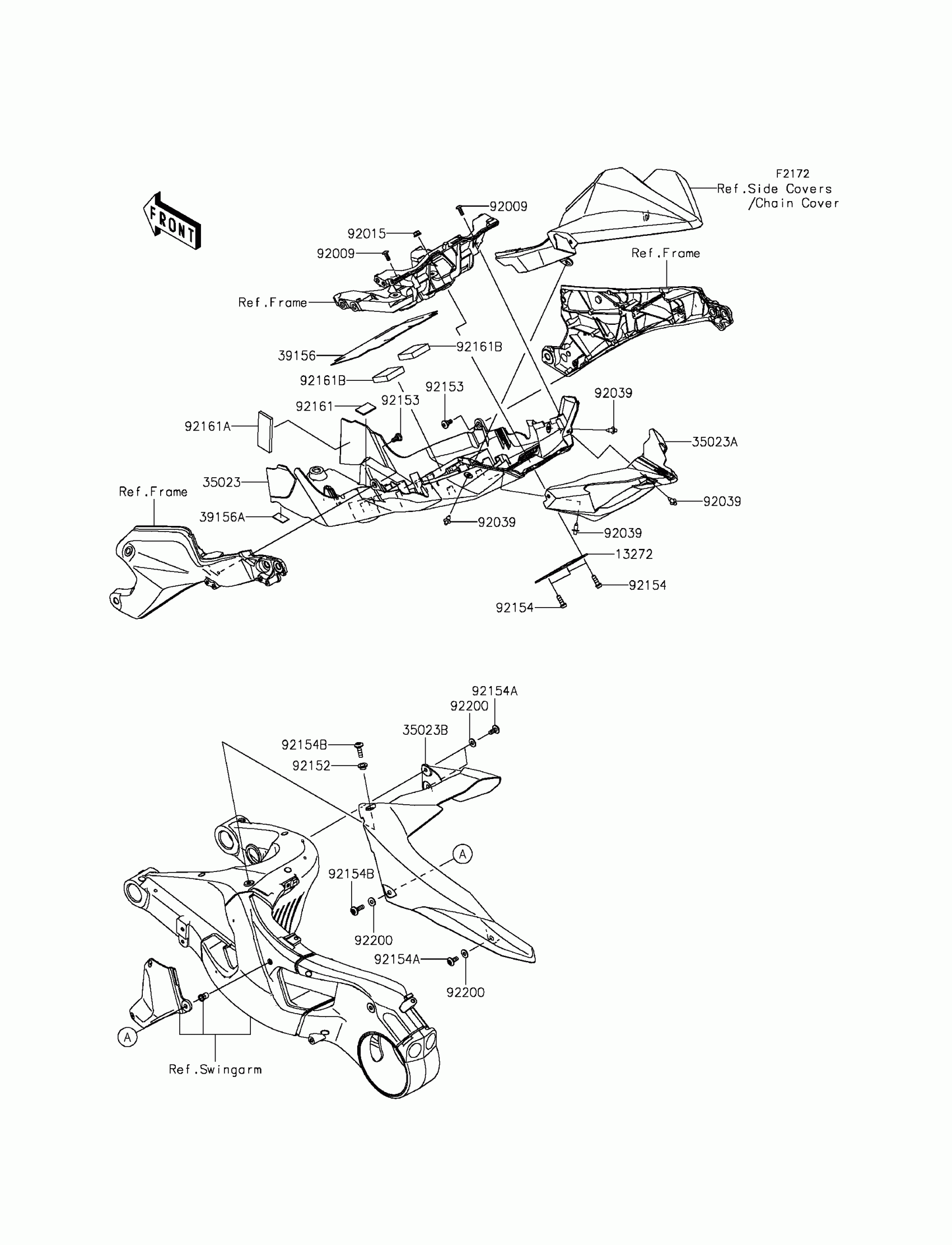

Kawasaki NINJA H2™R Rear Fender(s) Diagram

Description

Price

13272

PLATE,RR FENDER COVER

13272-1935

$454.63

35023

FENDER-REAR,FR

35023-0397

$168.76

35023A

FENDER-REAR,RR

35023-0398

$39.18

35023B

FENDER-REAR

35023-0399

$48.75

39156

PAD,195X115X1

39156-1884

$25.79

39156A

PAD,15X25X1

39156-2119

$1.84

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92039

RIVET

92039-0068

$2.97

92152

COLLAR,6.5X10X6.2

92152-2152

$3.29

92153

BOLT,SOCKET,6MM

92153-1956

$3.90

92154

BOLT,SOCKET,6X18

92154-1455

$1.48

92154A

BOLT,SOCKET,6X14

92154-1807

$3.29

92154B

BOLT,SOCKET,6X22

92154-1810

$3.86

92161

DAMPER,30X20X2

92161-0833

$1.63

92161A

DAMPER,30X70X5

92161-1127

$7.65

92161B

DAMPER,40X40X10

92161-1603

$2.00

92200

WASHER,6.2X15X1.2

92200-1762

$1.19
