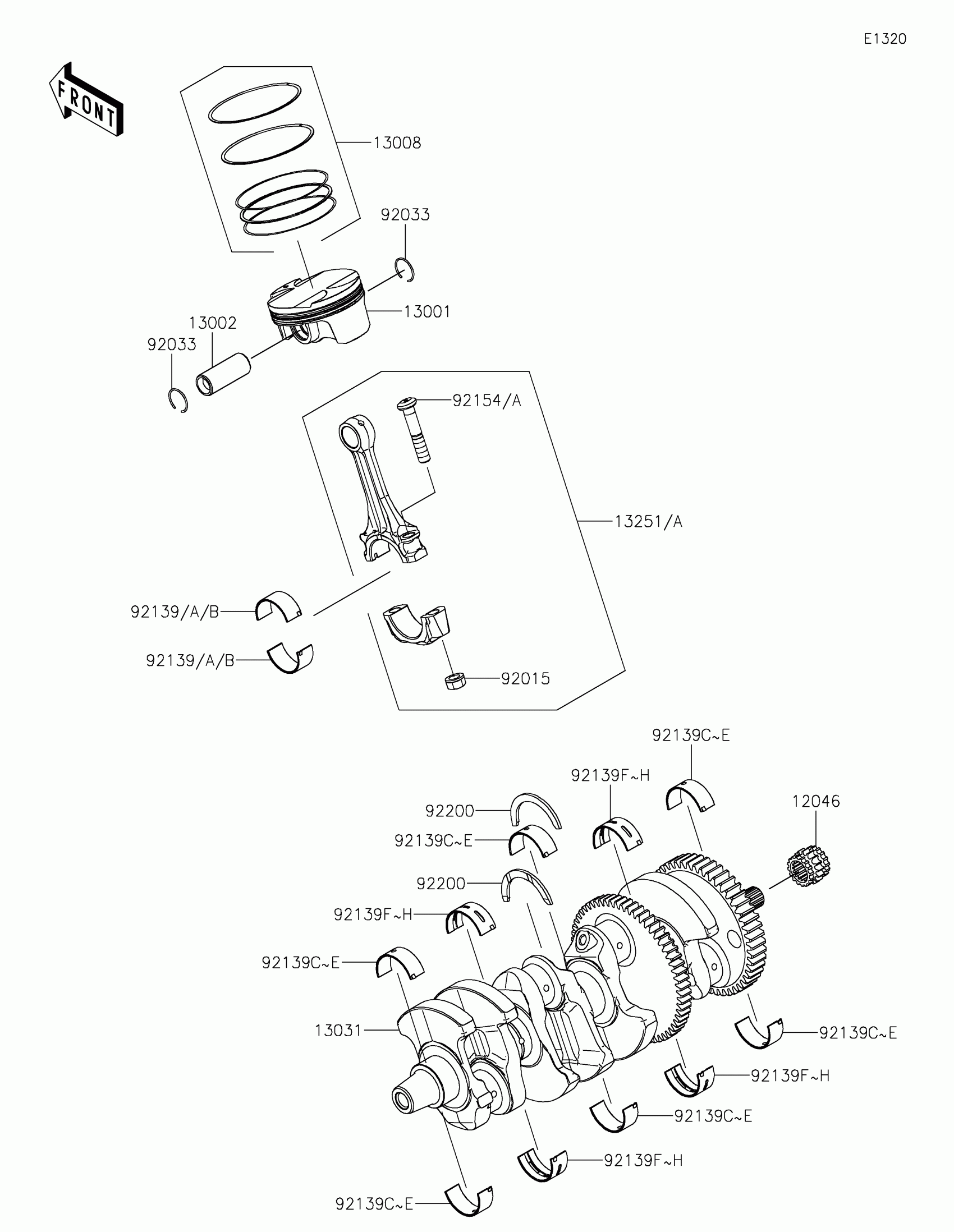

Kawasaki NINJA H2™R Crankshaft/Piston(s) Diagram

Description

Price

12046

SPROCKET,16T

12046-0033

$38.27

13001

PISTON-ENGINE

13001-0764

$130.53

13002

PIN-PISTON

13002-0043

$43.06

13008

RING-SET-PISTON

13008-0560

$65.89

13031

CRANKSHAFT-COMP

13031-0802

$1,354.08

13251A

ROD-ASSY-CONNECTING,J

13251-0734-JJ

$213.19

92015

NUT,CONNECTING ROD

92015-1559

$6.22

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92139

BUSHING,CON-ROD,BLUE

92139-0818

$26.89

92139A

BUSHING,CON-ROD,BLACK

92139-0819

Unavailable

92139B

BUSHING,CON-ROD,BROWN

92139-0820

Unavailable

92139C

BUSHING,#1,BLUE

92139-0821

$26.89

92139D

BUSHING,#1,BLACK

92139-0822

Unavailable

92139E

BUSHING,#1,BROWN

92139-0823

Unavailable

92139F

BUSHING,#2,BLUE

92139-0824

$26.89

92139G

BUSHING,#2,BLACK

92139-0825

Unavailable

92139H

BUSHING,#2,BROWN

92139-0826

Unavailable

92154A

BOLT,CON-ROD,9X47.5

92154-3883

$16.25

92200

WASHER,T=2.5

92200-0744

$11.16

Kawasaki NINJA H2™R Crankshaft/Piston(s) Diagram

SPROCKET,16T

PISTON-ENGINE

PIN-PISTON

RING-SET-PISTON

CRANKSHAFT-COMP

ROD-ASSY-CONNECTING,J

NUT,CONNECTING ROD

RING-SNAP,20.5X1.2

BUSHING,CON-ROD,BLUE

BUSHING,CON-ROD,BLACK

BUSHING,CON-ROD,BROWN

BUSHING,#1,BLUE

BUSHING,#1,BLACK

BUSHING,#1,BROWN

BUSHING,#2,BLUE

BUSHING,#2,BLACK

BUSHING,#2,BROWN

BOLT,CON-ROD,9X47.5

WASHER,T=2.5

BUSHING,#1,BLUE

BUSHING,#1,BLACK

BUSHING,#1,BROWN
