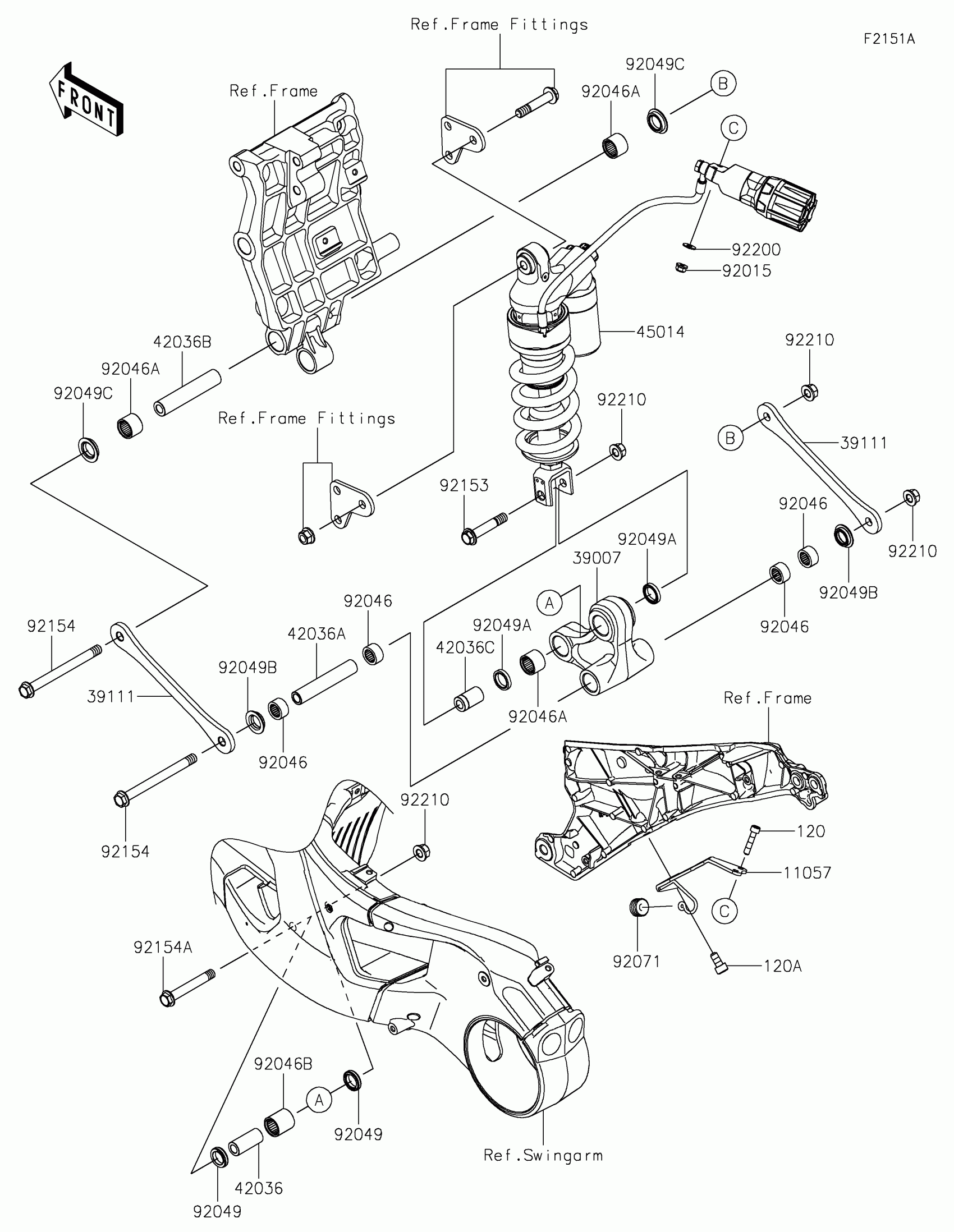

Kawasaki NINJA H2®R ABS Suspension/Shock Absorber(YNFNN-YSFNN) Diagram

Description

Price

11057

BRACKET

11057-0669

$26.40

39007

ARM-SUSP

39007-0406

$246.27

39111

ROD-TIE,SUSPENSION

39111-0348

$66.47

42036

SLEEVE,10.1X17X39

42036-0075

$14.32

42036A

SLEEVE,10.1X16X90.5

42036-0763

$43.06

42036B

SLEEVE,10.1X18X90.5

42036-0828

$28.78

42036C

SLEEVE,10.1X18X30

42036-1258

$12.35

45014

SHOCKABSORBER,OHLINS,TTX36

45014-0586

$2,666.60

92015

NUT,LOCK,FLANGED,6MM

92015-1603

$4.69

92046

BEARING-NEEDLE,16BM2212

92046-1192

$18.21

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,SD0 17 24 5 NS

92049-0158

$7.58

92049A

SEAL-OIL,MHA18244

92049-1225

$9.28

92049B

SEAL-OIL,SD03 16 22 5.7

92049-1466

$12.32

92049C

SEAL-OIL,KCR MF018N1

92049-1493

$9.19

92071

GROMMET

92071-0012

$4.55

92153

BOLT,FLANGED,10X55

92153-1546

$7.75

92154

BOLT,FLANGED,10X114

92154-1553

$15.16

92154A

BOLT,FLANGED,10X70

92154-1695

$11.77

92200

WASHER,6.2X15X1.2

92200-1762

$1.19

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

120

BOLT-SOCKET,6X28

120CB0628

$2.17

120A

BOLT-SOCKET,8X16

120CB0816

$4.45
