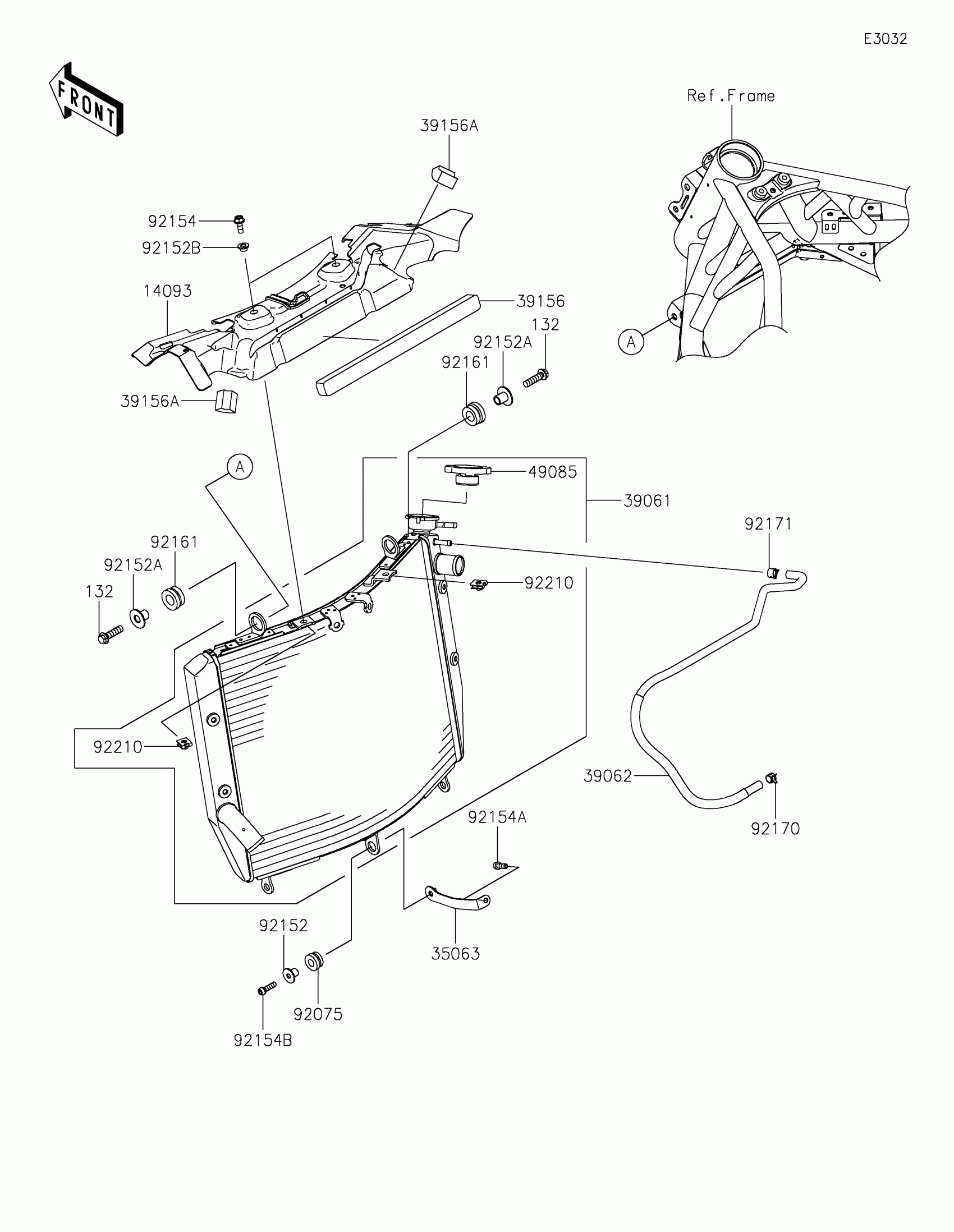

Kawasaki NINJA H2®R ABS Radiator Diagram

Description

Price

14093

COVER,HEAT

14093-0158

$56.16

35063

STAY,RADIATOR

35063-0997

$11.93

39061

RADIATOR-ASSY

39061-0698

$1,119.64

39062

HOSE-COOLING,AIR BLEED

39062-0688

$22.80

39156

PAD,20X285X15

39156-1840

$3.96

39156A

PAD,27X27X15

39156-1841

$1.02

49085

CAP-ASSY-PRESSURE

49085-0006

$50.52

92075

DAMPER,RUBBER

92075-1123

$5.00

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92152A

COLLAR

92152-0439

$3.90

92152B

COLLAR

92152-2111

$5.98

92154

BOLT,FLANGED,6X16

92154-0887

$1.63

92154A

BOLT,SOCKET,6X16

92154-1454

$1.19

92154B

BOLT,SOCKET,6X22

92154-1456

$1.48

92161

DAMPER

92161-0304

$2.97

92170

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0719

$2.15

92210

NUT

92210-1323

$4.18

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$3.90
