Description

Price

11061

GASKET

11061-0107

$2.58

12046

SPROCKET,OIL PUMP,38T

12046-0094

$59.62

12053

GUIDE-CHAIN

12053-0218

$18.26

13107

SHAFT,RH

13107-0809

$96.85

13107A

SHAFT,LH

13107-0810

$66.25

14091

COVER,VALVE

14091-0497

$5.60

16097

FILTER-ASSY-OIL

16097-0009

$21.76

16130

VALVE-ASSY-RELIEF

16130-0005

$45.75

16142

COVER-PUMP,WATER

16142-0733

$73.50

16154

ROTOR-PUMP,OIL

16154-0723

$79.27

16160

BODY,WATER PUMP

16160-0786

$209.28

21053

SPROCKET-ASSY,PUMP DRIVE,29T

21053-0007

$116.30

32033

PIPE,OIL FILTER

32033-1535

$12.96

49063

SEAL-MECHANICAL

49063-1055

$20.06

49065

FILTER-OIL

49065-0037

$48.26

59256

IMPELLER

59256-0011

$30.64

92002

BOLT,6X22

92002-1154

$4.69

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92043

PIN,5X21.8

92043-1518

$2.78

92049

SEAL-OIL

92049-0778

$28.98

92055

RING-O,WATER PUMP

92055-0208

$9.17

92055A

RING-O,68.2X2.4

92055-1338

$5.52

92055B

RING-O,OIL FILTER

92055-1503

$9.51

92057

CHAIN,92RH2005-76M

92057-0635

$28.88

92152

COLLAR

92152-1935

$45.64

92154

BOLT,FLANGED,6X22

92154-0387

$2.32

92154A

BOLT,SOCKET,6X12

92154-1453

$1.19

92154B

BOLT,SOCKET,6X25

92154-1457

$1.48

92154C

BOLT,SOCKET,6X40

92154-1459

$1.97

92154D

BOLT

92154-1651

$3.54

92200

WASHER,13X24X2

92200-0451

$2.97

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92

551

PIN-DOWEL,4X8

551A0408

$0.78

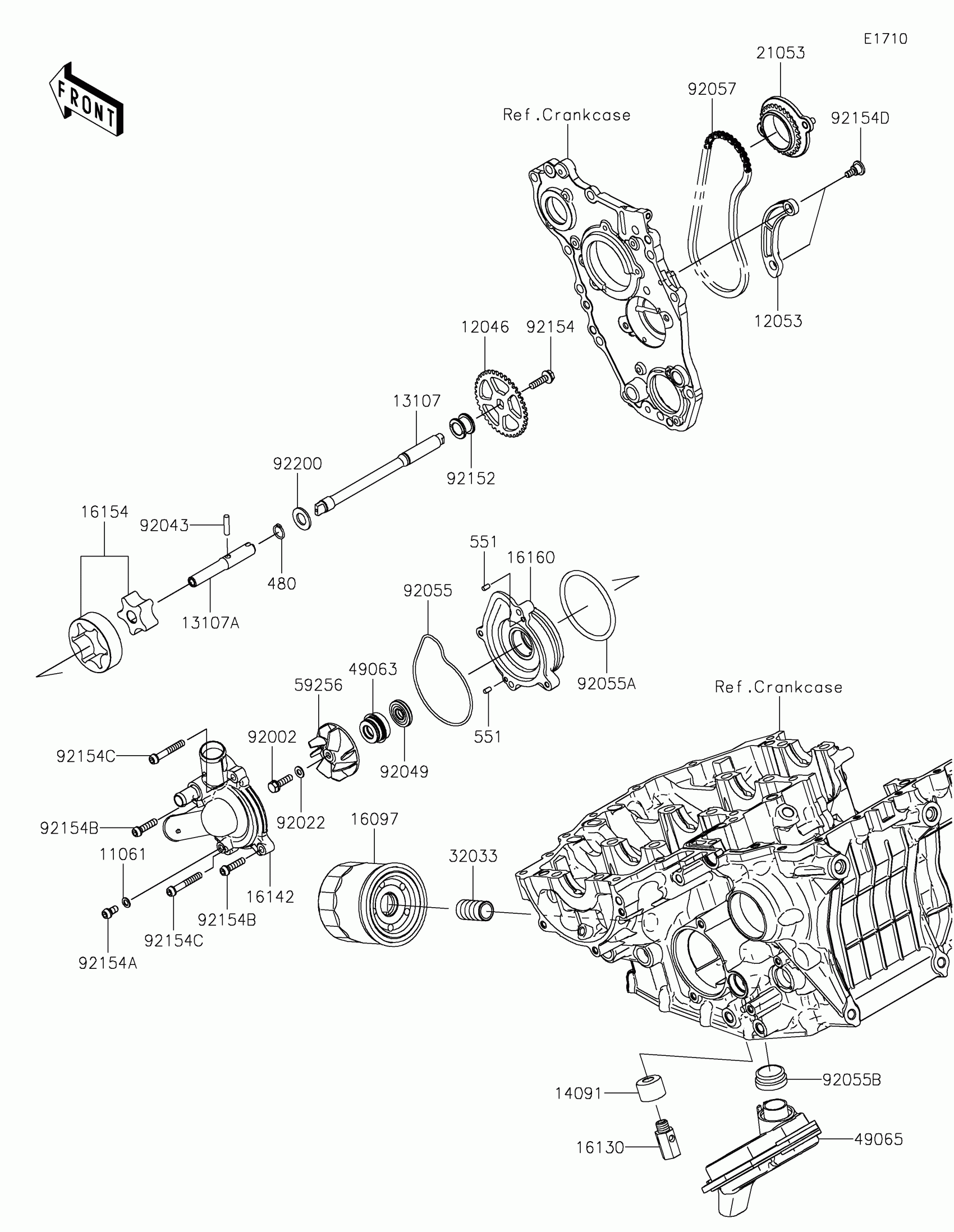

Kawasaki NINJA H2®R ABS Oil Pump/Oil Filter Diagram
