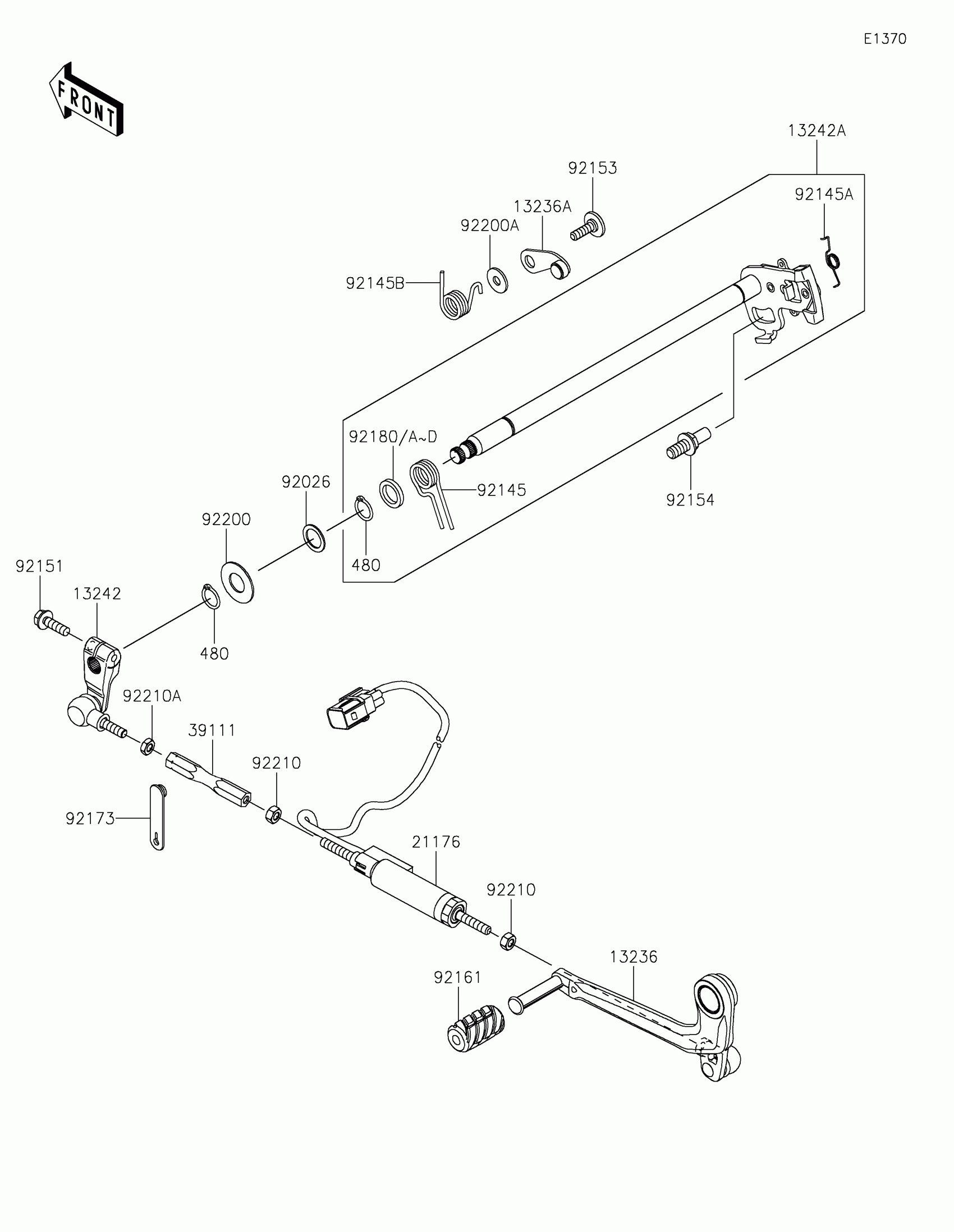

Kawasaki NINJA H2®R ABS Gear Change Mechanism Diagram

Description

Price

13236

LEVER-COMP,CHANGE,PEDAL

13236-0768

$220.11

13236A

LEVER-COMP,POSITION

13236-0785

$22.27

13242

LEVER-ASSY-CHANGE

13242-0121

$59.96

13242A

LEVER-ASSY-CHANGE

13242-0170

$117.02

21176

SENSOR,QUICK SHIFTER

21176-0909

$226.15

39111

ROD-TIE

39111-0346

$48.03

92026

SPACER,14X20X1.0

92026-1534

$4.31

92145

SPRING,RETURN

92145-0415

$11.82

92145A

SPRING

92145-1663

$10.62

92145B

SPRING,POSITION LEVER

92145-1664

$11.40

92151

BOLT,FLANGED,6X20

92151-1226

$2.46

92153

BOLT,6X20

92153-1505

$7.75

92154

BOLT,RETURN SPRING

92154-1838

$9.07

92161

DAMPER

92161-1769

$11.51

92173

CLAMP

92173-2198

$1.48

92180

SHIM,T=2.6

92180-0963

Unavailable

92180A

SHIM,T=2.8

92180-0964

Unavailable

92180B

SHIM,T=3.0

92180-0965

$29.22

92180C

SHIM,T=3.2

92180-0966

Unavailable

92180D

SHIM,T=3.4

92180-0967

Unavailable

92200

WASHER

92200-0265

$2.61

92200A

WASHER,6.5X18X1.6

92200-0996

$8.05

92210

NUT,6MM

92210-1100

$2.34

92210A

NUT,LEFT HANDED,6MM

92210-1101

$1.86

480

CIRCLIP-TYPE-C,14MM

480J1400

$5.00
